Focus Cr

Name: Focus CR: Focus Cr Fixed Height With Adjustable Handle Backrest
Manufacturer: Ki Mobility

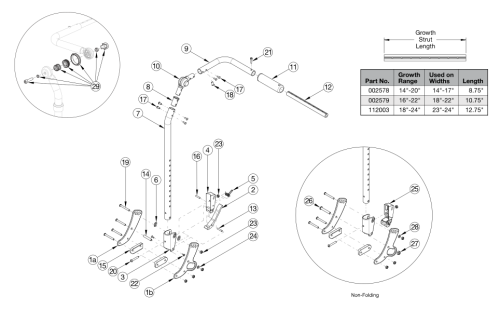

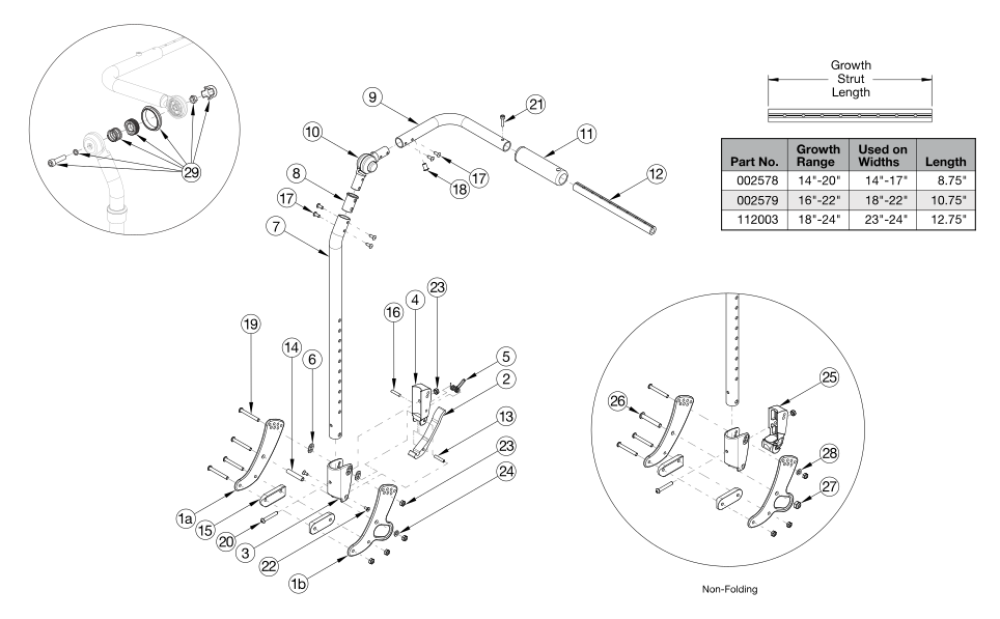

Focus Cr Fixed Height With Adjustable Handle Backrest parts diagram
(Click on image to enlarge)

If chair was invoiced prior to 12/18/23, an upper back tube assembly is required for both sides. If chair was invoiced after to 12/18/23, parts 7-10 and 17 shown in the diagram above can now be purchased individually Used on chairs with serial numbers prior to FCR0026599 and FCHD002333, unless a foot tilt or power tilt is present. If foot tilt or power tilt is present, this design effective starting with serial numbers FCR0033747 and FCHD002467. If changing from another style backrest or changing back cane height and the hand tilt is present, a new Hand Tilt Cable/Trigger Kit may be required. If retrofitting from a foot tilt or power tilt to hand tilt and serial number is prior to FCR0033747 and FCHD002467, new back cane assemblies are required in addition to the hand tilt mechanism. If changing from another style and Drum Brake present, Brake Lever may be needed
Pos. Part # Description Price UOM Buy
1a, 14, 15, 19, 23, 24 502675 Backrest Hardware Assembly, Single Side, Std Focus
$214.13
EA
1a, 1b, 14, 15, 19, 23, 24 502676 Backrest Hardware Assembly, Single Side, Transit Focus
$257.15
EA
1a, 15, 19, 23, 26 - 28 503102 Backrest Hardware Assembly, Single Side, Std Non-Folding Focus
$214.94
EA
1a, 1b, 15, 19, 23, 26 - 28 503103 Backrest Hardware Assembly, Single Side, Transit Non-Folding Focus
$257.98
EA
7a, 8, 9b, 10, 11, 17, 18 506815 Backpost Assembly Fixed Height w/Adjustable Handle, Short, Left Focus
$303.06
EA
7a, 8, 9a, 10, 11, 17, 18 506816 Backpost Assembly Fixed Height w/Adjustable Handle, Short, Right Focus
$303.06
EA
7b, 8, 9b, 10, 11, 17, 18 506817 Backpost Assembly Fixed Height w/Adjustable Handle, Tall, Left Focus
$304.23
EA
7b, 8, 9a, 10, 11, 17, 18 506818 Backpost Assembly Fixed Height w/Adjustable Handle, Tall, Right Focus
$304.23
EA
1a, 2 - 6, 7a, 8, 9b, 10, 11, 13 - 20, 22 - 24 506742 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short with Hardware, Left Focus
$573.78
EA
1a, 2 - 6, 7a, 8, 9a, 10, 11, 13 - 20, 22 - 24 506743 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short with Hardware, Right Focus
$573.78
EA
1a, 2 - 6, 7b, 8, 9b, 10, 11, 13 - 20, 22 - 24 506744 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall with Hardware, Left Focus
$574.94
EA
1a, 2 - 6, 7b, 8, 9a, 10, 11, 13 - 20, 22 - 24 506745 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall with Hardware, Right Focus
$574.94
EA
1a, 3, 7a, 8, 9b, 10, 11, 15, 17 - 20, 23, 25 - 28 506746 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short with Hardware, Non-Folding Left Focus
$562.65
EA
1a, 3, 7a, 8, 9a, 10, 11, 15, 17 - 20, 23, 25 - 28 506747 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short with Hardware, Non-Folding Right Focus
$562.65
EA
1a, 3, 7b, 8, 9b, 10, 11, 15, 17 - 20, 23, 25 - 28 506748 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall with Hardware, Non-Folding Left Focus
$563.83
EA
1a, 3, 7b, 8, 9a, 10, 11, 15, 17 - 20, 23, 25 - 28 506749 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall with Hardware, Non-Folding Right Focus
$563.83
EA
2, 3 - 6, 7a, 8, 9b, 10, 11, 13, 16 - 18, 20, 22, 23 506750 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short, Left Focus
$362.51
EA
2, 3 - 6, 7a, 8, 9a, 10, 11, 13, 16 - 18, 20, 22, 23 506751 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short, Right Focus
$362.51
EA
2, 3 - 6, 7b, 8, 9b, 10, 11, 13, 16 - 18, 20, 22, 23 506752 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall, Left Focus
$363.67
EA
2, 3 - 6, 7b, 8, 9a, 10, 11, 13, 16 - 18, 20, 22, 23 506753 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall, Right Focus
$363.67
EA
3, 7a, 8, 9b, 10, 11, 17, 18, 20, 23, 25 506754 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short, Non-Folding Left Focus
$352.24
EA
3, 7a, 8, 9a, 10, 11, 17, 18, 20, 23, 25 506755 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Short, Non-Folding Right Focus
$352.24
EA
3, 7b, 8, 9b, 10, 11, 17, 18, 20, 23, 25 506756 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall, Non-Folding Left Focus
$353.40
EA
3, 7b, 8, 9a, 10, 11, 17, 18, 20, 23, 25 506757 Back Assembly w/ Latch Insert, Fixed Height w/ Adjustable Handle Tall, Non-Folding Right Focus
$353.40
EA
2 - 6, 13, 16, 20, 22, 23 114490 Lower Folding Backrest Latch Assembly, Fixed Height w/ Adjustable Handle, Focus / CR45
$47.01
EA
3, 20, 23, 25 125106 Lower Non-Folding Backrest Latch Assembly, Fixed Height w/ Adjustable Handle, Focus / CR45
$41.14
EA
9b, 11, 17, 18, 21 122918 Push Handle Tube w/ Grip and Hardware, Left
$27.20
EA
9a, 11, 17, 18, 21 122920 Push Handle Tube w/ Grip and Hardware, Right
$27.20
EA
1a 001071 Back Plate Std TILT- Quantity of 4 used with non-transit. Quantity of 2 used with transit.
$96.79
1b 001421 Back Plate Transit Inner TILT- Quantity of 2 used with transit.
$139.83
EA
2 001893 Latch Lever, Backrest
$15.24
EA
3, 6 503834 Cover Plate, Latch Insert Kit
$28.93
EA
4 001895 Latch Insert, Folding Backrest
$7.54
EA
5 001896 Spring, Backrest Latch
$0.61
EA
6 001897 Washer, Dual, PSA
$2.39
EA
7a 003495 Fixed Height Back Post for Adjustable Handle Short- Used on chairs starting 12/18/23
$28.56
EA
7b 003496 Fixed Height Back Post for Adjustable Handle Tall- Used on chairs starting 12/18/23
$29.58
EA
8 001266 Bushing .832 OD x .720 ID- Used on chairs starting 12/18/23
$0.87
EA
10 116066 Locking Hinge Assembly- Used on chairs starting 12/18/23
$31.09
EA
12a 002578 Growth Strut, Stroller, Short
$32.07
EA
12b 002579 Growth Strut, Stroller, Long
$32.14
EA
12c 112003 Growth Strut, Stroller, Extra Long
$34.85
EA
12a, 21 503107 Growth Strut Assembly Short, Focus/Flip- Used on chairs 14"-17" wide
$29.85
EA
12b, 21 503108 Growth Strut Assembly Long, Flip/Focus- Used on chairs 18"-22" wide
$32.60
EA
12c, 21 114289 Growth Strut Assembly Extra Long, Focus- Used on chairs 23"-24" wide
$36.06
EA
13 002513 Threaded Barrel, 5mm OD x M4
$2.21
EA
14 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.48
EA
15 002594 Saddle, Dual, 1" OD X 1.75 SP
$3.50
16 102694 Dowel Pin, M5 X 24, Blk Zn
$1.81
EA
17 100669 M5 x 10 BTN SHCS BLKZC w/Patch- Used on chairs starting 12/18/23
$1.81
EA
19 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.81
EA
20 100797 M6 x 40 BHCS BLK ZC
$1.19
EA
21 101843 M5 x 20 SHCS Blk Zn
$1.02
EA
22 101818 M4 x 10 FHCS BLKZC w/Patch
$1.19
EA
23 100658 M6 Nylock Nut Blk Zn
$1.19
EA
24 101861 Nylon Washer 5/16 x 1/2 x .03
$0.61
EA
25 002035 Insert, Backrest, Non-Folding
$16.42
EA
26 101815 M8 x 50 BHCS Blk Zn
$4.20
EA
27 100659 M8 Nylock Nut Blk Zn
$1.19
EA
28 100746 M6 Flat Washer Blk Zn
$1.81
EA
29 110524 Locking Hinge Button Assembly with Instruction- This kit contains the contents inside callout # 10. This assembly may not be compatible if chair was invoiced prior to 6/22/16
$41.93
EA
