Focus Cr

Name: Focus CR: (discontinued 1) Focus Cr Height Adjustable Backrest
Manufacturer: Ki Mobility

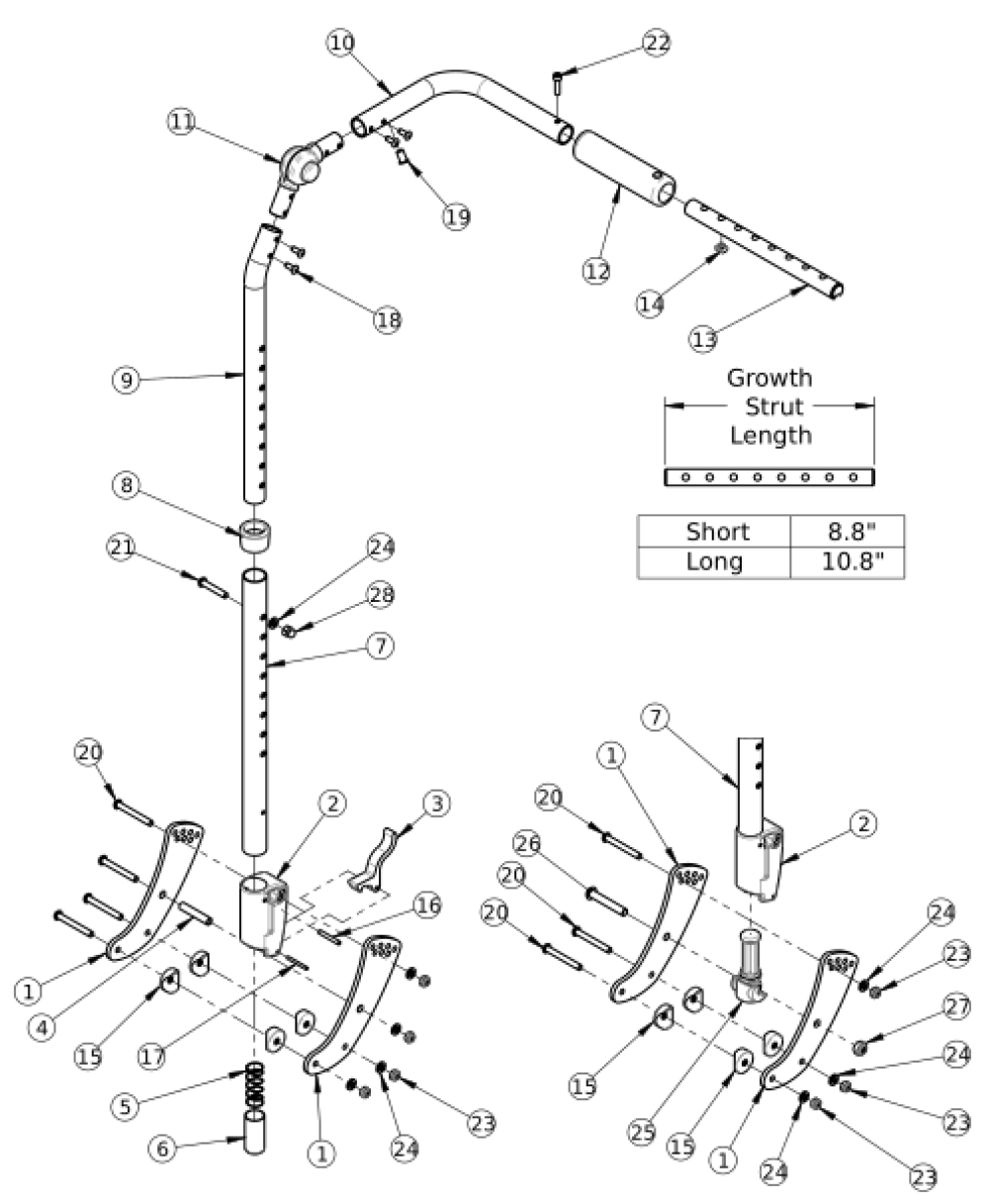

(discontinued 1) Focus Cr Height Adjustable Backrest parts diagram
(Click on image to enlarge)

This Focus CR Height Adjustable Backrest was effective prior to October 2015.
Pos. Part # Description Price UOM Buy
1, 4, 15, 20, 23, 24 501094 Backrest Hardware Kit Std Focus N/A EA Please Call
1, 15, 20, 23, 24, 26, 27 501406 Backrest Hardware Kit, Std Non Folding, Pair Focus N/A EA Please Call
9a, 10a, 11, 12, 18, 19 501086 Back Assembly, Upper Tube, Height Adjustable, Right Focus N/A EA Please Call
9b, 10b, 11, 12, 18, 19 501087 Back Assembly, Upper Tube, Height Adjustable, Left Focus N/A EA Please Call
1 001071 Back Plate Std TILT
$94.89
4 001075 Stop Pin Backrest Tilt
$7.55
EA
8 001083 Bushing Height Adjustable Back Tilt
$7.81
EA
13a 001099 Growth Strut, Height Adjustable Back, Short 14-20" Width Tilt N/A EA Please Call
13b 001100 Growth Strut, Height Adjustable Back, Long 18-22" Width Tilt N/A EA Please Call
15 000055 Saddle 1"
$1.77
EA
20 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.77
EA
21 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
22 101843 M5 x 20 SHCS Blk Zn
$0.60
EA
23 100658 M6 Nylock Nut Blk Zn
$1.17
EA
24 100746 M6 Flat Washer Blk Zn
$1.77
EA
26 101815 M8 x 50 BHCS Blk Zn
$4.12
EA
27 100659 M8 Nylock Nut Blk Zn
$1.17
EA
28 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
