Name: Ethos: Ethos Rear Base Frame
Manufacturer: Ki Mobility

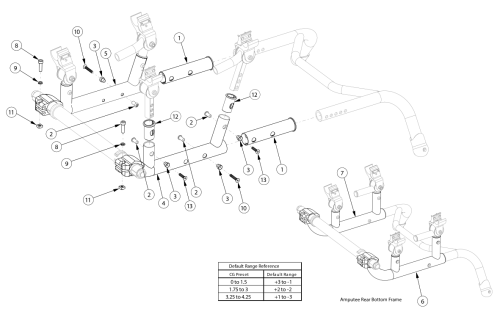

Ethos Rear Base Frame parts diagram
(Click on image to enlarge)

Replacement Rear Base Frames can be quoted but must be ordered through Customer Service
Pos.Part #DescriptionPriceUOMBuy
1 - 4, 10, 12, 13RFETRRReplacement Ethos Rear Base Frame, Right
$80.33
EA
1 - 3, 5, 10, 12, 13RFETLRReplacement Ethos Rear Base Frame, Left
$80.33
EA
1 - 5, 10, 12, 13RFETPRRReplacement Ethos Rear Base Frame, Left and Right
$160.65
EA
1 - 3, 6, 10, 12, 13RFETRRAMPReplacement Ethos Amputee Rear Base Frame, Right
$80.33
EA
1 - 3, 7, 10, 12, 13RFETLRAMPReplacement Ethos Amputee Rear Base Frame, Left
$80.33
EA
1 - 3, 6, 7, 10, 12, 13RFETPRRAMPReplacement Ethos Amputee Rear Base Frame, Left and Right
$160.65
EA
1a003868Base Frame Bushing, Black
$2.14
1b107711_ _ _Base Frame Bushing, Highlight Color
$2.00
EA
2003869M5 Barrel Nut
$19.12
3003870Barrel, M5 FHCS
$9.10
8101845M6 x 22 SHCS Blk Zn
$1.66
9102810M6 Lockwasher, Hi-Collar, ZC
$0.56
EA
10103321M5 x 30 FHCS Blk Zc
$1.07
11103505M6 x 1.0 Square Nut Blk Zc
$1.07
12a003867Vertical Upright Bushing With Flat, Black
$2.14
12b108060_ _ _Vertical Upright Bushing, Highlight Color
$2.00
EA
13103322M5 x 20 FHCS Blk Zc
$1.07
