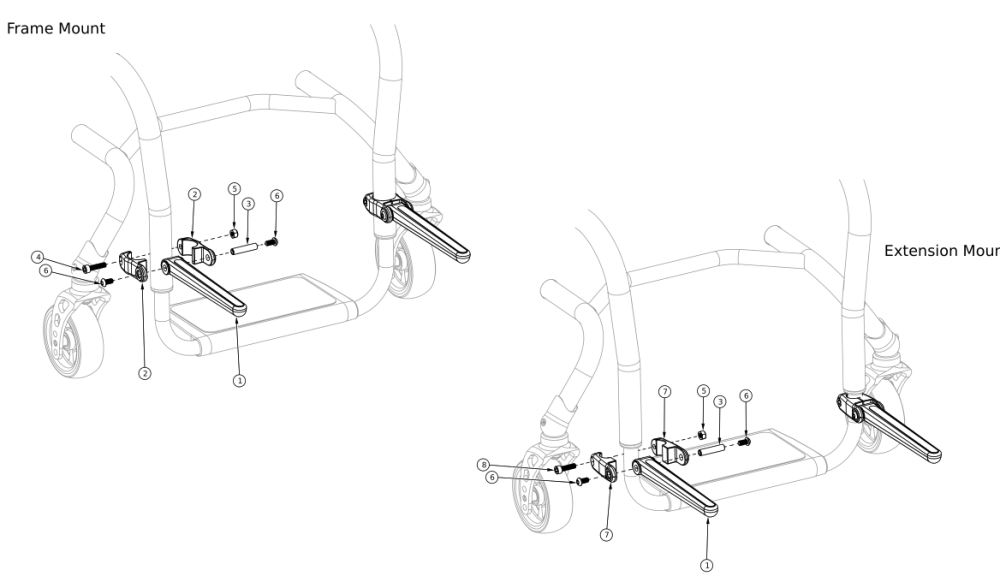

Pos. | Part # | Description | Remarks | Price | Buy |
---|---|---|---|---|---|
1 - 8 | 504466 | Luggage Carrier Kit, Clik/Ethos | $85.00 | ||
1 | 003430 | Luggage Carrier Fork Assembly () | $28.84 | ||
2 | 003411 | Luggage Carrier Clamp 1.125 ()- Used to mount Luggage Carrier to the frame | Used to mount Luggage Carrier to the frame | $8.24 | |
3 | 003413 | Luggage Carrier Barrel () | $8.24 | ||
4 | 100780 | M6 x 25 SHCS ZC ()- Only used when Luggage Carrier is mounted to the frame | Only used when Luggage Carrier is mounted to the frame | $2.06 | |
5 | 100658 | M6 Nylock Nut Blk Zn () | $1.03 | ||
6 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch () | $1.55 | ||
7 | 003409 | Luggage Carrier Clamp .75 ()- Used to mount Luggage Carrier to the footrest tubes/extensions | Used to mount Luggage Carrier to the footrest tubes/extensions | $8.24 | |
8 | 101845 | M6 x 22 SHCS Blk Zn ()- Only used when Luggage Carrier is mounted to the footrest tubes/extensions | Only used when Luggage Carrier is mounted to the footrest tubes/extensions | $1.55 |
