Name: Ethos: Ethos Backrest Mount And Hardware
Manufacturer: Ki Mobility

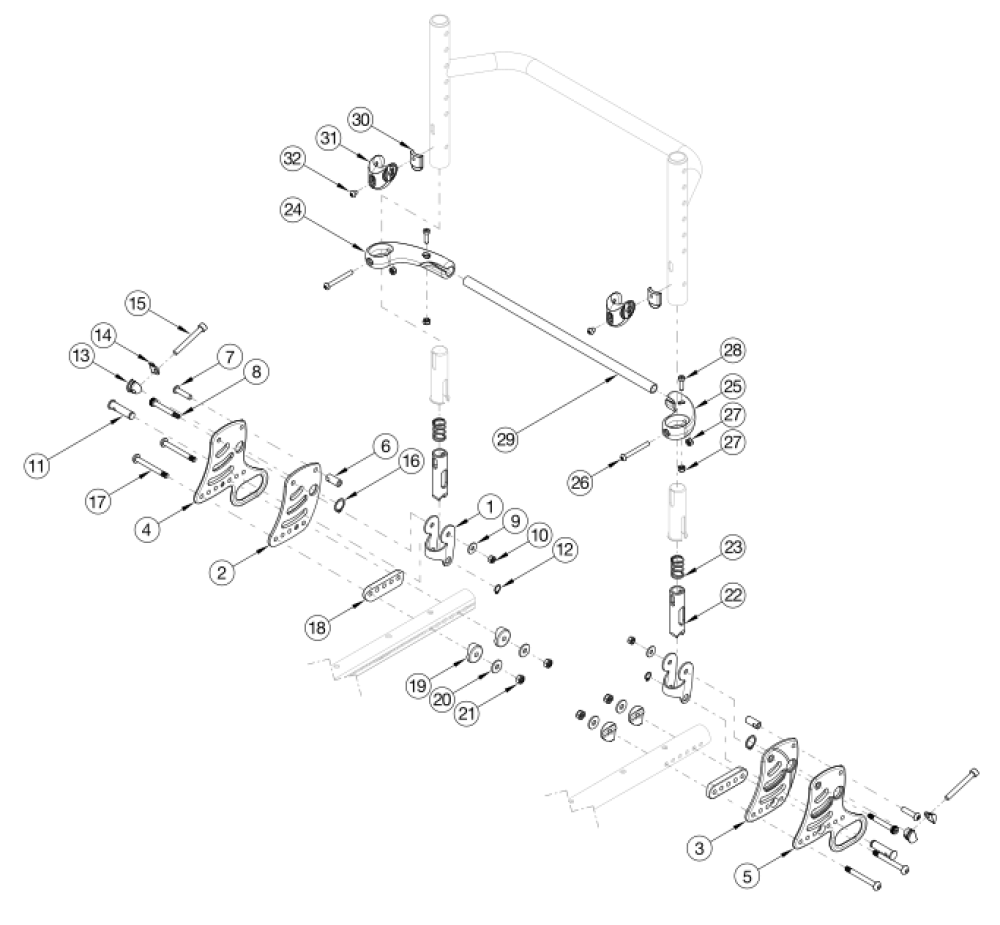

Ethos Backrest Mount And Hardware parts diagram
(Click on image to enlarge)

Color Anodizing Reference  |  Color Codes
Pos.Part #DescriptionPriceUOMBuy
1a, 1b, 2, 3a, 4a, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b109680Ethos Backrest Bracket Mount Kit, Black Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly.
$426.38
EA
1a, 1b, 2, 3b, 4b, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b109681_ _ _Ethos Backrest Bracket Mount Kit, Color Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly.
$422.42
EA
1a, 1b, 2, 3c, 4c, 5, 6, 9a, 9b, 10a, 10b, 11 - 23a, 23b109682Ethos Transit Backrest Bracket Mount Kit, Black Anodized- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly.
$363.22
EA
1a000055Saddle 1"- If swing away arms are not present, use quantity 4. Use quantity 2 if swing away arms are present.
$1.66
EA
1b004117Saddle M6 ID x 1 OD x .25 T- If swing away arms are present, use quantity 2 of 000055 and quantity 2 of 004117
$0.49
EA
2001762Arc Adjustment Cam
$4.18
EA
3a003711Back Bracket Right, Black Anodized
$59.64
EA
3b003711_ _ _Color Anodized Back Bracket, RightN/AEAPlease Call
4a003712Back Bracket Left, Black Anodized
$59.64
EA
4b003712_ _ _Color Anodized Back Bracket, LeftN/AEAPlease Call
4c109296Back Bracket with Transit, Black, Rigid
$28.06
EA
5003713Strike Hex
$5.51
6003734Pivot Assembly
$61.29
6, 21108107Backrest Pivot Replacement Kit w/Instruction (PAIR)
$122.59
EA
7a003739Backrest Release Bar 12" Wide, Black Anodized
$22.06
EA
7b003740Backrest Release Bar 13" Wide, Black Anodized
$22.06
EA
7c003741Backrest Release Bar 14" Wide, Black Anodized
$22.06
EA
7d003742Backrest Release Bar 15" Wide, Black Anodized
$22.06
EA
7e003743Backrest Release Bar 16" Wide, Black Anodized
$22.06
EA
7f003744Backrest Release Bar 17" Wide, Black Anodized
$22.06
EA
7g003745Backrest Release Bar 18" Wide, Black Anodized
$22.06
EA
7h003746Backrest Release Bar 19" Wide, Black Anodized
$22.06
EA
7i003747Backrest Release Bar 20" Wide, Black Anodized
$22.06
EA
7j109642_ _ _Ethos Backrest Release Bar 12" Wide, Painted
$50.00
EA
7k109643_ _ _Ethos Backrest Release Bar 13" Wide, Painted
$50.00
EA
7l109644_ _ _Ethos Backrest Release Bar 14" Wide, Painted
$50.00
EA
7m109645_ _ _Ethos Backrest Release Bar 15" Wide, Painted
$50.00
EA
7n109646_ _ _Ethos Backrest Release Bar 16" Wide, Painted
$50.00
EA
7o109647_ _ _Ethos Backrest Release Bar 17" Wide, Painted
$50.00
EA
7p109648_ _ _Ethos Backrest Release Bar 18" Wide, Painted
$50.00
EA
7q109649_ _ _Ethos Backrest Release Bar 19" Wide, Painted
$50.00
EA
7r109650_ _ _Ethos Backrest Release Bar 20" Wide, Painted
$50.00
EA
7a, 8107190Backrest Release Bar Kit, 12" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7b, 8107191Backrest Release Bar Kit, 13" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7c, 8107192Backrest Release Bar Kit, 14" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7d, 8107193Backrest Release Bar Kit, 15" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7e, 8107194Backrest Release Bar Kit, 16" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7f, 8107195Backrest Release Bar Kit, 17" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7g, 8107196Backrest Release Bar Kit, 18" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7h, 8107197Backrest Release Bar Kit, 19" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7i, 8107198Backrest Release Bar Kit, 20" Wide, Black Anodized with Backrest Release Bar Ends
$30.11
EA
7j, 8109654_ _ _Ethos Backrest Release Bar Kit 12" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7k, 8109655_ _ _Ethos Backrest Release Bar Kit 13" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7l, 8109656_ _ _Ethos Backrest Release Bar Kit 14" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7m, 8109657_ _ _Ethos Backrest Release Bar Kit 15" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7n, 8109658_ _ _Ethos Backrest Release Bar Kit 16" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7o, 8109659_ _ _Ethos Backrest Release Bar Kit 17" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7p, 8109660_ _ _Ethos Backrest Release Bar Kit 18" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7q, 8109661_ _ _Ethos Backrest Release Bar Kit 19" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
7r, 8109662_ _ _Ethos Backrest Release Bar Kit 20" Wide, Painted with Backrest Release Bar Ends
$55.72
EA
8003750Backrest Release Bar End
$3.07
9a003846M6 x 50 BHCS, Custom, Blk Zc- Used if Swing Away Arms are not present
$15.35
9b003232M6 x 55 BHCS Blk Zc- Used if Swing Away Arms are present
$9.39
EA
10a003848Back Bracket Saddle 1 1/8"- Used if Swing Away Arms are not present
$1.13
10b004116Saddle, Swing Away Arm, 1 1/8" Tube- Used if Swing Away Arms are present
$1.19
EA
11003849Saddle For Dimple 1 1/8"
$0.46
12100658M6 Nylock Nut Blk Zn
$1.10
EA
13100746M6 Flat Washer Blk Zn
$1.66
EA
14101593M6 x 25 BTN SHCS BLKZC
$1.66
EA
15101835M6 Lock Washer Blk Zn
$0.56
EA
16101853M6 Washer Blk Zn
$0.56
EA
17102614M5 Split Lock Washer BLK ZC
$0.56
EA
18102621M5 x 8 BHCS BLK ZC
$0.56
EA
19103022M5 Washer, Blk Zn
$0.56
EA
20103227M6 x 30 Long Shoulder BHCS BZ
$4.41
21103279#8-16 Tri-Lobular Plastic Screw BZ
$0.56
22103283M5 Top Lock Nut BZ
$0.56
23a103284M6 x 35 Shoulder Bolt BZ- Used if Swing Away Arms are not present
$4.97
23b103397M6 x 40 Shoulder Screw BLK ZC- Used if Swing Away Arms are present
$2.68
EA
