GoGo Endurance - S54LXLIT - SK8
- 1. Battery Box
- 2. Charger Assy
- 3. Console Electronics Assy's
- 4. Controller Electronics Assy's
- 5. Decal Packages
- 6. Drive Motor Assy
- 7. Frame Assy's
- 8. Front Basket
- 9. Owner's Package
- 10. Seat Assy's
- 11. Shroud Assy's
- 12. Wheel Assy's
Gogo Endurance - S54lxlit - Sk8

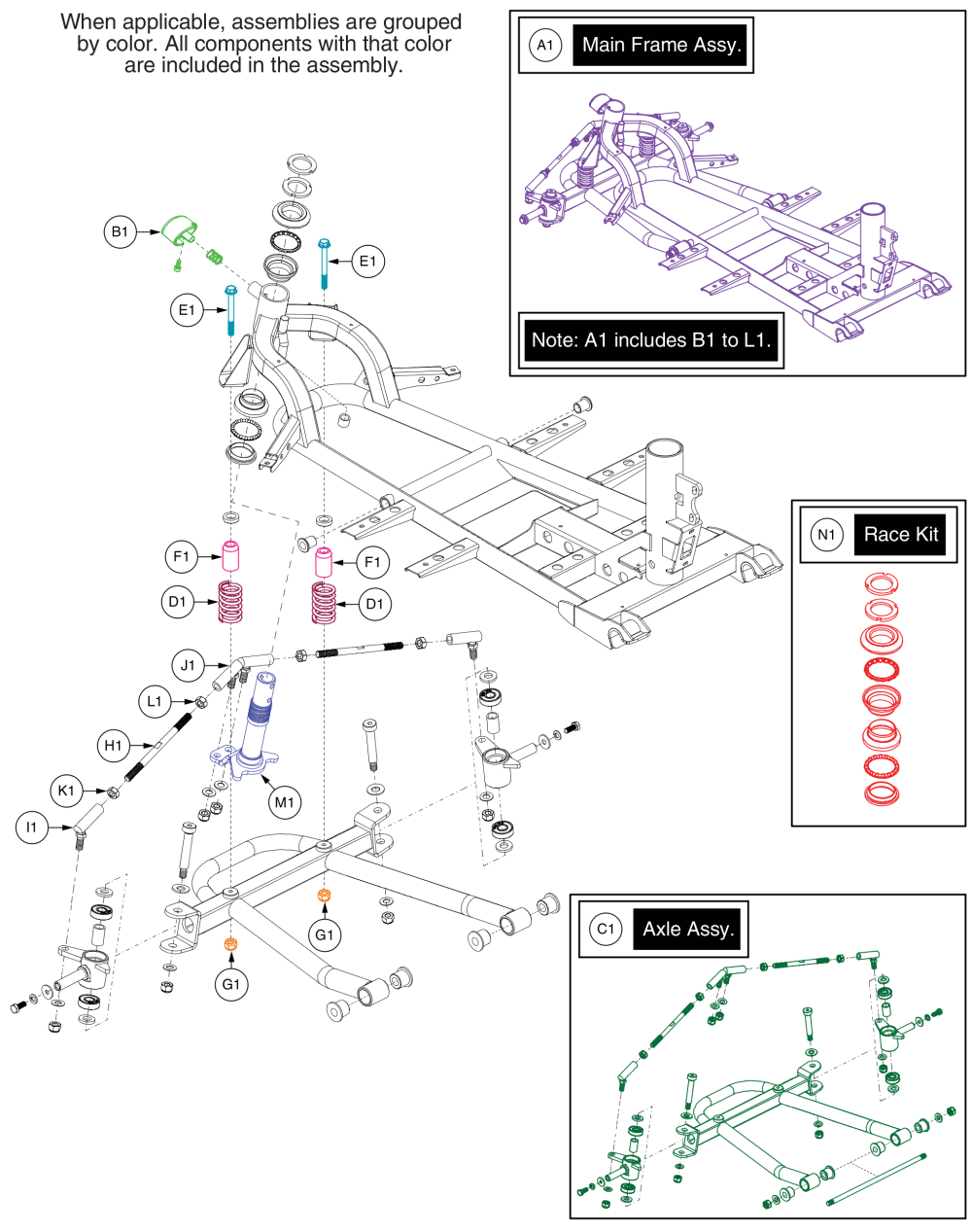

Name: GoGo Endurance - S54LXLIT - SK8: Front Frame W/ Axle,bumpers& Bearings, 4 Wheel Gogo Endurance
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | MEC132910 | FRAME, ASSY, FRONT, 4 WHEEL, S54LX |
$446.50
|
EA |
|
|
| B1 | MEC1703628 | TILLER LOCK KNOB ASSEMBLY |
$11.60
|
EA |
|
|
| C1 | MEC132911 | AXLE, ASSY, FRONT, 4 WHEEL, S54LX |
$212.40
|
EA |
|
|
| D1 | DWR9961B022 | SPRING, COMPRESSION, YELLOW, 20.88 X 27.89 X 43.6, SC610, B-9961-022 |
$8.40
|
EA |
|
|
| E1 | HDW132874 | SCREW, HHCS, BLACK ZINC, M6-1.0 X 60MM, FLANGED, CLASS 10.9, PARTIAL THREAD |
$3.20
|
EA |
|
|
| F1 | MEC132870 | FRONT SUSPENSION SPRING ISOLATOR |
$7.10
|
EA |
|
|
| G1 | NUTSTD1037 | NUT, HEX, BLACK ZINC, M6-1.0 |
$3.20
|
EA |
|
|
| H1 | MEC132678 | TIE ROD |
$3.80
|
EA |
|
|
| I1 | INDPART2333 | BALL JOINT, M8-1.25, MACHINED, LEFT, BLACK ZINC |
$37.00
|
EA |
|
|
| J1 | INDPART2334 | BALL JOINT, M8-1.25, MACHINED, RIGHT, BLACK ZINC |
$37.80
|
EA |
|
|
| K1 | NUTSTD1043 | NUT, LH, BLACK ZINC, M8-1.25 |
$3.20
|
EA |
|
|
| L1 | NUTSTD1044 | NUT, RH, BLACK ZINC, M8-1.25 |
$3.20
|
EA |
|
|
| M1 | MEC132909 | STEERING STEM, ASSY, 4 WHEEL, S54LX |
$36.50
|
EA |
|
|
| N1 | HDWASMB1000 | KIT, BEARING/RACE |
$41.10
|
EA |
|
