Name: Rogue2: Rogue2 Backrest Mount And Hardware
Manufacturer: Ki Mobility

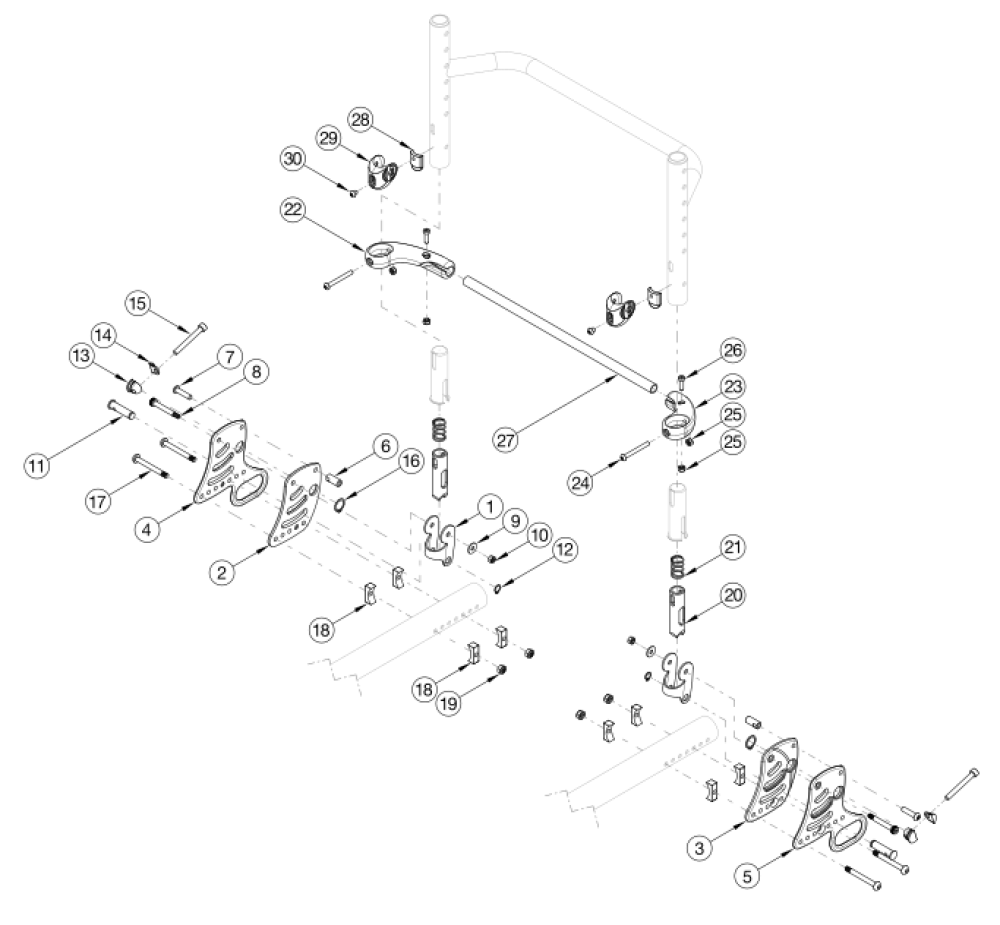

Rogue2 Backrest Mount And Hardware parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 2a, 3a, 6 - 21, 28 - 30 117288 Back Plate and Hardware, Non-Transit, Black, Rogue, PAIR
$529.79
EA
1, 2a, 6 - 19 116894 Back Plate and Hardware, Non-Transit, Black, Right, Rogue
$226.94
EA
1, 3a, 6 - 19 116895 Back Plate and Hardware, Non-Transit, Black, Left, Rogue
$226.94
EA
1, 2b, 3b, 6 - 21, 28 - 30 117290_ _ _ Back Plate and Hardware, Non-Transit, Color Anodized/Color Accent, Rogue, PAIR N/A EA Please Call
1, 2b, 6 - 19 116916_ _ _ Back Plate and Hardware, Non Transit, Color Anodized/Color Accent, Right, Rogue N/A EA Please Call
1, 3b, 6 - 19 116917_ _ _ Back Plate and Hardware, Non Transit, Color Anodized/Color Accent, Left, Rogue N/A EA Please Call
1, 4 - 21, 28 - 30 117289 Back Plate and Hardware, Transit, Black, Rogue, PAIR
$568.63
EA
1, 4, 6 - 19 116896 Back Plate and Hardware, Transit, Black, Right, Rogue
$246.37
EA
1, 5 - 19 116897 Back Plate and Hardware, Transit, Black, Left, Rogue
$246.37
EA
1, 4 - 21, 28 - 30 117289_ _ _ Back Plate and Hardware, Transit, Color Accent, Rogue, PAIR N/A EA Please Call
1, 4, 6 - 19 116896_ _ _ Back Plate and Hardware, Transit, Color Accent, Rogue, Right N/A EA Please Call
1, 5 - 19 116897_ _ _ Back Plate and Hardware, Transit, Color Accent, Rogue, Left N/A EA Please Call
28 - 30 116876 Relax Subassembly
$12.46
EA
22, 24 - 26 116877 Release Lever with Fasteners, Right
$21.66
EA
23 - 26 116878 Release Lever with Fasteners, Left
$21.66
EA
22 - 26, 27a 116879 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 12" Wide, Black
$66.35
EA
22 - 26, 27b 116880 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 13" Wide, Black
$66.73
EA
22 - 26, 27c 116881 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 14" Wide, Black
$70.51
EA
22 - 26, 27d 116882 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 15" Wide, Black
$71.26
EA
22 - 26, 27e 116883 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 16" Wide, Black
$72.02
EA
22 - 26, 27f 116884 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 17" Wide, Black
$73.15
EA
22 - 26, 27g 116885 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 18" Wide, Black
$75.41
EA
22 - 26, 27h 116886 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 19" Wide, Black
$76.55
EA
22 - 26, 27i 116887 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 20" Wide, Black
$76.92
EA
22 - 26, 27j 117832_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 12" Wide, Painted N/A EA Please Call
22 - 26, 27k 117833_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 13" Wide, Painted N/A EA Please Call
22 - 26, 27l 117913_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 14" Wide, Painted N/A EA Please Call
22 - 26, 27m 117914_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 15" Wide, Painted N/A EA Please Call
22 - 26, 27n 117915_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 16" Wide, Painted N/A EA Please Call
22 - 26, 27o 117916_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 17" Wide, Painted N/A EA Please Call
22 - 26, 27p 117917_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 18" Wide, Painted N/A EA Please Call
22 - 26, 27q 117918_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 19" Wide, Painted N/A EA Please Call
22 - 26, 27r 117919_ _ _ Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 20" Wide, Painted N/A EA Please Call
2a 115550 Back Plate, Right, Black
$61.12
EA
2b 115550_ _ _ Color Anodized/Color Accent Back Plate, Right N/A EA Please Call
3a 115551 Back Plate, Left, Black
$61.12
EA
3b 115551_ _ _ Color Anodized/Color Accent Back Plate, Left N/A EA Please Call
4 115552 Back Plate, Transit, Right, Black
$84.57
EA
4 115552_ _ _ Color Accent Back Plate, Transit, Right N/A EA Please Call
5 115553 Back Plate, Transit, Left, Black
$84.57
EA
5 115553_ _ _ Color Accent Back Plate, Transit, Left N/A EA Please Call
6 115546 Strike, Ø.364
$10.26
EA
7 115573 M6 x 25, BHCS, CLS 10.9, NYL, BLZ
$0.46
EA
8a 103284 M6 x 35 Shoulder Bolt BZ
$5.41
EA
8b 115574 M6 x 30 BHCS, CLS 10.9, NYL, BLZ- These are required if the chair has swing away armrests
$2.06
9 103022 M5 Washer, Blk Zn
$0.61
EA
10 103283 M5 Top Lock Nut BZ
$0.61
EA
12 115570 Eternal Retaining Ring, 3/8"
$0.42
EA
15 115545 M6 x 1.0 x 50 SHCS, FT, NYL, BLZ
$5.70
16 115571 Eternal Retaining Ring, 5/8"
$1.45
EA
17a 003232 M6 x 55 BHCS Blk Zc
$10.21
EA
17b 003241 M6 x 60 BHCS P/THD Custom Blk Zc- These are required if the chair has swing away armrests
$13.20
EA
18 116329 Rigid Backrest Saddle, Narrow, 1.375"
$14.80
19 100658 M6 Nylock Nut Blk Zn
$1.19
EA
20 115539 Release Pin
$23.31
21 115547 Compression Spring, .66" OD x 1" LG
$2.50
24 000142 M5 x 45 BHCS, P/THD, BLZ
$2.33
EA
25 100657 M5 Nylock Nut Blk Zn
$0.61
EA
26 102801 M5 x 16, Low SHCS, Blk Zn
$1.81
EA
27a 115554 Backrest Actuation Bar, 12" Wide, Black
$23.03
EA
27b 115555 Backrest Actuation Bar, 13" Wide, Black
$23.42
EA
27c 115556 Backrest Actuation Bar, 14" Wide, Black
$27.18
EA
27d 115557 Backrest Actuation Bar, 15" Wide, Black
$27.94
EA
27e 115558 Backrest Actuation Bar, 16" Wide, Black
$28.69
EA
27f 115559 Backrest Actuation Bar, 17" Wide, Black
$29.82
EA
27g 115560 Backrest Actuation Bar, 18" Wide, Black
$32.09
EA
27h 115561 Backrest Actuation Bar, 19" Wide, Black
$33.23
EA
27i 115562 Backrest Actuation Bar, 20" Wide, Black
$33.60
EA
27j 117921_ _ _ Backrest Actuation Bar, 12" Wide, Painted N/A EA Please Call
27k 117922_ _ _ Backrest Actuation Bar, 13" Wide, Painted N/A EA Please Call
27l 117923_ _ _ Backrest Actuation Bar, 14" Wide, Painted N/A EA Please Call
27m 117924_ _ _ Backrest Actuation Bar, 15" Wide, Painted N/A EA Please Call
27n 117925_ _ _ Backrest Actuation Bar, 16" Wide, Painted N/A EA Please Call
27o 117926_ _ _ Backrest Actuation Bar, 17" Wide, Painted N/A EA Please Call
27p 117927_ _ _ Backrest Actuation Bar, 18" Wide, Painted N/A EA Please Call
27q 117928_ _ _ Backrest Actuation Bar, 19" Wide, Painted N/A EA Please Call
27r 117929_ _ _ Backrest Actuation Bar, 20" Wide, Painted N/A EA Please Call
28 115549 Relax Bumper
$7.25
29 115548 Relax Saddle
$4.54
30 115572 M5 x 0.8 x 6 BHCS BLZ, CLS 10.9
$0.69
