Little Wave Arc

Name: Little Wave Arc: Arc Single Hand Tilt Mechanism
Manufacturer: Ki Mobility

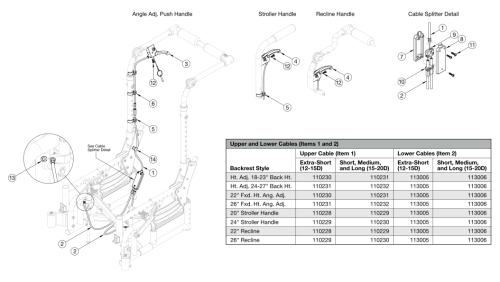

Arc Single Hand Tilt Mechanism parts diagram
(Click on image to enlarge)

Please note kits 113005 and 113006 contain two cables and two e-rings.
Pos. Part # Description Price UOM Buy
1c, 2a, 3, 5 - 14 113010 Single Hand Tilt, Height Adjustable, 18-23" Height, Extra Short Depth Range, Arc
$314.04
EA
1d, 2b, 3, 5 - 14 113011 Single Hand Tilt, Height Adjustable, 18-23" Height, Short/Med/Long Depth Range, Arc
$316.31
EA
1d, 2a, 3, 5 - 14 113012 Single Hand Tilt, Height Adjustable, 24-27" Height, Extra Short Depth Range, Arc
$314.60
EA
1e, 2b, 3, 5 - 14 113013 Single Hand Tilt, Height Adjustable, 24-27" Height, Short/Med/Long Depth Range, Arc
$316.86
EA
1c, 2a, 3, 5, 7 - 14 113014 Single Hand Tilt, Fixed Height, 22" Height, Extra Short Depth Range, Arc
$314.04
EA
1d, 2b, 3, 5, 7 - 14 113015 Single Hand Tilt, Fixed Height, 22" Height, Short/Med/Long Depth Range, Arc
$316.31
EA
1d, 2a, 3, 5, 7 - 14 113016 Single Hand Tilt, Fixed Height, 26" Height, Extra Short Depth Range, Arc
$314.60
EA
1e, 2b, 3, 5, 7 - 14 113017 Single Hand Tilt, Fixed Height, 26" Height, Short/Med/Long Depth Range, Arc
$316.86
EA
1a, 2a, 4, 5, 7 - 14 113018 Single Hand Tilt, Stroller Handle, 20" Height, Extra Short Depth Range, Arc
$312.91
EA
1b, 2b, 4, 5, 7 - 14 113019 Single Hand Tilt, Stroller Handle, 20" Height, Short/Med/Long Depth Range, Arc
$315.18
EA
1b, 2a, 4, 5, 7 - 14 113020 Single Hand Tilt, Stroller Handle, 24" Height, Extra Short Depth Range, Arc
$313.47
EA
1c, 2b, 4, 5, 7 - 14 113021 Single Hand Tilt, Stroller Handle, 24" Height, Short/Med/Long Depth Range, Arc
$315.74
EA
1a, 2a, 4, 5, 7 - 14 113022 Single Hand Tilt, Reclining, 22" Height, Extra Short Depth Range, Arc
$312.91
EA
1b, 2b, 4, 5, 7 - 14 113023 Single Hand Tilt, Reclining, 22" Height, Short/Med/Long Depth Range, Arc
$315.18
EA
1b, 2a, 4, 5, 7 - 14 113024 Single Hand Tilt, Reclining, 26" Height, Extra Short Depth Range, Arc
$313.47
EA
1c, 2b, 4, 5, 7 - 14 113025 Single Hand Tilt, Reclining, 26" Height, Short/Med/Long Depth Range, Arc
$315.74
EA
1a 110228 Cable, Splitter, Upper, Short
$62.75
EA
1b 110229 Cable, Splitter, Upper, Medium
$63.32
EA
1c 110230 Cable, Splitter, Upper, Long
$63.88
EA
1d 110231 Cable, Splitter, Upper, Extra Long
$64.45
EA
1e 110232 Cable, Splitter, Upper, Extra Extra Long
$65.01
EA
2a, 13 113005 Cable, Tilt, Split, Medium, Arc
$169.64
EA
2b, 13 113006 Cable, Tilt, Split, Long, Arc
$171.32
EA
3 002801 Lever Assembly Horizontal Tilt
$15.14
EA
4 002800 Lever Assembly Vertical Tilt
$15.14
EA
5 001117 Cable Clip 1"
$4.28
EA
6 001118 Cable Clip 7/8"
$4.28
EA
7 - 11 113009 Cable Splitter Assembly, Arc
$48.51
EA
12 100734 M5 x 16 PHMS ZC
$1.77
EA
13 102822 E-Ring, M6, YZ
$0.60
EA
14 001239 P-Clip 3/16"
$7.06
EA
