Little Wave Arc
Name: Little Wave Arc: Arc Foot Tilt Mechanism
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)

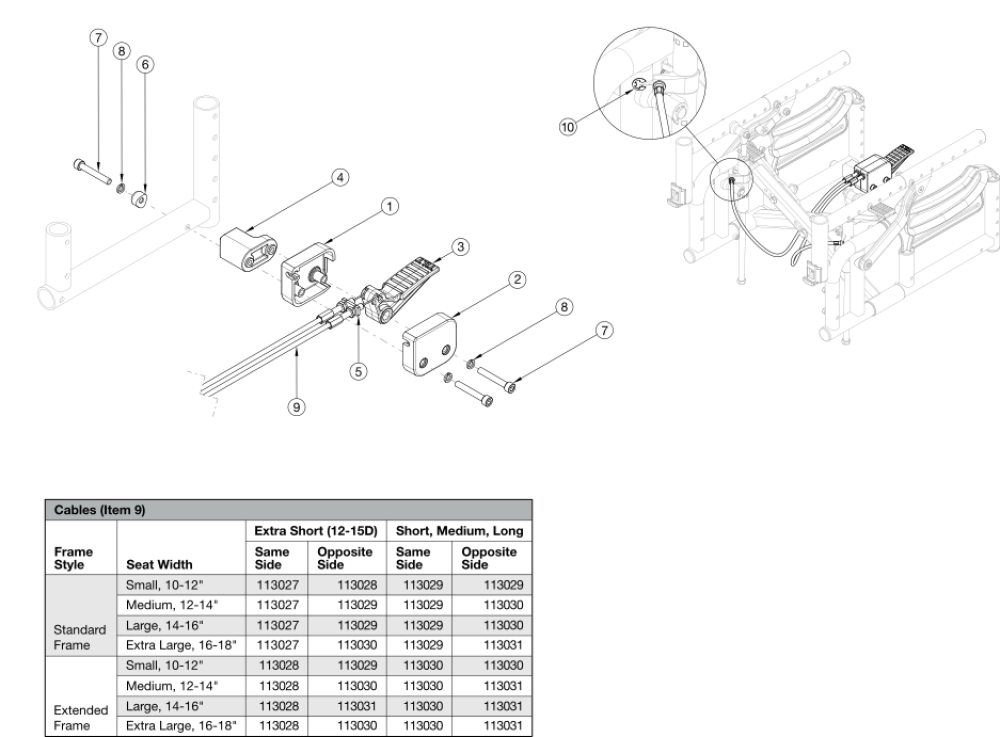

Please reference the table above to determine which cables you need for your configuration.
Cable kits contain one cable and one e-ring.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 8 | 113026 | Foot Tilt Actuator Assembly |
$74.00
|
EA |
|
|
| 9a, 10 | 113027 | Cable, Tilt, Foot, Short, Arc |
$83.96
|
EA |
|
|
| 9b, 10 | 113028 | Cable, Tilt, Foot, Medium, Arc |
$84.82
|
EA |
|
|
| 9c, 10 | 113029 | Cable, Tilt, Foot, Long, Arc |
$85.67
|
EA |
|
|
| 9d, 10 | 113030 | Cable, Tilt, Foot, XL, Arc |
$86.24
|
EA |
|
|
| 9e, 10 | 113031 | Cable, Tilt, Foot, XXL, Arc |
$86.80
|
EA |
|
|
| 10 | 102822 | E-Ring, M6, YZ |
$0.60
|
EA |
|
