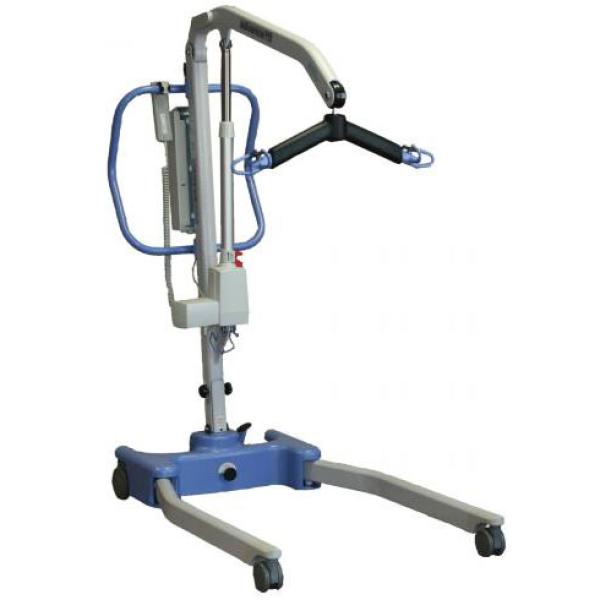

Hoyer Advance Power Patient LiftSome images may display non-standard options.
The Advance portable electric patient lift from Hoyer represents a true step forward in patient lift design and performance.
It uses the very latest design and manufacturing technologies to ensure the Advance is the most functional and stylish lift in its class today.
True compact design makes this travel patient lift ideal for active...
The Hoyer Advance can also be folded, or separated for transportation. Unlike other products on the market the Advance needs NO tools or special attachments to achieve its compact / folded position (Power Model Shown).
|Mast Base & Boom Assembly Weight:||64 lbs.|
|Power Pack Weight:||5 lbs.|
|Base Assembly Weight: (not incl. battery)||33lbs.|
|Boom Weight: (not incl.battery)||31 lbs.|
|Product Length/Depth (Maximum):||51"|
|Product Length/Depth (Minimum):||49"|
|Product Height (Maximum):||71"|
|Product Height (Minimum):||23"|
|Weight Capacity:||340 lbs.|
|Folded Dimensions:||17.7" High x 46.5" Deep x 21.6" Wide|

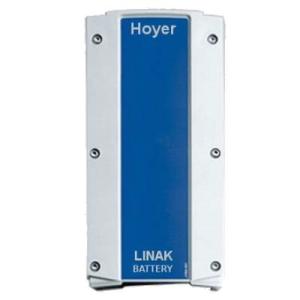

|Batteries (power only):||12 volt rechargeable sealed lead acid type|
|Battery Capacity (power only):||3.2 ampere hours|
|Charger Rated Input (power only):||230Vac 50/60Hz|
|Charger Rated Output (power only):||27.4/29.0 VDC@0.8A|
|Spreader Bar Max. Height:||5' 4.5"|
|Spreader Bar Min Usable Height:||1' 3"|
|Spreader Bar Height @ Max Reach:||3' 9"|
|Spreader Bar Reach @ Max Height:||2' 4"|
|Spreader Bar Reach @ Min Height:||1' 7"|
|Spreader Bar Max. Reach:||2' 9"|
|Spreader Bar Turning Radius:||3' 5"|
|Leg Open External Width:||42.5"|
|Leg Open Internal Width:||39.5"|
|Leg Closed External Width:||25"|
|Leg Closed Internal Width:||22"|
|Overall Height of Legs:||4.5"|
|Casters:||3.3" Front, 4" Rear (Braked)|
|Sling Use Type:||Hoyer Grey Looped|
