Name: Rogue: (discontinued 2) Ethos / Rogue Height Adjustable Back Post With Adjustable Height Rigidizer Bar
Manufacturer: Ki Mobility

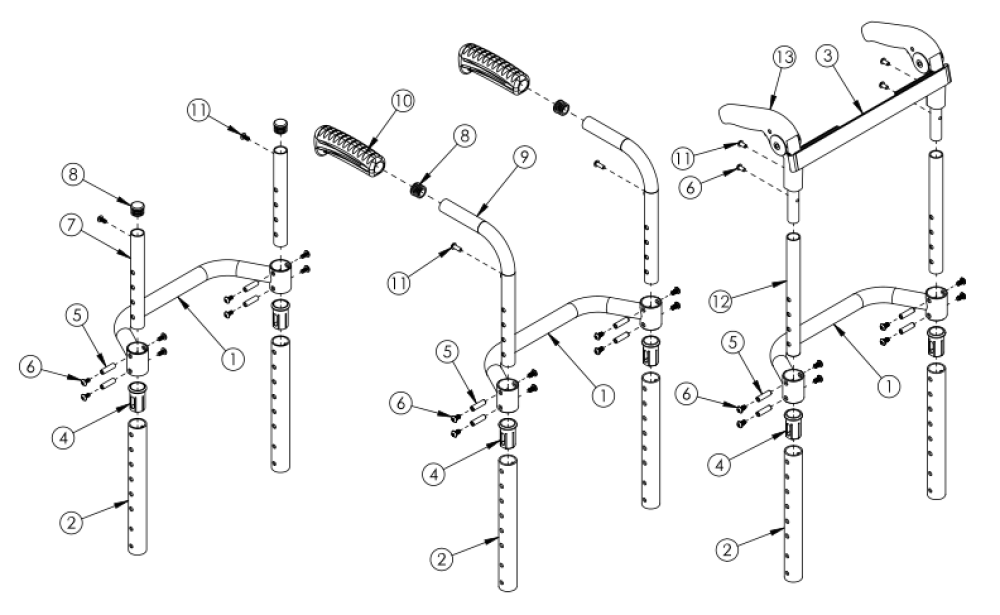

(discontinued 2) Ethos / Rogue Height Adjustable Back Post With Adjustable Height Rigidizer Bar parts diagram
(Click on image to enlarge)

If chair was ordered with Rigid Locking Fold Down Back, please see Rigid Height Adjustable Back Post with Adjustable Height Rigidizer Bar page. Effective on Rogue starting with serial number RG0016612. If retrofitting to this backrest on Rogue, a new backrest mount and hardware may be required. Tension Straps (#3) are based on seat width and used in combination with back upholstery.
Pos. Part # Description Price UOM Buy
6, 11, 12a, 13 110359 Fold Down Push Handle Assembly, Height Adjustable, Short- Used with short back height range
$87.80
EA
6, 11, 12b, 13 107211 Fold Down Push Handle Assembly, Height Adjustable, Medium- Used with medium back height range
$87.80
EA
6, 11, 12c, 13 107212 Fold Down Push Handle Assembly, Height Adjustable, Tall- Used with tall back height range
$87.80
EA
8, 9a, 10a 502602 Standard Push Handle Assembly, Short- Used with short back height range
$39.09
EA
8, 9b, 10a 107225 Standard Push Handle Assembly, Medium- Used with medium back height range
$39.09
EA
8, 9c, 10a 107227 Standard Push Handle Assembly, Tall- Used with tall back height range
$39.09
EA
8, 9d, 10b 107205 Low Profile Push Handle Assembly, Short- Used with short back height range
$40.54
EA
8, 9e, 10b 107226 Low Profile Push Handle Assembly, Medium- Used with medium back height range
$40.54
EA
8, 9f, 10b 107228 Low Profile Push Handle Assembly, Tall- Used with tall back height range
$40.54
EA
1a 000527 Adjustable Height Rigidizer Bar 12" Wide
$92.53
EA
1b 000528 Adjustable Height Rigidizer Bar 13" Wide
$92.53
EA
1c 000185 Adjustable Height Rigidizer Bar 14" Wide
$92.53
EA
1d 000186 Adjustable Height Rigidizer Bar 15" Wide
$92.53
EA
1e 000187 Adjustable Height Rigidizer Bar 16" Wide
$92.53
EA
1f 000188 Adjustable Height Rigidizer Bar 17" Wide
$92.53
EA
1g 000189 Adjustable Height Rigidizer Bar 18" Wide
$92.53
EA
1h 000190 Adjustable Height Rigidizer Bar 19" Wide
$92.53
EA
1i 000191 Adjustable Height Rigidizer Bar 20" Wide
$92.53
EA
2a, 4 107246 Height Adjustable Back Post with Sleeve Short- Used with standard push handles, low push handles or omit push handles with a short height range
$24.89
EA
2b, 4 107247 Height Adjustable Back Post with Sleeve Medium- Used with standard push handles, low push handles or omit push handles with a medium height range
$24.89
EA
2c, 4 107248 Height Adjustable Back Post with Sleeve Tall- Used with standard push handles, low push handles or omit push handles with a tall height range
$24.89
EA
2d, 4 110352 Height Adjustable Back Post for Fold Down Push Handle with Sleeve Short- Used with fold down push handles with a short height range
$24.89
EA
2e, 4 110353 Height Adjustable Back Post for Fold Down Push Handle with Sleeve Medium- Used with fold down push handles with a medium height range
$24.89
EA
2f, 4 110354 Height Adjustable Back Post for Fold Down Push Handle with Sleeve Tall- Used with fold down push handles with a tall height range
$24.89
EA
3a 001749 Tension Strap Folding Handle 12-13 Wide
$21.86
EA
3b 001750 Tension Strap Folding Handle 14-15 Wide
$23.30
EA
3c 001751 Tension Strap Folding Handle 16-17 Wide
$24.60
EA
3d 001752 Tension Strap Folding Handle 18-19 Wide
$26.05
EA
3e 001753 Tension Strap Folding Handle 20-22 Wide
$27.38
EA
4 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
5 000073 M5 x 24 Threaded Barrel
$4.23
EA
6 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
7a, 8 502608 Straight Upper Back Tube 6.25" with Tube End Plug- Used with short back height range
$18.73
EA
7b, 8 107209 Straight Upper Back Tube 9.5" with Tube End Plug- Used with medium or tall back height ranges
$18.17
EA
8 100638 Tube End Plug 3/4"
$2.36
EA
10a 109432 Ergo Push Handle Grip 3/4" Standard with Instruction
$7.76
EA
10b 109430 Ergo Push Handle Grip 3/4" Low Profile with Instruction N/A EA Please Call
11 100734 M5 x 16 PHMS ZC- Used to mount back upholstery and/or Fold Down Push Handle
$1.77
EA
13 001735 Folding Handle Assembly Rigid- This is to replace an existing Fold Down Push Handle. If wanting to retrofit to the Fold Down Push Handle, order one of the following complete assemblies based on back height range: 110359, 107211 or 107212
$52.92
EA
