Rogue Alx (formerly Tsunami)

Name: Rogue ALX (Formerly Tsunami): Rogue Alx Caster Pin Locks (formerly Tsunami)
Manufacturer: Ki Mobility

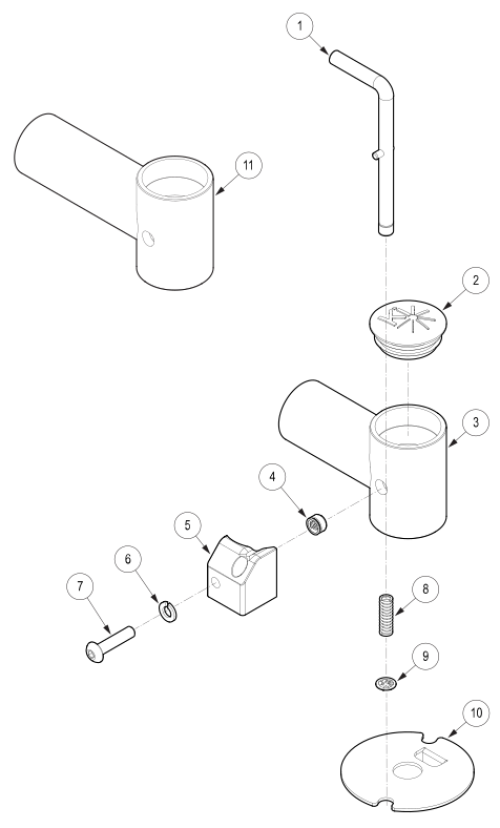

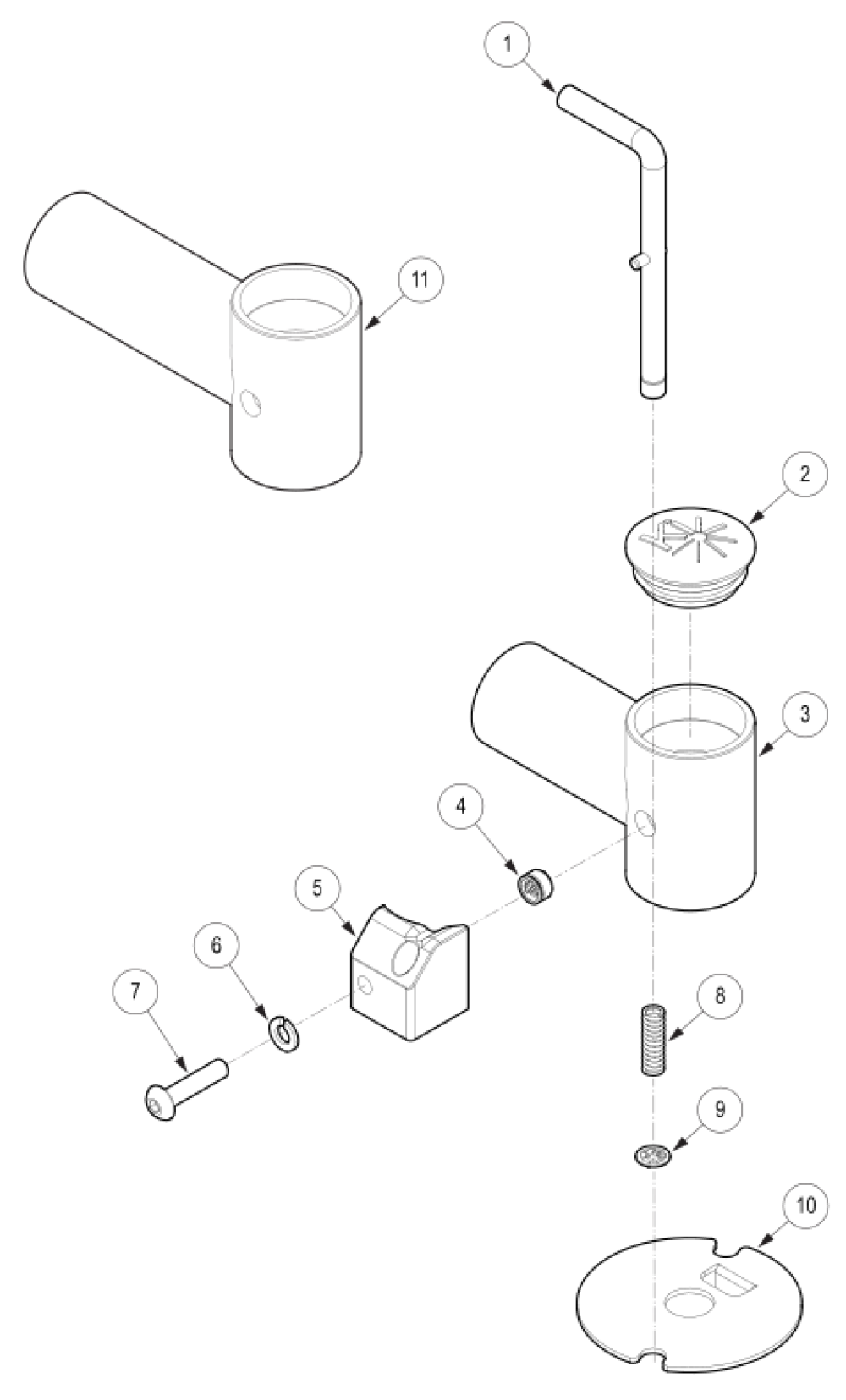

Rogue Alx Caster Pin Locks (formerly Tsunami) parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 5a, 6 - 9, 10a 109980 Caster Pin Lock Assembly, Left, Standard, RG ALX- This assembly does not contain a caster housing or caster housing cap
$131.99
EA
1a, 5b, 6 - 9, 10b 109981 Caster Pin Lock Assembly, Right, Standard, RG ALX- This assembly does not contain a caster housing or caster housing cap
$131.99
EA
1a, 5a, 5b, 6 - 9, 10a, 10b 109982 Caster Pin Lock Assembly, Standard, PAIR, RG ALX- This assembly does not contain caster housings or caster housing caps
$263.99
EA
1b, 5a, 6 - 9, 10a 109983 Caster Pin Lock Assembly, Left, 3/4, RG ALX- This assembly does not contain a caster housing or caster housing cap
$131.99
EA
1b, 5b, 6 - 9, 10b 109984 Caster Pin Lock Assembly, Right, 3/4, RG ALX- This assembly does not contain a caster housing or caster housing cap
$131.99
EA
1b, 5a, 5b, 6 - 9, 10a, 10b 109985 Caster Pin Lock Assembly, 3/4, PAIR, RG ALX- This assembly does not contain caster housings or caster housing caps
$263.99
EA
1a, 2, 3a, 4, 5a, 6 - 9, 10a 109986 Caster Pin Lock Assembly with Caster Housing with Rivnut, Left, Standard, RG ALX
$224.14
EA
1a, 2, 3b, 4, 5b, 6 - 9, 10b 109987 Caster Pin Lock Assembly with Caster Housing with Rivnut, Right, Standard, RG ALX
$224.14
EA
1a, 2, 3a, 3b, 4, 5a, 5b, 6 - 9, 10a, 10b 109988 Caster Pin Lock Assembly with Caster Housing with Rivnut, PAIR, Standard, RG ALX
$448.26
EA
1a, 2, 11a, 4, 5a, 6 - 9, 10a 109989 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, Left, Standard, RG ALX
$224.14
EA
1a, 2, 11b, 4, 5b, 6 - 9, 10b 109990 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, Right, Standard, RG ALX
$224.14
EA
1a, 2, 4, 5a, 5b, 6 - 9, 10a, 10b, 11a, 11b 109991 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, PAIR, Standard, RG ALX
$448.26
EA
1b, 2, 3a, 4, 5a, 6 - 9, 10a 109992 Caster Pin Lock Assembly with Caster Housing with Rivnut, Left, 3/4, RG ALX
$224.14
EA
1b, 2, 3b, 4, 5b, 6 - 9, 10b 109993 Caster Pin Lock Assembly with Caster Housing with Rivnut, Right, 3/4, RG ALX
$224.14
EA
1b, 2, 3a, 3b, 4, 5a, 5b, 6 - 9, 10a, 10b 109994 Caster Pin Lock Assembly with Caster Housing with Rivnut, PAIR, 3/4, RG ALX
$448.26
EA
1b, 2, 11b, 4, 5a, 6 - 9, 10a 109995 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, Left, 3/4, RG ALX
$224.14
EA
1b, 2, 11b, 4, 5b, 6 - 9, 10b 109996 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, Right, 3/4, RG ALX
$224.14
EA
1b, 2, 4, 5a, 5b, 6 - 9, 10a, 10b, 11b, 11b 109997 Caster Pin Lock Assembly with Extended Caster Housing with Rivnut, PAIR, 3/4, RG ALX
$448.26
EA
1a 000444 Caster Lock Pin Std, RG ALX- Used with Standard Stem
$63.99
EA
1b 000443 Caster Lock Pin 3/4, RG ALX- Used with + 3/4" Stem
$63.99
EA
2 102005 Ki Caster Housing Cap
$1.31
EA
3a, 4 108108 Caster Housing with Rivnut for Caster Pin Locks, Left, RG ALX
$90.83
EA
3b, 4 108109 Caster Housing with Rivnut for Caster Pin Locks, Right, RG ALX
$90.83
EA
5a 200419 Caster Lock Mounting Block Left, RG ALX
$27.47
EA
5b 200420 Caster Lock Mounting Block Right, RG ALX
$27.47
EA
6 102614 M5 Split Lock Washer BLK ZC
$0.60
EA
7 101117 M5 x 22 BTN SHCS BLK ZC
$1.77
EA
8 200418 Caster Pin Lock Spring
$1.87
EA
9 102043 1/4" Pushnut Plated
$8.23
EA
10a 000397L Caster Pin Lock Plate Left
$19.10
EA
10b 000397R Caster Pin Lock Plate Right
$19.10
EA
11a, 4 108110 Extended Caster Housing with Rivnut for Caster Pin Locks, Left, RG ALX
$90.83
EA
11b, 4 108111 Extended Caster Housing with Rivnut for Caster Pin Locks, Right, RG ALX
$90.83
EA
