Rogue Alx (formerly Tsunami)

Name: Rogue ALX (Formerly Tsunami): Rogue Alx Backrest Mount And Hardware
Manufacturer: Ki Mobility

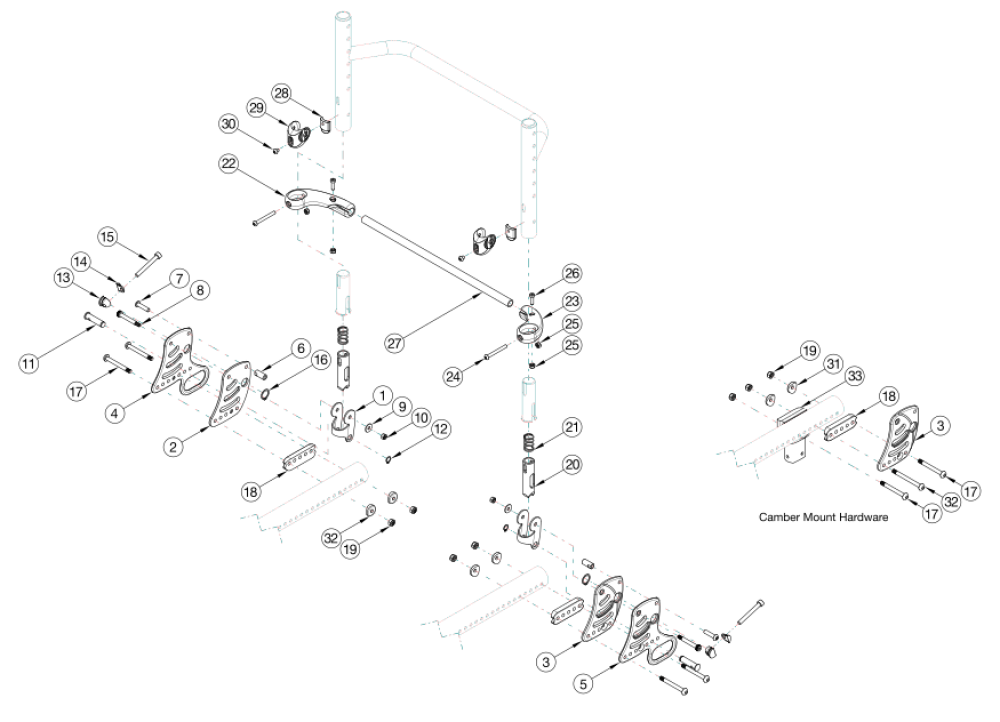

Rogue Alx Backrest Mount And Hardware parts diagram
(Click on image to enlarge)

Utilize this page if chair has Rigid Locking Fold Down Back. Not available with the Rogue ALX Heavy Duty option. For a complete retrofit, select a Back Plate and Hardware Kit PAIR and Backrest Actuation Bar kit based on width. If retrofitting, new back canes will be needed. If retrofitting to a chair in the field that doesn’t currently have a locking fold down back, a new frame is needed.
Pos. Part # Description Price UOM Buy
1 - 3, 6 - 21, 28 - 31 117291 Back Plate and Hardware, Non-Transit, Black, Rogue ALX, Pair
$414.14
EA
1 - 3, 6 - 21, 28 - 31 117291_ _ _ Back Plate and Hardware, Non-Transit, Color Accent, Rogue ALX, Pair N/A EA Please Call
1, 2, 6 - 19, 31 116909 Back Plate and Hardware, Non Transit, Black, Right, Rogue ALX
$169.52
EA
1, 2, 6 - 19, 31 116909_ _ _ Back Plate and Hardware, Non Transit, Color Accent, Right, Rogue ALX N/A EA Please Call
1, 3, 6 - 19, 31 116910 Back Plate and Hardware, Non Transit, Black, Left, Rogue ALX
$169.52
EA
1, 3, 6 - 19, 31 116910_ _ _ Back Plate and Hardware, Non Transit, Color Accent, Left, Rogue ALX N/A EA Please Call
1, 4 - 21, 28 - 31 117292 Back Plate and Hardware, Transit, Black, Rogue ALX, Pair
$452.22
EA
1, 4, 6 - 19, 31 116911 Back Plate and Hardware, Transit, Black, Right, Rogue ALX
$188.57
EA
1, 5 - 19, 31 116912 Back Plate and Hardware, Transit, Black, Left, Rogue ALX
$188.57
EA
28 - 30 116876 Relax Subassembly
$12.22
EA
22, 24 - 26 116877 Release Lever with Fasteners, Right
$21.24
EA
23 - 26 116878 Release Lever with Fasteners, Left
$21.24
EA
22 - 26, 27a 116879 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 12" Wide, Black
$65.05
EA
22 - 26, 27b 116880 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 13" Wide, Black
$65.42
EA
22 - 26, 27c 116881 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 14" Wide, Black
$69.13
EA
22 - 26, 27d 116882 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 15" Wide, Black
$69.86
EA
22 - 26, 27e 116883 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 16" Wide, Black
$70.61
EA
22 - 26, 27f 116884 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 17" Wide, Black
$71.72
EA
22 - 26, 27g 116885 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 18" Wide, Black
$73.93
EA
22 - 26, 27h 116886 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 19" Wide, Black
$75.05
EA
22 - 26, 27i 116887 Backrest Actuation Bar Subassembly w/ Release Levers and Fasteners, 20" Wide, Black
$75.41
EA
2 115550 Back Plate, Right, Black
$59.92
EA
2 115550_ _ _ Color Anodized/Color Accent Back Plate, Right N/A EA Please Call
3 115551 Back Plate, Left, Black
$59.92
EA
3 115551_ _ _ Color Anodized/Color Accent Back Plate, Left N/A EA Please Call
4 115552 Back Plate, Transit, Right, Black
$82.91
EA
5 115553 Back Plate, Transit, Left, Black
$82.91
EA
6 115546 Strike, Ø.364
$10.06
EA
7 115573 M6 x 25, BHCS, CLS 10.9, NYL, BLZ
$0.45
EA
8 103284 M6 x 35 Shoulder Bolt BZ
$5.30
EA
9 103022 M5 Washer, Blk Zn
$0.60
EA
10 103283 M5 Top Lock Nut BZ
$0.60
EA
12 115570 Eternal Retaining Ring, 3/8"
$0.41
EA
15 115545 M6 x 1.0 x 50 SHCS, FT, NYL, BLZ
$5.59
16 115571 Eternal Retaining Ring, 5/8"
$1.42
EA
17 003232 M6 x 55 BHCS Blk Zc
$10.01
EA
18 003715 Back Saddle 1 3/8" Tube
$2.72
19 100658 M6 Nylock Nut Blk Zn
$1.17
EA
20 115539 Release Pin
$22.85
21 115547 Compression Spring, .66" OD x 1" LG
$2.45
24 000142 M5 x 45 BHCS, P/THD, BLZ
$2.28
EA
25 100657 M5 Nylock Nut Blk Zn
$0.60
EA
26 102801 M5 x 16, Low SHCS, Blk Zn
$1.77
EA
27a 115554 Backrest Actuation Bar, 12" Wide, Black
$22.58
EA
27b 115555 Backrest Actuation Bar, 13" Wide, Black
$22.96
EA
27c 115556 Backrest Actuation Bar, 14" Wide, Black
$26.65
EA
27d 115557 Backrest Actuation Bar, 15" Wide, Black
$27.39
EA
27e 115558 Backrest Actuation Bar, 16" Wide, Black
$28.13
EA
27f 115559 Backrest Actuation Bar, 17" Wide, Black
$29.24
EA
27h 115560 Backrest Actuation Bar, 18" Wide, Black
$31.46
EA
27h 115561 Backrest Actuation Bar, 19" Wide, Black
$32.58
EA
27i 115562 Backrest Actuation Bar, 20" Wide, Black
$32.94
EA
28 115549 Relax Bumper
$7.11
29 115548 Relax Saddle
$4.45
30 115572 M5 x 0.8 x 6 BHCS BLZ, CLS 10.9
$0.68
31 003716 Saddle 1 3/8" Tube
$1.17
32 107138 M6 x 65, BHCS, P/THD BLZ
$2.28
EA
33 000406 Camber Mount Tower Medium, RG ALX
$119.29
EA
