Rogue Alx (formerly Tsunami)

Name: Rogue ALX (Formerly Tsunami): (discontinued 1) Rogue Style Locking Backrest Mount And Hardware On Rogue Alx (formerly Tsunami)
Manufacturer: Ki Mobility

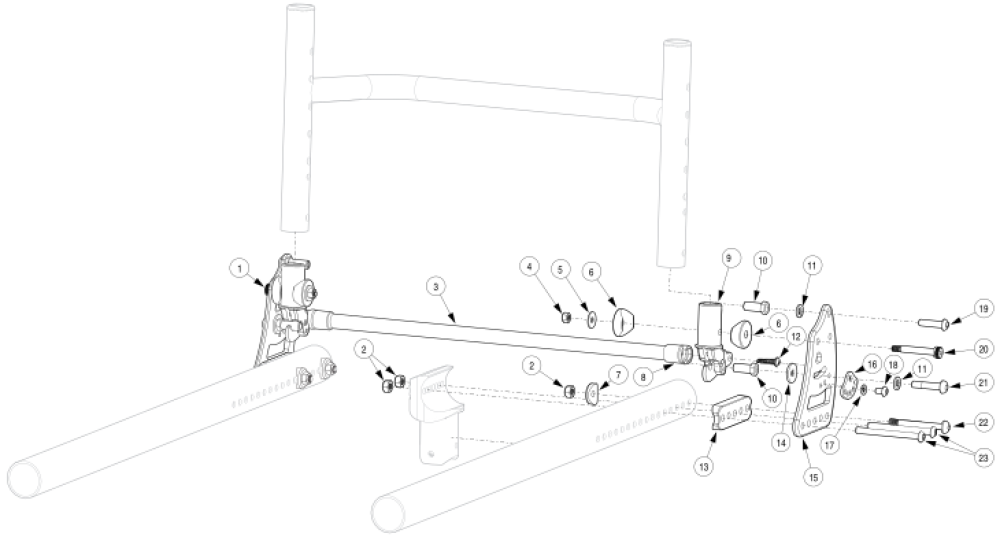

(discontinued 1) Rogue Style Locking Backrest Mount And Hardware On Rogue Alx (formerly Tsunami) parts diagram
(Click on image to enlarge)

If chair has Rigid Locking Fold Down Back, please see Rogue ALX Backrest Mount and Hardware page. This Rogue Style Locking Backrest is not available with the Rogue ALX Heavy Duty option If retrofitting to this backrest style, a minimum 1" of adjustable depth is required in addition to new back frames and backrest tubes
Pos. Part # Description Price UOM Buy
1a, 2, 4 - 7, 9 - 15a, 16 - 23b 109565 Rogue Style Backrest Bracket Mount Kit, Black Anodized, RG ALX- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. N/A EA Please Call
1b, 2, 4 - 7, 9 - 14, 15b, 16 - 23b 109566 Rogue Style Backrest Transit Bracket Mount Kit, Black Anodized, RG ALX- This kit does not contain a release bar or release bar ends. Select appropriate Backrest Release Bar Kit in addition to this kit for a complete assembly. N/A EA Please Call
3a, 8 107192 Backrest Release Bar Kit, 14" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3b, 8 107193 Backrest Release Bar Kit, 15" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3c, 8 107194 Backrest Release Bar Kit, 16" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3d, 8 107195 Backrest Release Bar Kit, 17" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3e, 8 107196 Backrest Release Bar Kit, 18" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3f, 8 107197 Backrest Release Bar Kit, 19" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
3g, 8 107198 Backrest Release Bar Kit, 20" Wide, Black Anodized with Backrest Release Bar Ends N/A EA Please Call
1a 003711 Back Bracket Right, Black Anodized
$63.58
EA
2 100658 M6 Nylock Nut Blk Zn
$1.17
EA
3a 003741 Backrest Release Bar 14" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
3b 003742 Backrest Release Bar 15" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
3c 003743 Backrest Release Bar 16" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
3d 003744 Backrest Release Bar 17" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
3e 003745 Backrest Release Bar 18" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed. N/A EA Please Call
3f 003746 Backrest Release Bar 19" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
3g 003747 Backrest Release Bar 20" Wide, Black Anodized- Does not include the release bar ends. Verify if #8 is needed.
$23.52
EA
4 103283 M5 Top Lock Nut BZ
$0.60
EA
5 103022 M5 Washer, Blk Zn
$0.60
EA
6 000055 Saddle 1"
$1.77
EA
7 003716 Saddle 1 3/8" Tube
$1.17
8 003750 Backrest Release Bar End N/A Please Call
9 003734 Pivot Assembly N/A Please Call
10 003713 Strike Hex
$5.88
11 101835 M6 Lock Washer Blk Zn
$0.60
EA
12 103279 #8-16 Tri-Lobular Plastic Screw BZ
$0.60
13 003715 Back Saddle 1 3/8" Tube
$2.72
14 101853 M6 Washer Blk Zn
$0.60
EA
15a 003712 Back Bracket Left, Black Anodized
$63.58
EA
15b 109564 Back Bracket with Transit and Hook Label, Black, Rigid
$29.91
EA
16 001762 Arc Adjustment Cam
$4.46
EA
17 102614 M5 Split Lock Washer BLK ZC
$0.60
EA
18 102621 M5 x 8 BHCS BLK ZC
$0.60
EA
19 101593 M6 x 25 BTN SHCS BLKZC
$1.77
EA
20 103284 M6 x 35 Shoulder Bolt BZ
$5.30
EA
21 103227 M6 x 30 Long Shoulder BHCS BZ
$4.70
22 003232 M6 x 55 BHCS Blk Zc- Used when bolt goes through the tower and frame only. Also used when bolt goes through the frame, back bracket and back saddles.
$10.01
EA
23a 107138 M6 x 65, BHCS, P/THD BLZ- Used when bolt goes through the tower, frame, back bracket and back saddle
$2.28
EA
23b 101781 M6 x 50mm Partial Thread BHCS Blk ZC- Used when bolt goes through the frame, back bracket and back saddle
$1.77
EA
