Name: Little Wave XP: Rigid Height Adjustable Low T-arm
Manufacturer: Ki Mobility

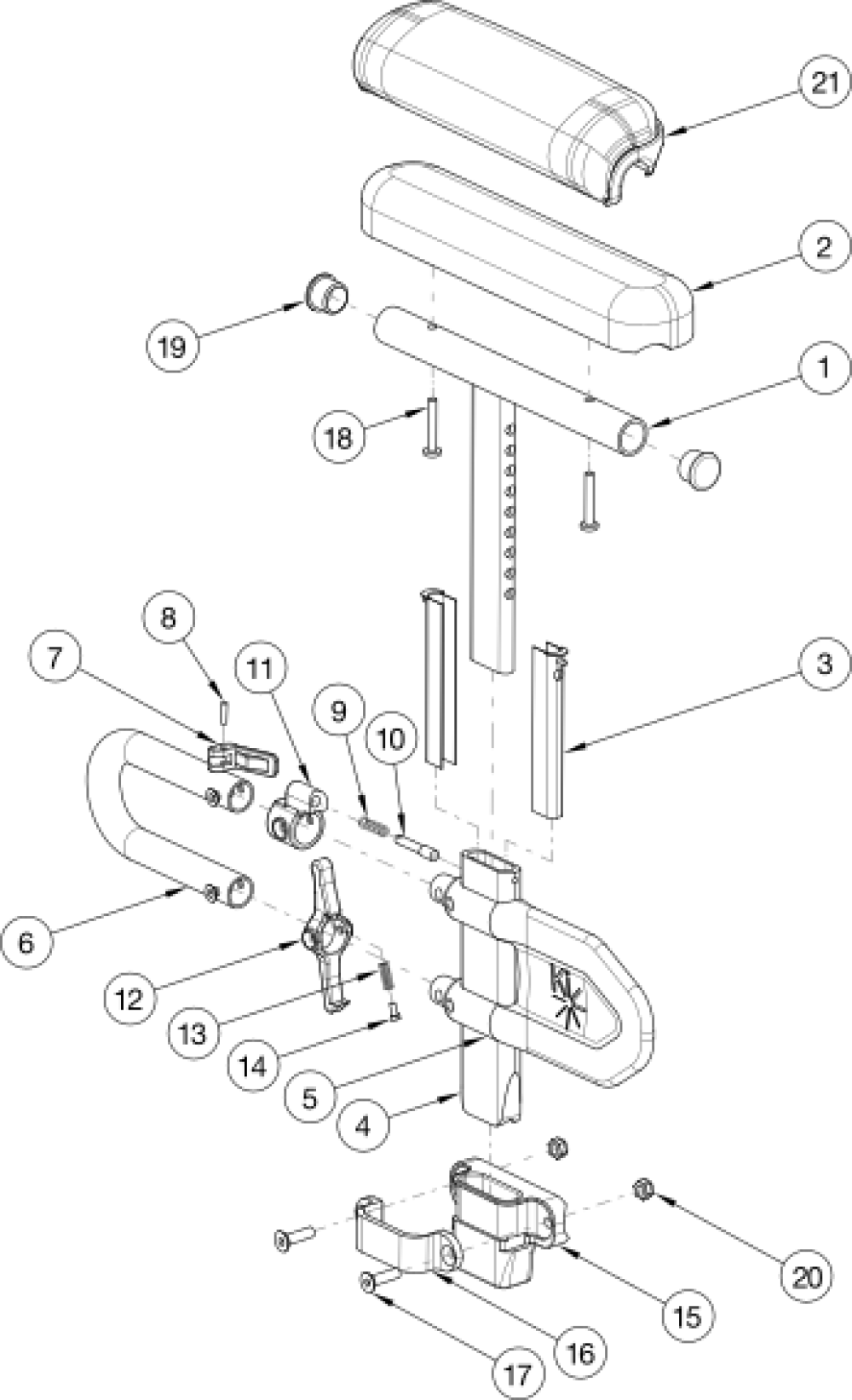

Rigid Height Adjustable Low T-arm parts diagram
(Click on image to enlarge)

Height Adjustable Low T-Arms cannot be retrofitted
Pos. Part # Description Price UOM Buy
1a, 2b, 3 - 17, 18a, 19 - 20 121221 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR
$479.03
EA
1a, 2b, 3 - 17, 18a, 19 - 20 113444 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver
$239.52
EA
1a, 2b, 3 - 14, 18a, 19 121211 Height Adj T-Arm Assm Low, Desk w/ Std Pad and RG/RG ALX/LW XP Receiver
$239.52
EA
1b, 2a, 3 - 17, 18a, 19 - 20 113461 Height Adj T-Arm Assm Low, Full w/ Std Pad and RG/RG ALX/LW XP Receiver PAIR
$479.03
EA
1b, 2a, 3 - 17, 18a, 19 - 20 113446 Height Adj T-Arm Assm Low Full w/ Std Pad and RG/RG ALX/LW XP Receiver
$239.52
EA
1b, 2a, 3 - 14, 18a, 19 503169 Height Adjustable T-Arm Assembly Low Full w/ Std Pad
$183.61
EA
1a, 3 - 17, 18b, 19 - 20, 21b 121223 Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR
$499.93
EA
1a, 3 - 17, 18b, 19 - 20, 21b 121212 Height Adj T-Arm Assm Low, Desk w/ Waterfall Pad and RG/RG ALX/LW XP Receiver
$249.98
EA
1a, 3 - 14, 18b, 19, 22b 121243 Height Adjustable T-Arm Assembly Low, Desk w/ Waterfall Pad
$194.06
EA
1b, 3 - 17, 18b, 19 - 20, 21a 113463 Height Adj T-Arm Assm Low, Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver PAIR
$499.93
EA
1b, 3 - 17, 18b, 19 - 20, 21a 113449 Height Adj T-Arm Assm Low Full w/ Waterfall Pad and RG/RG ALX/LW XP Receiver
$249.98
EA
1b, 3 - 14, 18b, 19, 22a 503185 Height Adjustable T-Arm Assembly Low Full w/ Waterfall Pad
$194.06
EA
1a, 3 - 14, 19 114488 Height Adjustable T-Arm, Desk, Low
$153.00
EA
1b, 3 - 14, 19 002683 Arm T Height Adjustable Low, Full Right Assembly N/A EA Please Call
1b, 3 - 14, 19 114489 Height Adjustable T-Arm, Full, Low- Replaced 002683 / 002684
$153.00
EA
15 - 17, 20 501731 Height Adj T-Arm Receiver Assembly 1-3/8", RG ALX/LW XP
$55.07
EA
7 - 11 500541 Arm Height Adjustable T Upper Lever Assembly
$46.32
EA
1a, 19 002648 Post Weldment, T-Arm, Low, Desk
$76.58
EA
1b, 19 002649 Post Weldment, T-Arm, Low, Full
$79.18
EA
2a 100500 Arm Pad Full
$26.98
EA
2b 100501 Arm Pad Desk
$26.98
EA
3 000090 Height Adjustable T Armrest Shim
$2.92
4 002105 Tube, Outer, T-Arm, Low
$33.81
EA
5 002107 Sideguard, T-Arm, Low N/A EA Please Call
6 002104 Transfer Tube, T-Arm, Low
$19.20
EA
7 000098 Height Adjustable Armrest Lever N/A EA Please Call
8 200257 Dowel Pin 1/8 x 1/2
$3.00
EA
9 000134 Height Adjustable Armrest Lever Spring
$1.28
EA
10 000099 Height Adjustable Armrest Lever Pin
$21.84
EA
11 000096 Height Adjustable T Armrest Pin Lock Housing
$16.80
EA
12 002106 Lever, T-Arm, Low
$3.96
EA
13 000135 Height Adjustable T Armrest Release Lever Spring
$1.23
EA
14 000152 Height Adjustable T Armrest Release Spring Button
$1.23
EA
15 004578 Height Adjustable T-Arm Receiver 1.375"
$17.41
EA
16 000088 Height Adjustable T Armrest Bracket
$31.30
EA
17 101130 M6 x 55 FSHCS P/THD BLKZC
$2.41
EA
18a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.81
EA
18b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.81
19 100803 Tube End Plug 7/8"
$1.81
EA
20 100658 M6 Nylock Nut Blk Zn
$1.19
EA
21a 102452 Waterfall Arm Pad Full
$37.44
EA
21b 102521 Waterfall Arm Pad Desk
$37.44
EA
