Little Wave Flip For Leckey

Name: Little Wave Flip for Leckey: Flip For Leckey Transit
Manufacturer: Ki Mobility

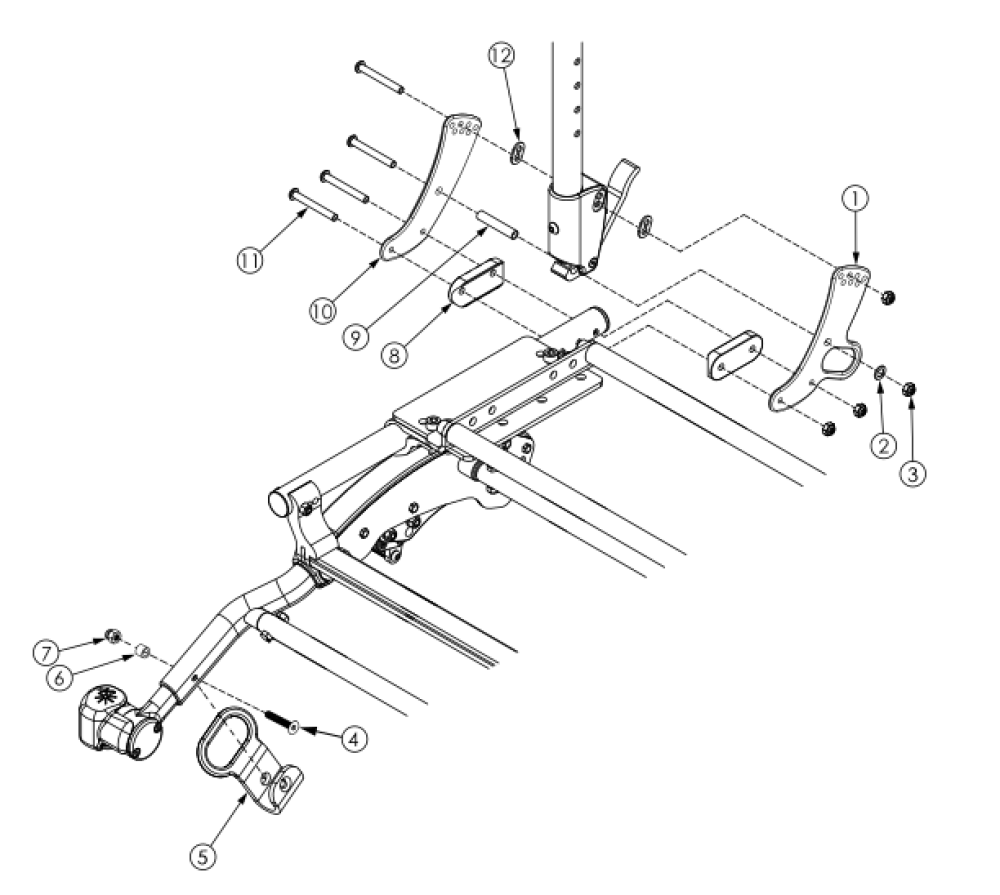

Flip For Leckey Transit parts diagram
(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered.
Pos. Part # Description Price UOM Buy
1 - 3, 8 - 12 111271 Transit Backrest Hardware Kit, Flip for Leckey
$260.97
1 - 12 111272 Transit Retrofit Kit, Flip for Leckey- This is a complete retrofit, containting a pair of front transit brackets, transit backplates and attaching hardware.
$704.01
EA
1 111269 Inner Back Plate Transit, Flip for Leckey
$137.09
EA
2 101861 Nylon Washer 5/16 x 1/2 x .03
$0.60
EA
3 100658 M6 Nylock Nut Blk Zn
$1.17
EA
4 101733 M6 x 35 CLS10.9 DIN7991 FSHCS BLKZC
$2.36
EA
6 002086 Spacer, .38ODx.24IDx.31LG
$2.71
EA
7 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
8 002594 Saddle, Dual, 1" OD X 1.75 SP
$3.43
9 002738 Spacer .313 OD x .243 ID x 1.68 long
$4.39
EA
10 001071 Back Plate Std TILT
$94.89
11 101781 M6 x 50mm Partial Thread BHCS Blk ZC
$1.77
EA
12 001897 Washer, Dual, PSA
$2.34
EA
