Liberty
Name: Liberty: Liberty Seat Frame - Growth
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

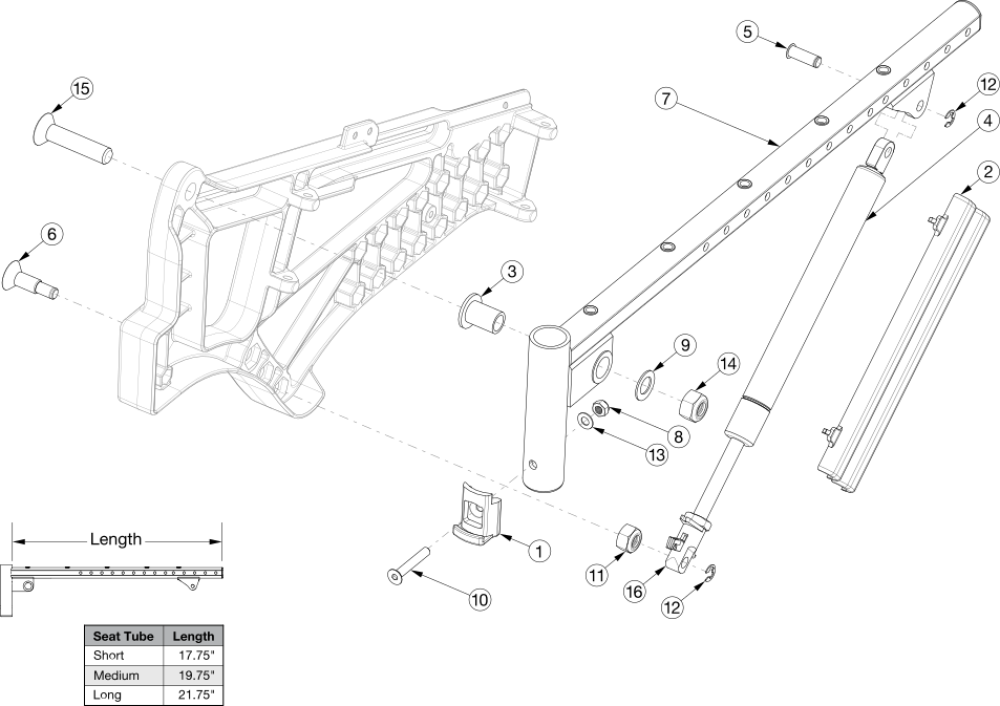

Part Picture
(Click on image to enlarge)
Can you achieve your new depth within the existing depth range?
Short = 14" - 16" Medium = 16" - 18" Long = 18" - 20"
If no, please choose the appropriate kit below.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 4b, 5, 6, 11, 12, 16 | 506149 | Gas Spring Kit, 300N, Liberty |
$176.99
|
EA |
|
|
| 2, 4a, 5, 6, 11, 12, 16 | 506150 | Gas Spring Kit, 450N, Liberty |
$176.99
|
EA |
|
|
| 3, 7a, 9, 14, 15 | 506146 | Seat Tube Assembly, Short, Liberty |
$112.65
|
EA |
|
|
| 3, 7b, 9, 14, 15 | 506147 | Seat Tube Assembly, Medium, Liberty |
$118.66
|
EA |
|
|
| 3, 7c, 9, 14, 15 | 506148 | Seat Tube Assembly, Long, Liberty- Updated to longer clevis on seat tube 10/21/2020. Not compatible with Transit Wheels. | Updated to longer clevis on seat tube 10/21/2020. Not compatible with Transit Wheels. |
$195.70
|
EA |
|
| 1 | 000336 | Latch Block |
$42.84
|
EA |
|
|
| 2, 4a, 16 | 506508 | Gas Spring, 95mm Stroke, 450N with Cover, Liberty- Used on Depths 18" and Greater (Default Setting) | Used on Depths 18" and Greater (Default Setting) |
$170.34
|
EA |
|
| 2, 4b, 16 | 506509 | Gas Spring, 95mm Stroke, 300N with Cover, Liberty- Used on Depths Less than 18" (Default Setting) | Used on Depths Less than 18" (Default Setting) |
$170.34
|
EA |
|
| 3 | 003278 | Pivot Bushing |
$3.51
|
EA |
|
|
| 5 | 003282 | Clevis Pin, 8mm x .830Lg |
$1.21
|
EA |
|
|
| 6 | 003283 | Gas Spring Mount Screw |
$1.84
|
EA |
|
|
| 8 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 9 | 100682 | Washer 1/2" .518 x .875 x .047 F/W Black Zinc |
$1.19
|
EA |
|
|
| 10 | 101819 | M6 x 40 FHCS Blk Zn |
$1.19
|
EA |
|
|
| 11 | 101840 | M10 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 12 | 102335 | E-Ring 5/16" SS |
$1.19
|
EA |
|
|
| 13 | 102803 | Washer Flat .250 X .500 X .027 Hx Blz |
$1.81
|
EA |
|
|
| 14 | 103021 | M12 X 1.75mm Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 15 | 103031 | M12 x 55 FHCS, 10.9, Blk Zn |
$4.79
|
EA |
|
|
| 16 | 111877 | Gas Strut Lug, Liberty- Includes replacement instructions | Includes replacement instructions |
$25.62
|
EA |
|
