Liberty

Name: Liberty: (discontinued) Liberty Standard Back Upholstery
Manufacturer: Ki Mobility

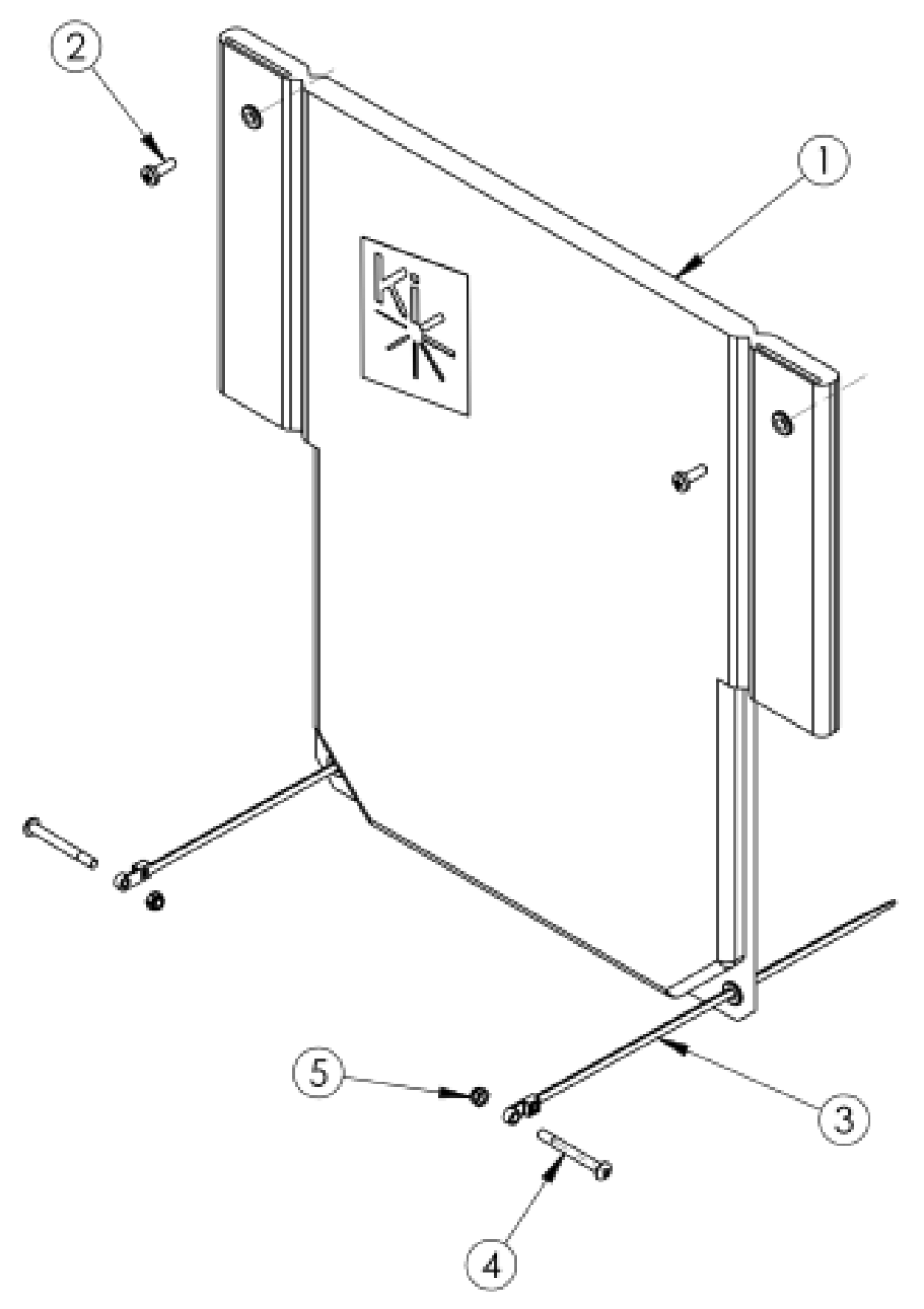

(discontinued) Liberty Standard Back Upholstery parts diagram
(Click on image to enlarge)

Attaching hardware is not included with the back upholstery
Pos. Part # Description Price UOM Buy
3, 4, 5 503727 Zip Tie Kit- This kit contains one zip tie, one bolt and one nut.
$5.30
EA
3, 4, 5 503745 Zip Tie Kit PAIR
$10.59
EA
1a 004482 Back Upholstery, Short, 14W, Liberty
$123.21
EA
1b 004483 Back Upholstery, Short, 15W, Liberty
$123.21
EA
1c 004484 Back Upholstery, Short, 16W, Liberty- Replaced with 004514 N/A EA Please Call
1d 004485 Back Upholstery, Short, 17W, Liberty- Replaced with 004515 N/A EA Please Call
1e 004486 Back Upholstery, Short, 18W, Liberty- Replaced with 004516 N/A EA Please Call
1f 004487 Back Upholstery, Short, 19W, Liberty- Replaced with 004517 N/A EA Please Call
1g 004488 Back Upholstery, Short, 20W, Liberty- Replaced with 004488 N/A EA Please Call
1h 004489 Back Upholstery, Short, 21W, Liberty- Replaced with 004519 N/A EA Please Call
1i 004490 Back Upholstery, Short, 22W, Liberty- Replaced with 004520 N/A EA Please Call
1j 004491 Back Upholstery, Medium, 14W, Liberty- Replaced with 004521 N/A EA Please Call
1k 004492 Back Upholstery, Medium, 15W, Liberty- Replaced with 004522 N/A EA Please Call
1l 004493 Back Upholstery, Medium, 16W, Liberty- Replaced with 004523 N/A EA Please Call
1m 004494 Back Upholstery, Medium, 17W, Liberty- Replaced with 004524 N/A EA Please Call
1n 004495 Back Upholstery, Medium, 18W, Liberty- Replaced with 004525 N/A EA Please Call
1o 004496 Back Upholstery, Medium, 19W, Liberty- Replaced with 004526 N/A EA Please Call
1p 004497 Back Upholstery, Medium, 20W, Liberty- Replaced with 004527 N/A EA Please Call
1q 004498 Back Upholstery, Medium, 21W, Liberty- Replaced with 004528 N/A EA Please Call
1r 004499 Back Upholstery, Medium, 22W, Liberty- Replaced with 004529 N/A EA Please Call
1s 004500 Back Upholstery, Tall, 14W, Liberty- Replaced with 004530 N/A EA Please Call
1t 004501 Back Upholstery, Tall, 15W, Liberty- Replaced with 004531 N/A EA Please Call
1u 004502 Back Upholstery, Tall, 16W, Liberty- Replaced with 004532 N/A EA Please Call
1v 004503 Back Upholstery, Tall, 17W, Liberty- Replaced with 004533 N/A EA Please Call
1w 004504 Back Upholstery, Tall, 18W, Liberty- Replaced with 004534 N/A EA Please Call
1x 004505 Back Upholstery, Tall, 19W, Liberty- Replaced with 004535 N/A EA Please Call
1y 004506 Back Upholstery, Tall, 20W, Liberty- Replaced with 004536 N/A EA Please Call
1z 004507 Back Upholstery, Tall, 21W, Liberty- Replaced with 004537 N/A EA Please Call
1aa 004508 Back Upholstery, Tall, 22W, Liberty- Replaced with 004538 N/A EA Please Call
2 100734 M5 x 16 PHMS ZC- Replaced with 100524
$1.77
EA
3 100685 Zip Tie, Black- Replaced with 100525
$1.77
4 100666 M5 x 45 BTN SHCS BLKZC- Replaced with 100526
$1.77
5 100657 M5 Nylock Nut Blk Zn- Replaced with 100527
$0.60
EA
