Liberty Replacement Parts by Ki Mobility

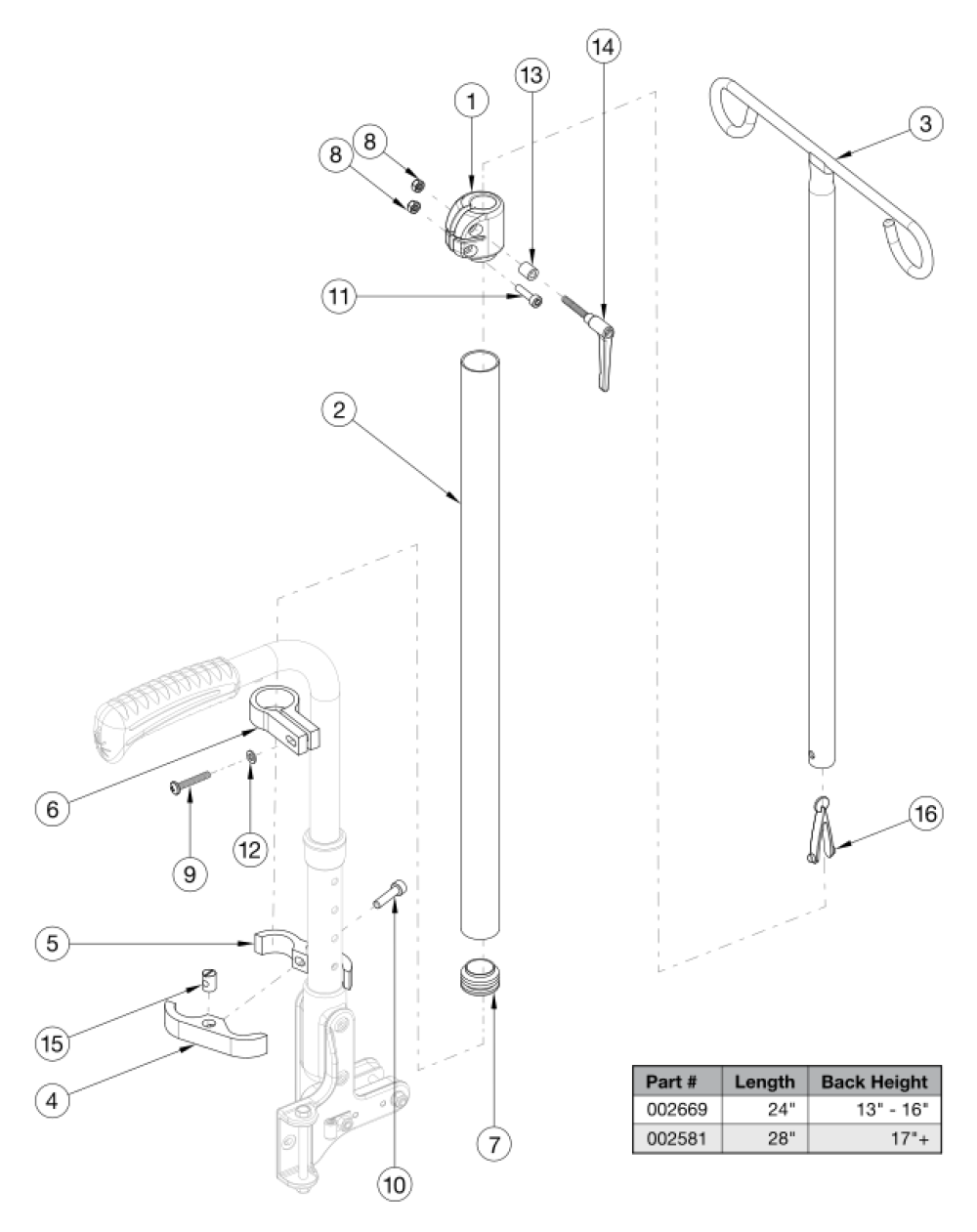

Name: Liberty: Liberty Iv Pole
Manufacturer: Ki Mobility

(Click on image to enlarge)

Attachments:

Pos.	Part #	Description	Price	UOM
1, 2a, 3 - 16	502405	IV Pole Assembly 13-16" Back Height, Catalyst/Liberty	$293.16	EA
1, 2b, 3 - 16	502406	IV Pole Assembly 17-20" Back Height, Catalyst/Liberty	$293.16	EA
1	002395	Footrest Clamp Left LW	$7.80	EA
2a	002669	IV Pole Outer Tube 24" Height	$36.00	EA
2b	002581	IV Pole Outer Tube 28" Height	$38.40	EA
3	002585	IV Pole Upper	$30.00	EA
4	002685	IV Pole Clamp 1-1/8" 1" Thru 1-1/4" w/ Cross Dowel Hole	$42.00	EA
5	002686	IV Pole Clamp 1-1/8" 1" Thru 1-1/4"	$42.00	EA
6	002707	IV Pole Clamp Single 1-1/8"	$42.00	EA
7	100532	Tube End Plug 1 1/8"	$2.94	EA
8	100657	M5 Nylock Nut Blk Zn	$0.60	EA
9	100696	M5 x 30mm PPH Capscrew	$1.77	EA
10	100780	M6 x 25 SHCS ZC	$2.36	EA
11	101843	M5 x 20 SHCS Blk Zn	$0.60	EA
12	101856	Flat Washer, M5, Blk Zn	$0.60	EA
13	102766	Spacer 3/8R. X 7/16 x .218 ID.	$7.91	EA
14	102767	Handle wM5 x 32L Threaded Stud	$33.00	EA
15	102768	M6 Barrel Nut	$5.60	EA
16	102769	Snap Button Plastic	$3.90	EA
