Approximate Age: |
9 Months - 6 Years |
Height Range: |
20" - 44" |
Weight Capacity: |
70 lbs |
Transfer Height (Horizontal Position): |
32" |
Center of Pelvic Support to Foot Plate Range: |
7" - 22" |
Upper Body Support Height Range: |
4" |
Kneepad Depth Range: |
5" |
Kneepad Inside Width: |
2.5" / 3.25" |
Kneepad Dimensions (2.5): |
3.5" x 4" |
Kneepad Dimensions (3.25): |
4" x 4" |
Kneepad Dimensions (4.25): |
4.5" x 5" |
Kneepad Dimensions (5.00): |
5" x 6" |
Multi-Adjustable Kneepads Width Range (2.5): |
4" - 9" |
Multi-Adjustable Kneepads Width Range (3.25): |
4.5" - 9" |
Multi-Adjustable Kneepads Width Range (4.25): |
5" - 8" |
Multi-Adjustable Kneepads Width Range (5.00): |
6" - 7" |
Multi-Adjustable Kneepads Height Range: |
+/- .75" |
Weight of basic unit: |
55lbs. |
Frame Footprint - Caster-to-Caster: |
20" x 28" |
Frame Footprint - Maximum Dimensions: |
21.5" x 29.5" |
Upholstery: |
Black nylon / Neoprene or Molded Urethane |
Hygienic Covers: |
Polyurethane Laminate ECO-PUL |
Frame Colors: |
Green, Purple, White, or Orange |

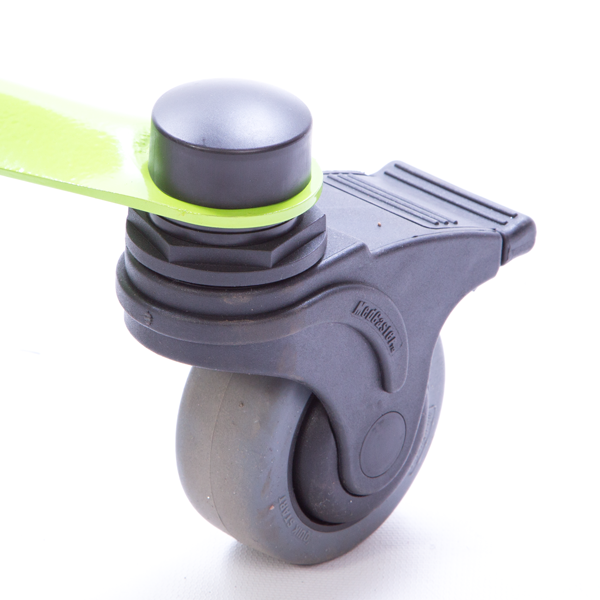

Casters and Wheels Diameter: |
3" |
Lift Mechanism: |
Gas Spring |

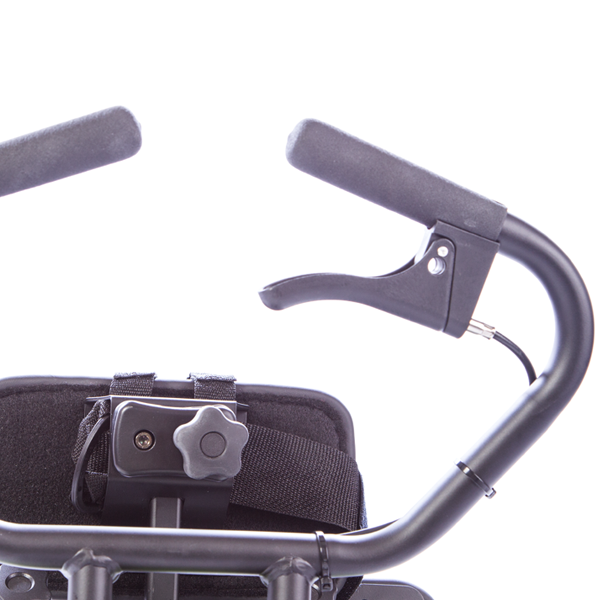

Lift Options: |
Dual Control or Lockout Knob |
Supine Positioning: |
0-90° |
Prone Positioning: |
20° |
Leg Abduction: |
30° per side |

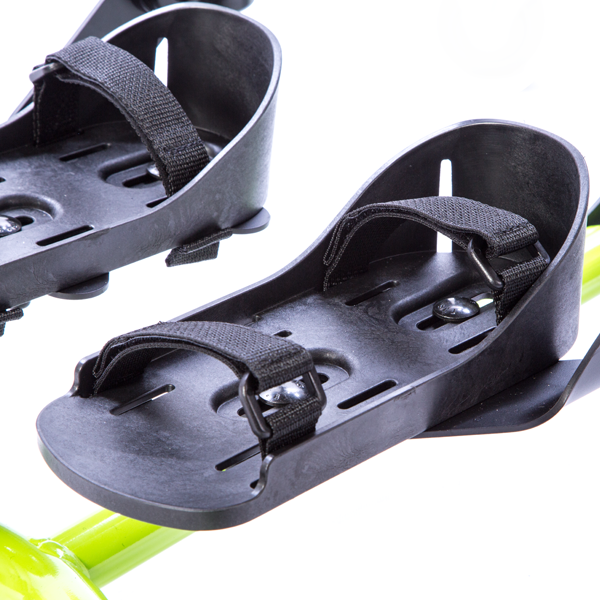

Foot Straps, extra small - length over arch: |
8" |
Foot Straps, small - length over arch: |
10" |
Foot Plate Size 6"Lx3"W: |
6"L x 3"W |
Foot Plate Size 7.75"Lx3.25"W: |
7.75"L x 3.25"W |
Foot Plate Size 9.75"Lx4"W: |
9.75"L x 4"W |

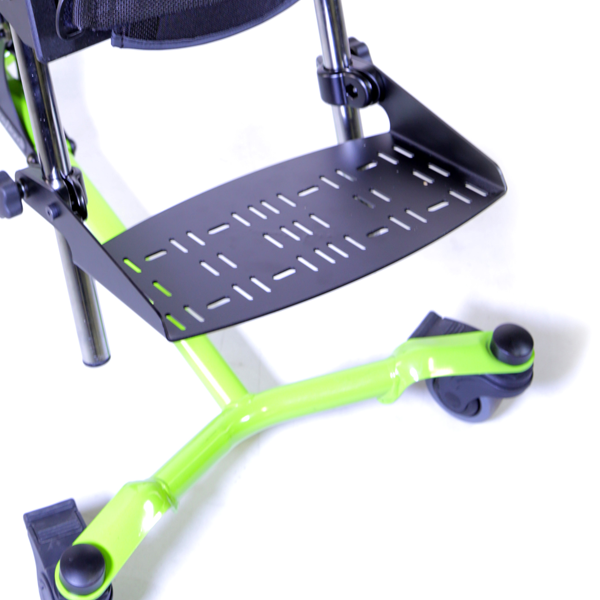

Foot Plate Platform: |
8"L x 12"W |
Multi-Adjustable Foot Plates - Plantar/Dorsi: |
+/- 20° |
Multi-Adjustable Foot Plates - Fore/Aft: |
+/- .75" |
Multi-Adjustable Foot Plates Rotation: |
30° left/right |
Single Calf Pad / Leg Rest: |
4" x 13.5" |
Single Calf Pad Strap, Fits circumference: |
24" |

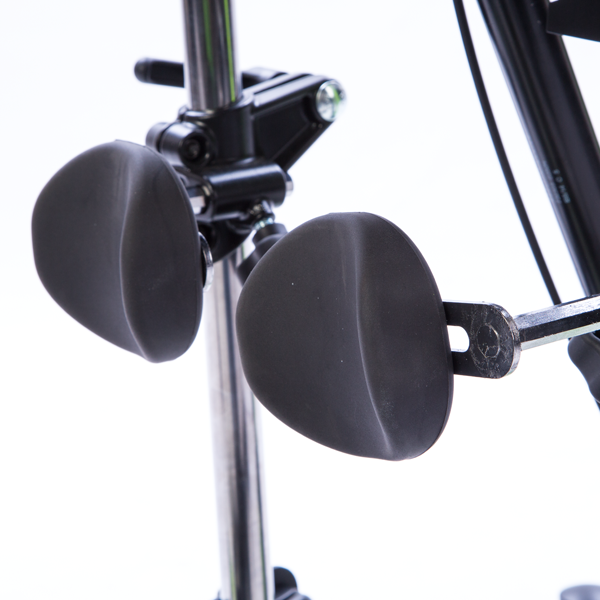

Calf (Behind knee) Pad Size (X-Small): |
3.5" x 3.5" |
Calf (Behind knee) Pad Size (Small): |
4.5" x 4.5" |
Calf Pad Fore/Aft Adjustment from seat plane: |
-1" - +4" |
Shadow Tray Size: |
11" x 19" |
Shadow Tray Height Range: |
3" |
Shadow Tray Fore/Aft Range: |
0" - 10" |
Swing-Away Tray Size: |
11" x 19" |
Swing-Away Tray Height Range: |
3" |
Swing-Away Tray Fore/Aft Range: |
4" - 9" |
Swing-Away Tray Angle Adjust Range: |
40° inclines to -90° |

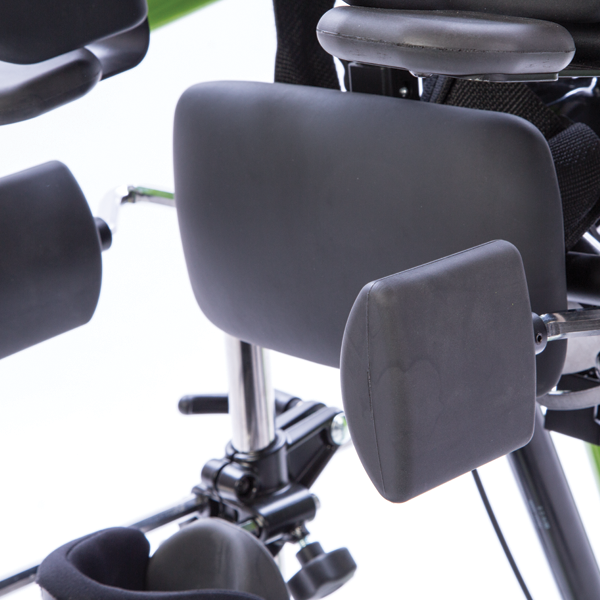

Hip Support Pad Size: |
3.5"H x 3.5"W |
Hip Supports Width Range: |
6" - 10" |

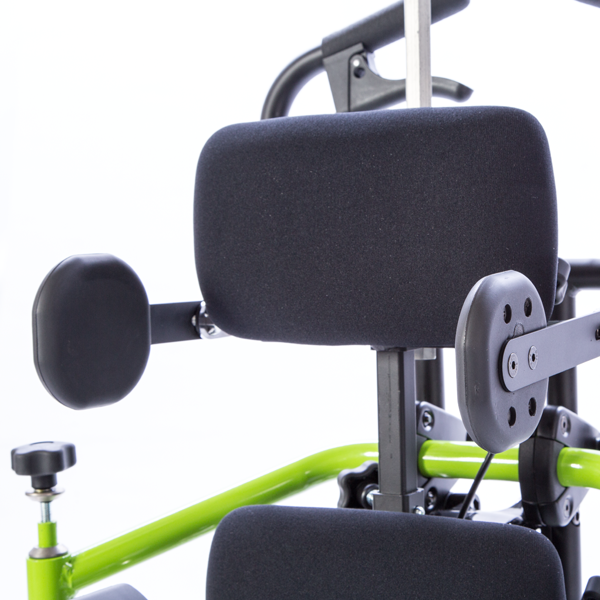

Lateral Support Pad Size: |
3.5"H x 3.5"W |
Lateral Supports Width Range: |
4" - 8" / 7" - 11" |
Lateral Supports Height Range: |
3.5" |
Lateral Supports Fore/Aft Range: |
1" |

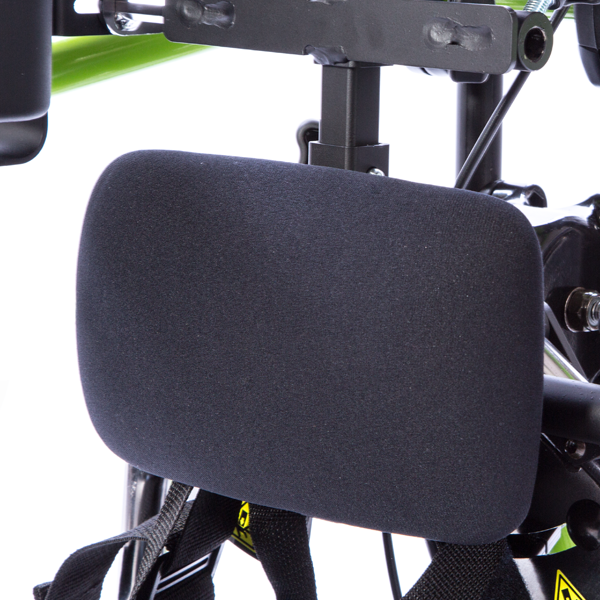

Planar Pelvic Support Pad: |
5" x 7" / 5" x 9" |
Form to Fit Pelvic Support Pad: |
5" x 7" / 5" x 9" |
Planar Upper Body Support Pad: |
5" x 7" / 5" x 9" / 7" x 7" / 7" x 9" |
Form to Fit Upper Body Support Pad: |
5" x 10" / 5" x 12" / 7" x 10" / 7" x 12" |
Chest Pad: |
3"H x 8"W |
Chest Strap (Pad Size): |
5" x 8" |
Chest Strap - User Circumference: |
Up to approx 24" |
X-Style Chest Vest - Extra Small: |
11"L x 9.5"W |
X-Style Chest Vest - Small: |
14.5"L x 10.5"W |

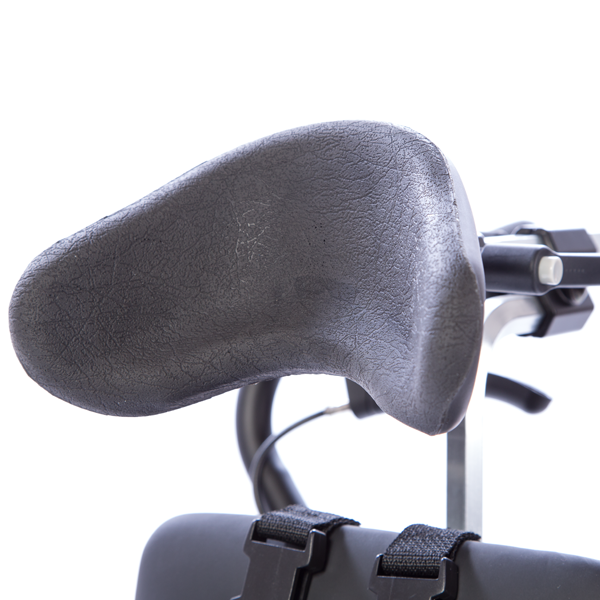

Head Support - Height Range: |
8" |
Head Support - Depth Range: |
-2.5" to +1.5" |
Head Support Cushion Size - Extra Small: |
5"H x 8"W |
Head Support Cushion Size - Small: |
6"H x 10"W |
Flat Headrest: |
5"H x 7"W |
Form-to-Fit Head Support Height: |
5" |
Form-to-Fit Head Support Width: |
10" |
Positioning Belt - Hip Circumference |
Up to approx. 24" |
