Loading...Jazzy Select

Anti -Tip / Front Suspension
- Used Prior To Sn J8304406001c30
  - Anti-tip Assembly W/Motor - GC/GC2 Gen 1
- Used From Sn J8304406001c30 Through Sn J8333407001c30
  - Anti-tip Assembly W/Motor - GC/GC2, Gen 2
- Used On Models With Serial Number Ending In C60
  - Anti-tip Assembly W/Motor - GC3, Low Cost, Group 2
- Used On Or After Sn J8305810031jd0
  - Anti-tip Assembly W/Motor - GC3 (Black Wheels)
- Used From Sn J8333407001c30 Through Sn J8305810031jd0
  - Anti-tip Assembly W/Motor - GC/GC2, Gen 3
Articulating Beam / Casters
- Used On Or After Sn J8305810031jd0, Black Casters
  - Articulating Beam Assembly - Gen. 2, Black Wheels
- Used Prior To Sn J8305810031jd0, Gray Casters
  - Articulating Beam Assembly - Gen 1, Gray Wheels
Battery
- BAT1704611-P - U1, GEL, Interceptor
Battery Charger (Off Board)
- 3 Amp Charger Used On Or After Serial Number J8331507001c30
  - Off-board Charger - Domestic, 3-amp Battery Maximizer
- Units Manufactured On Or After Serial Number J8331507001c30, (3 Amp Tru-Power Charger)
  - Off-board Charger - Domestic, 3-amp Battery Maximizer
- Units Manufactured Prior To Serial Number J8331507001c30, (5 Amp Universal Charger)
  - Off-board Charger - Domestic, 5-amp Merits
Decal Package
- Decal Package
Drive Wheels
- Used From Sn J8304406001c30 To Sn J8305810031jd0
  - Wheel Assembly - Flat-free, Gen 2
- Used Prior To Sn J8304406001c30
  - Wheel Assembly - Flat-free, Gen 1
- Used On Or After Sn J8305810031jd0
  - Wheel Assembly - Flat-free, Gen. 3
Electronic (Utility) Tray
- Gc 1, Units Manufactured Prior To Serial Number J8307807126c30 & J8308607001c30 Through J8310007045c30
  - Electronics Assembly - GC, Gen 1
- Gc 1, Units Manufactured From Serial Number J8307807126c30 Through J8308407460c30 & J8310007046c30 Through J8325208211c30
  - Electronics Assembly - GC, Gen 2
- Gc3 Used On Units With Serial Number Ending In C60
  - Electronics Assembly - GC3, Low Cost, Group 2
- Gc 3, Units Manufactured On Or After The 058 Day Of 2010, J8305810031jd0
  - Electronics Assembly - GC3
- Gc 2, Units Manufactured On Or After Serial Number J8325208211c30
  - Electronics Assembly - GC2
Footrest Platform
- Units Manufactured On Or After Serial Number J8333509001jdo, Large Stamped
  - Foot Platform Assembly - Gen 3, Large Stamped
- Used On Units With Serial Number Ending In C60
  - Foot Platform Assembly - Low Cost, Group 2
- Units Manufactured From Serial Number J8301907181c30 Through J8333509001jdo, Small Stamped
  - Foot Platform Assembly - Gen 2, Small Stamped
- Units Manufactured Prior To Serial Number J8301907181c30
  - Foot Platform Assembly - Gen 1
Joystick (Master Controls)
- Joystick (Master Controls)
  - Used Prior To Sn J8307807126c30 & From Sn J8308607001c30 Through Sn J8310007045c30
    - Controller Assembly - GC, Version 1
  - Used On Or After Sn J8325208211c30
    - Controller Assembly - GC2/GC3
  - Used From Sn J8307807126c30 Through Sn J8308407460c30 & From Sn J8310007046c30 Through Sn J8325208211c30
    - Controller Assembly - GC, Version 2
- Mounting Brackets
  - Swing Away
    - Brackets & Components
      - Swing-away Joystick Brackets And Components
    - Joystick & Controller Mounts
      - Swing-away Joystick Mounts
    - Complete Assy., 7 In. Ext.
      - Complete 7" Swing-away Joystick Mounting Brackets
    - Complete Assy., 4 In. Ext.
      - Complete 4" Swing-away Joystick Mounting Brackets
  - Inline
    - PG Drives Inline Controller Brackets
Main Frame / Seat Post
- Units Manufactured From Serial Number J8313507310c30 Through J8319609001c30
  - Main Frame Assembly - Gen 3, Bolt-on/Clover Leaf Seat Post
- Units Manufactured From Serial Number J8303207126c30 Through J8313507310c30
  - Main Frame Assembly - Gen 2, Bolt-on Seat Post
- Units Manufactured Prior To The 032 Day Of 2007, J8303207126c30
  - Main Frame Assembly - Gen 1
- Units Manufactured On Or After The 196 Day Of 2009, J8319609001c30
  - Main Frame Assembly - Gen 4, 3 Hole Seat Post/Clover Leaf
Motors / Freewheel
- Select Series With GC/GC2/GC3 Connections
Owners Package
- Owner's Package
Seat Mounting
- Seat Frame Platform, Upholstered Seat, W/ Charger Bag
  - Seat Frame Assy - Upholstered Seating With Charger Bag
- Seat Frame Platform, Clover Leaf , Upholstered Seat
  - Seat Frame Assy - Clover Leaf
- Seat Frame Platform, Upholstered Seat, With Out Charger Bag
  - Seat Frame Assy - Upholstered Seating Without Charger Bag
- Seat Frame Platform, Molded Plastic Seat
  - Seat Frame Assy - Contour Lite
Shroud / Battery Cover
- Units Manufactured Prior To Serial Number J8320109024jd0
  - Shroud Assembly Gen. 1
- Used On Units With Serial Number Ending In C60
  - Shroud Assembly - Low Cost, Group 2
- Units Manufactured On Or After Serial Number J8320109024jd0
  - Shroud Assembly Gen. 2

Jazzy Select

Name: Jazzy Select: Seat Frame Assy - Upholstered Seating Without Charger Bag
Manufacturer: Pride Mobility

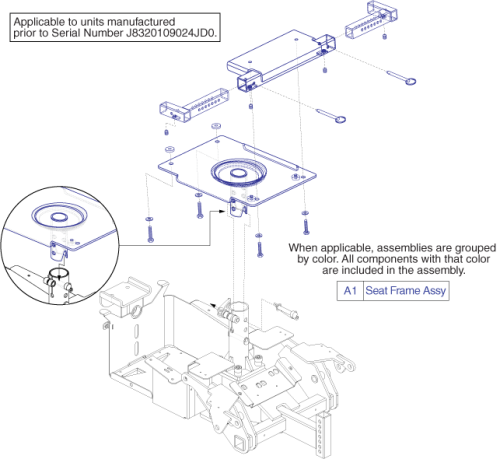

Seat Frame Assy - Upholstered Seating Without Charger Bag parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Price	UOM	Buy
A1	FRMASMB11003	SEAT FRAME, ASSY, PLATFORM, UPHOLSTERED SEAT, SELECT	$190.40	EA
