Catalyst 5 Replacement Parts by Ki Mobility

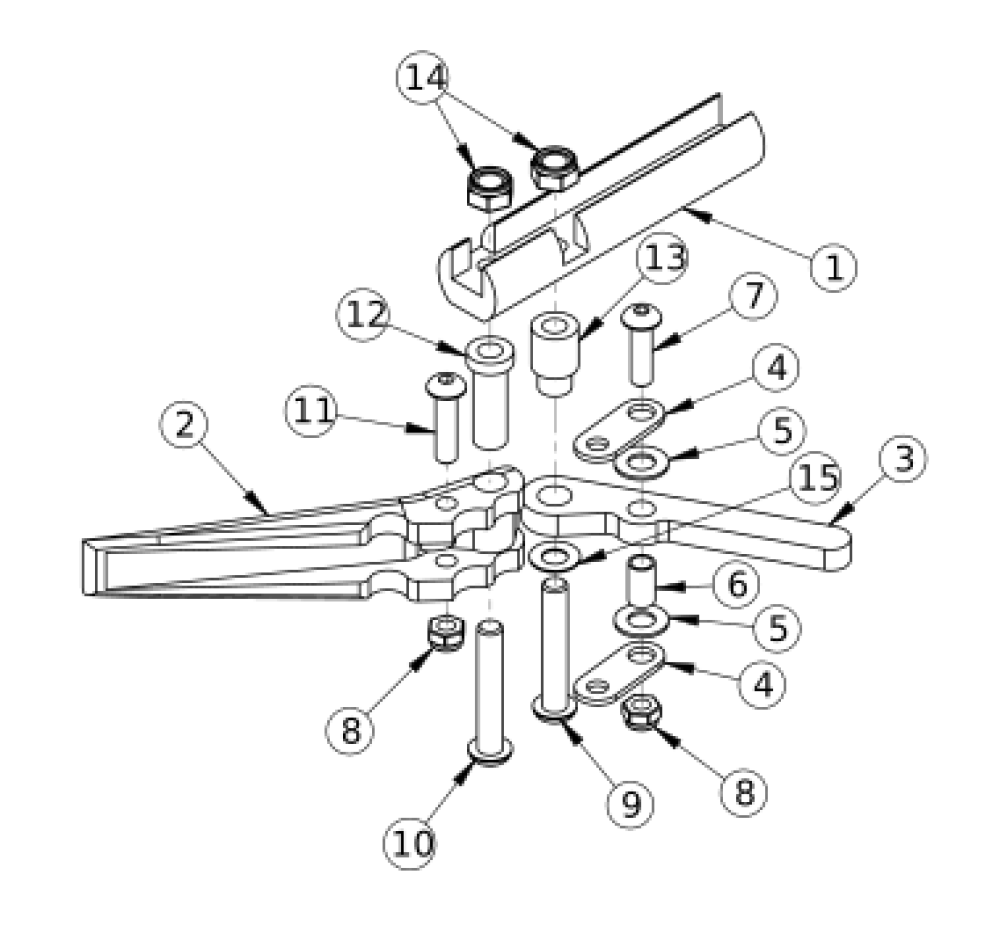

Name: Catalyst 5: Short Thro Scissor Wheel Lock
Manufacturer: Ki Mobility

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM
1a, 2 - 15	506657	Short Thro Scissor Wheel Lock Assembly with Instruction, Left- This kit contains 102544 wheel lock along with an instruction for reversing the wheel lock.	This kit contains 102544 wheel lock along with an instruction for reversing the wheel lock.	$101.96	EA
1b, 2 - 15	506658	Short Thro Scissor Wheel Lock Assembly with Instruction, Right- This kit contains 102546 wheel lock along with an instruction for reversing the wheel lock.	This kit contains 102546 wheel lock along with an instruction for reversing the wheel lock.	$101.96	EA
1a, 1b, 2 - 15	500993	Wheel Lock Short Thro Scissor Assembly with Instruction, PAIR		$203.92	EA
1a	000364L	Scissor Lock Mount Bar Left		$10.33	EA
1b	000364R	Scissor Lock Mount Bar Right		$10.33	EA
2	000365	Scissor Lock Handle		$12.18	EA
3	000366	Scissor Lock Brake Arm		$18.76	EA
4	000367	Scissor Lock Link		$3.83
5	000369	Flat Washer .5 x .257 x .0032 Plastic		$1.02
6	000368	Scissor Lock Bushing		$7.51	EA
7	101716	M5 x 16 SHCS Blk Zn		$1.10	EA
8	100657	M5 Nylock Nut Blk Zn		$0.56	EA
9	101119	M6 X 32 BHCS bright		$1.18	EA
10	100797	M6 x 40 BHCS BLK ZC		$1.10	EA
11	101560	M5 x 30 BTN SHCS ZC		$2.21	EA
12	000370	Scissor Lock Pivot Bushing		$3.83	EA
13	000371	Scissor Lock Arm Bushing		$3.76	EA
14	100658	M6 Nylock Nut Blk Zn		$1.10	EA
15	000372	Scissor Lock Disc Spring		$2.48	EA
