Name: Axiom Custom Seating: Snap Lock Clamps For Seat
Manufacturer: Ki Mobility

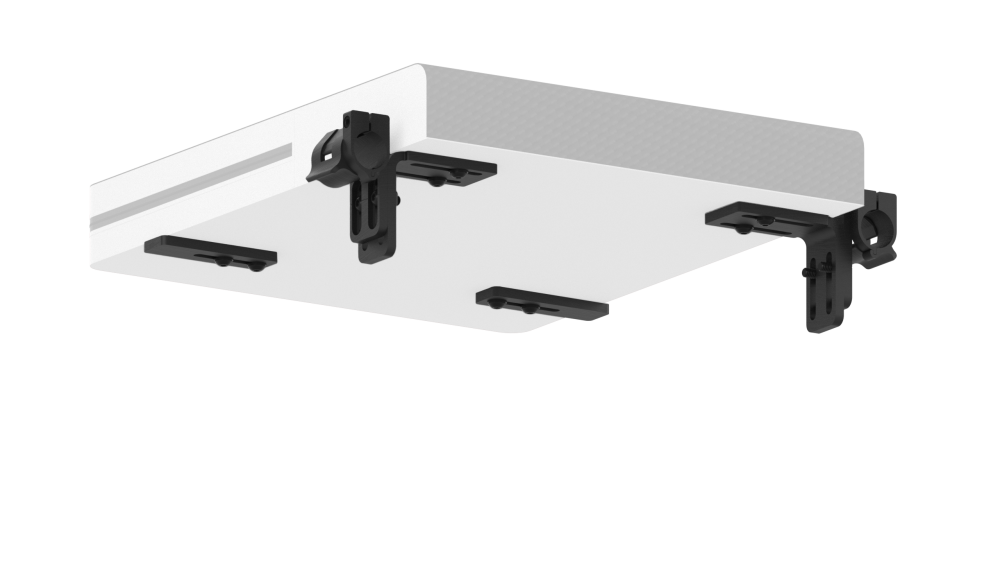

Snap Lock Clamps For Seat parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 7, 9 - 11, 13 123185 Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 3" L-Bracket, 90°
$206.94
EA
1, 8 - 11, 13 123186 Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90°
$196.74
EA
2, 7, 9 - 11, 13 123188 Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 3" L-Bracket, 90°
$206.94
EA
2, 8 - 11, 13 123189 Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90°
$196.74
EA
3, 8 - 11, 13 123241 Snap Lock Hardware, 1" Clamp Assy, Low Profile, 1 1/2" L-Bracket, 90°
$186.54
EA
4 - 5, 9 - 11, 14 123191 Snap Lock Hardware, 1" Clamp Assy, 2-3/4" L-Bracket, 90°
$206.94
EA
4, 6, 9 - 11, 14 123192 Snap Lock Hardware, 1" Clamp Assy, 3" L-Bracket, 90°
$195.72
EA
1.0 104641 Snap Lock Hardware, Clamp, Low Profile, 3/4"
$90.78
EA
2.0 104610 Snap Lock Hardware, Clamp, Low Profile, 7/8"
$90.78
EA
3.0 104550 Snap Lock Hardware, Clamp, Low Profile, 1"
$80.58
EA
4.0 104693 Snap Lock Hardware, Clamp, 1"
$111.18
EA
5.0 104813 T/F Hardware, Slotted Adjustable Bracket, 2 3/4", 90°
$43.86
EA
6.0 104865 T/F Hardware, Slotted Adjustable Bracket, 3", 90°
$32.64
EA
7.0 104853 T/F Hardware, Slotted Adjustable Bracket, Low Profile, 3", 90°
$67.32
EA
8.0 104877 T/F Hardware, Slotted Adjustable Bracket, Low Profile, 1 1/2", 90°
$57.12
EA
9.0 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
10.0 104028 1/4-20 X 3/4 Stainless Button Head Cap Screw
$5.82
EA
11.0 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
12.0 104872 Anti-Rotation Slot Nut, 1", Threaded
$26.52
EA
13.0 104876 Anti-Rotation Slot Nut, 3/4", Threaded
$23.46
EA
