Name: Axiom Custom Seating: Vertical Release, Removable
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

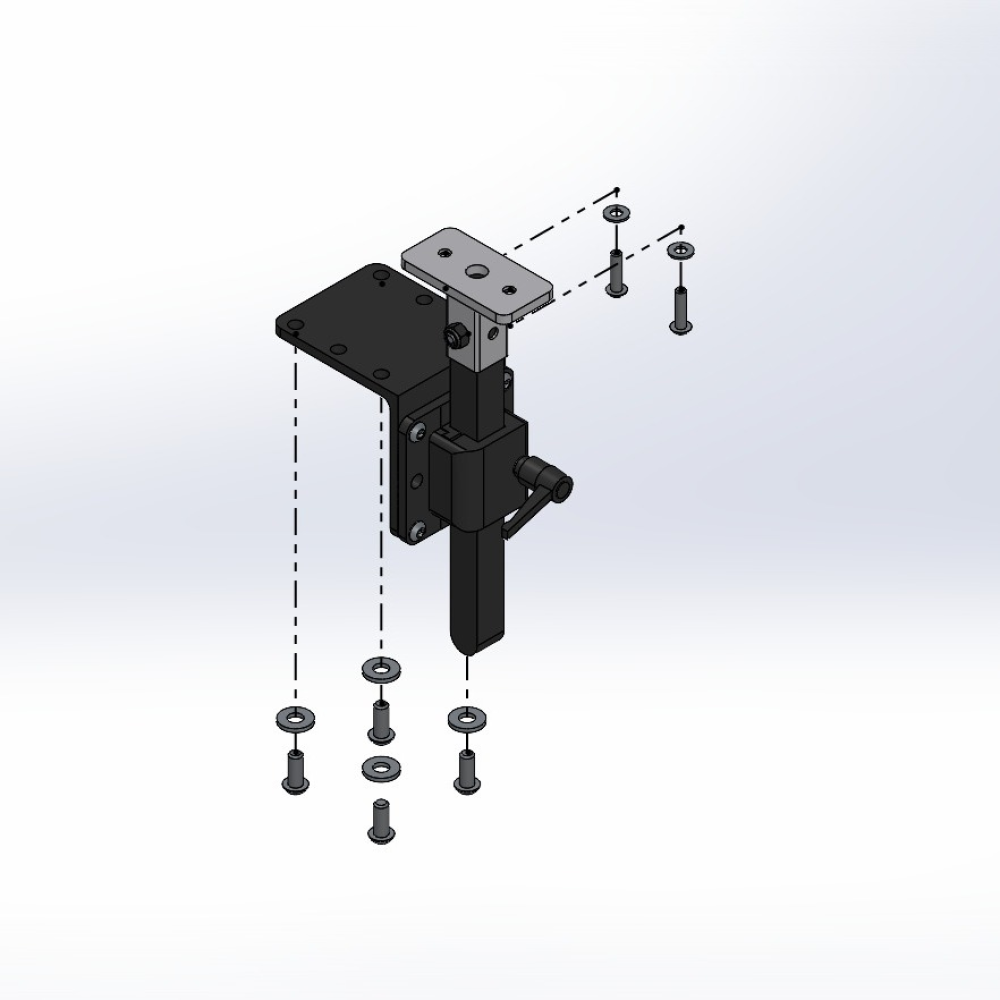

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 5 - 8 | 123502 | Medial Thigh Hardware Assy: Vertical Release, Child Top Plate, Seat 1.5" - 4.5" |
$305.26
|
EA |
|
|
| 2, 5 - 8 | 123503 | Medial Thigh Hardware Assy: Vertical Release, 2-Hole Top Plate, Seat 1.5" - 4.5" |
$315.46
|
EA |
|
|
| 3, 5 - 8 | 123504 | Medial Thigh Hardware Assy: Vertical Release, Short Top Plate, Seat 1.5" - 4.5" |
$315.46
|
EA |
|
|
| 4 - 8 | 123505 | Medial Thigh Hardware Assy: Vertical Release, Long Top Plate, Seat 1.5" - 4.5" |
$315.46
|
EA |
|
|
| 1 | 14401 | Medial Thigh Hardware: Vertical Release, Child Top Plate, Seat 1.5" - 4.5"- For 1.5-4.5" Seat Thickness & 2"-3" W Pad | For 1.5-4.5" Seat Thickness & 2"-3" W Pad |
$268.07
|
EA |
|
| 2 | 14404 | Medial Thigh Hardware: Vertical Release, 2-Hole Top Plate, Seat 1.5" - 4.5"- For 1.5-4.5" Seat Thickness & 2"-3" W Pad | For 1.5-4.5" Seat Thickness & 2"-3" W Pad |
$268.07
|
EA |
|
| 3 | 14402 | Medial Thigh Hardware: Vertical Release, Short Top Plate, Seat 1.5" - 4.5"- For 1.5-4.5" Seat Thickness & 3"-4" W Pad | For 1.5-4.5" Seat Thickness & 3"-4" W Pad |
$268.07
|
EA |
|
| 4 | 14403 | Medial Thigh Hardware: Vertical Release, Long Top Plate, Seat 1.5" - 4.5"- For 1.5-4.5" Seat Thickness & 3"-5" W Pad | For 1.5-4.5" Seat Thickness & 3"-5" W Pad |
$268.07
|
EA |
|
| 5 | 104032 | 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Mounting to Solid Seat | For Mounting to Solid Seat |
$2.04
|
|
|
| 6 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 7 | 107159 | 10-32 X 3/4 18-8 BSHCS BLKOX- For Mounting Pad to Top Plate | For Mounting Pad to Top Plate |
$2.00
|
EA |
|
| 8 | 104045 | #10 STAINLESS STEEL FLAT WASHER |
$3.06
|
EA |
|
