Axiom Custom Seating

Name: Axiom Custom Seating: Push Button Swing Away
Manufacturer: Ki Mobility

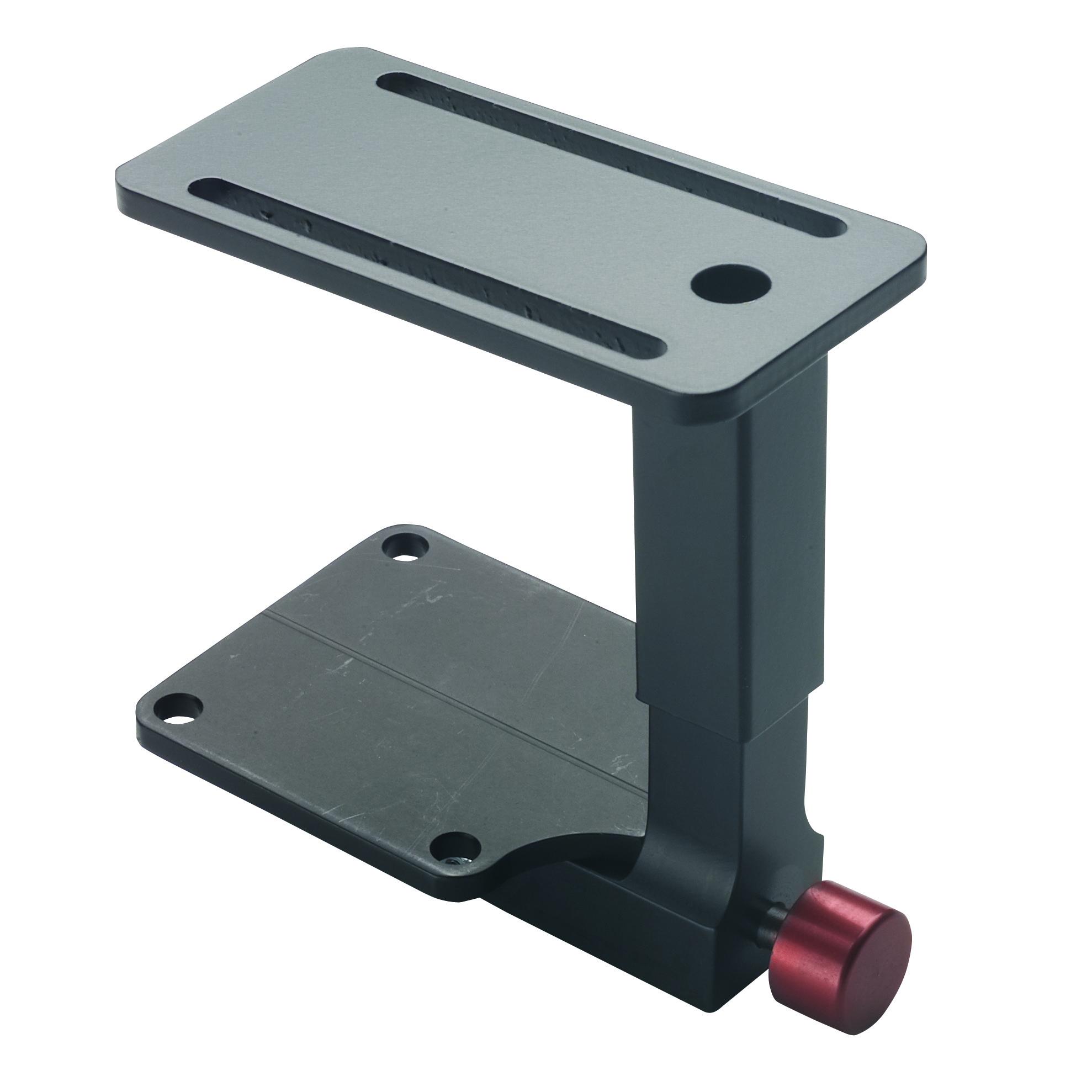

Push Button Swing Away parts diagram
(Click on image to enlarge)

Attachments:
Pos. Part # Description Price UOM Buy
1, 13 - 16 123490 Medial Thigh Hardware Assy: Push Button, Swing Away, Child Top Plate, Seat 1.5" - 2"
$329.53
EA
2, 13 - 16 123491 Medial Thigh Hardware Assy: Push Button, Swing Away, Child Top Plate, Seat 2" - 3"
$329.53
EA
3, 13 - 16 123492 Medial Thigh Hardware Assy: Push Button, Swing Away, Child Top Plate, Seat 3.5" - 4.5"
$329.53
EA
4, 13 - 16 123493 Medial Thigh Hardware Assy: Push Button, Swing Away, 2-Hole Top Plate, Seat 1.5" - 2"
$329.53
EA
5, 13 - 16 123494 Medial Thigh Hardware Assy: Push Button, Swing Away, 2-Hole Top Plate, Seat 2" - 3"
$329.53
EA
6, 13 - 16 123495 Medial Thigh Hardware Assy: Push Button, Swing Away, 2-Hole Top Plate, Seat 3.5" - 4.5"
$329.53
EA
7, 13 - 16 123496 Medial Thigh Hardware Assy: Push Button, Swing Away, Short Top Plate, Seat 1.5" - 2"
$339.73
EA
8, 13 - 16 123497 Medial Thigh Hardware Assy: Push Button, Swing Away, Short Top Plate, Seat 2" - 3"
$339.73
EA
9, 13 - 16 123498 Medial Thigh Hardware Assy: Push Button, Swing Away, Short Top Plate, Seat 3.5" - 4.5"
$339.73
EA
10, 13 - 16 123499 Medial Thigh Hardware Assy: Push Button, Swing Away, Long Top Plate, Seat 1.5" - 2"
$339.73
EA
11, 13 - 16 123500 Medial Thigh Hardware Assy: Push Button, Swing Away, Long Top Plate, Seat 2" - 3"
$339.73
EA
12 - 16 123501 Medial Thigh Hardware Assy: Push Button, Swing Away, Long Top Plate, Seat 3.5" - 4.5"
$339.73
EA
1 14341 Medial Thigh Hardware: Push Button, Swing-Away, Child Top Plate, Seat 1.5" - 2"- For 1.5-2" Seat Thickness & 2"-3" W Pad
$291.87
EA
2 14342 Medial Thigh Hardware: Push Button, Swing-Away, Child Top Plate, Seat 2" - 3"- For 2"-3" Seat Thickness & 2"-3" W Pad
$291.87
EA
3 14343 Medial Thigh Hardware: Push Button, Swing-Away, Child Top Plate, Seat 3.5" - 4.5"- For 3.5-4.5" Seat Thickness & 2"-3" W Pad
$291.87
EA
4 14331 Medial Thigh Hardware: Push Button, Swing-Away, 2-Hole Top Plate, Seat 1.5" - 2"- For 1.5-2" Seat Thickness & 2"-3" W Pad
$291.87
EA
5 14332 Medial Thigh Hardware: Push Button, Swing-Away, 2-Hole Top Plate, Seat 2" - 3"- For 2"-3" Seat Thickness & 2"-3" W Pad
$291.87
EA
6 14333 Medial Thigh Hardware: Push Button, Swing-Away, 2-Hole Top Plate, Seat 3.5" - 4.5"- For 3.5-4.5" Seat Thickness & 2"-3" W Pad
$291.87
EA
7 14311 Medial Thigh Hardware: Push Button, Swing-Away, Short Top Plate, Seat 1.5" - 2"- For 1.5-2" Seat Thickness & 3"-4" W Pad
$291.87
EA
8 14312 Medial Thigh Hardware: Push Button, Swing-Away, Short Top Plate, Seat 2" - 3"- For 2"-3" Seat Thickness & 3"-4" W Pad
$291.87
EA
9 14313 Medial Thigh Hardware: Push Button, Swing-Away, Short Top Plate, Seat 3.5" - 4.5"- For 3.5-4.5" Seat Thickness & 3"-4" W Pad
$291.87
EA
10 14321 Medial Thigh Hardware: Push Button, Swing-Away, Long Top Plate, Seat 1.5" - 2"- For 1.5-2" Seat Thickness & 3"-5" W Pad
$291.87
EA
11 14322 Medial Thigh Hardware: Push Button, Swing-Away, Long Top Plate, Seat 2" - 3"- For 2"-3" Seat Thickness & 3"-5" W Pad
$291.87
EA
12 14323 Medial Thigh Hardware: Push Button, Swing-Away, Long Top Plate, Seat 3.5" - 4.5"- For 3.5-4.5" Seat Thickness & 3"-5" W Pad
$291.87
EA
13 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Mounting to Solid Seat
$2.04
14 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
15 107159 10-32 X 3/4 18-8 BSHCS BLKOX- For Mounting Pad to Top Plate
$2.00
EA
16 104045 #10 STAINLESS STEEL FLAT WASHER
$3.06
EA
