Axiom Custom Seating

Name: Axiom Custom Seating: Push Button Modular Removable, Offset
Manufacturer: Ki Mobility

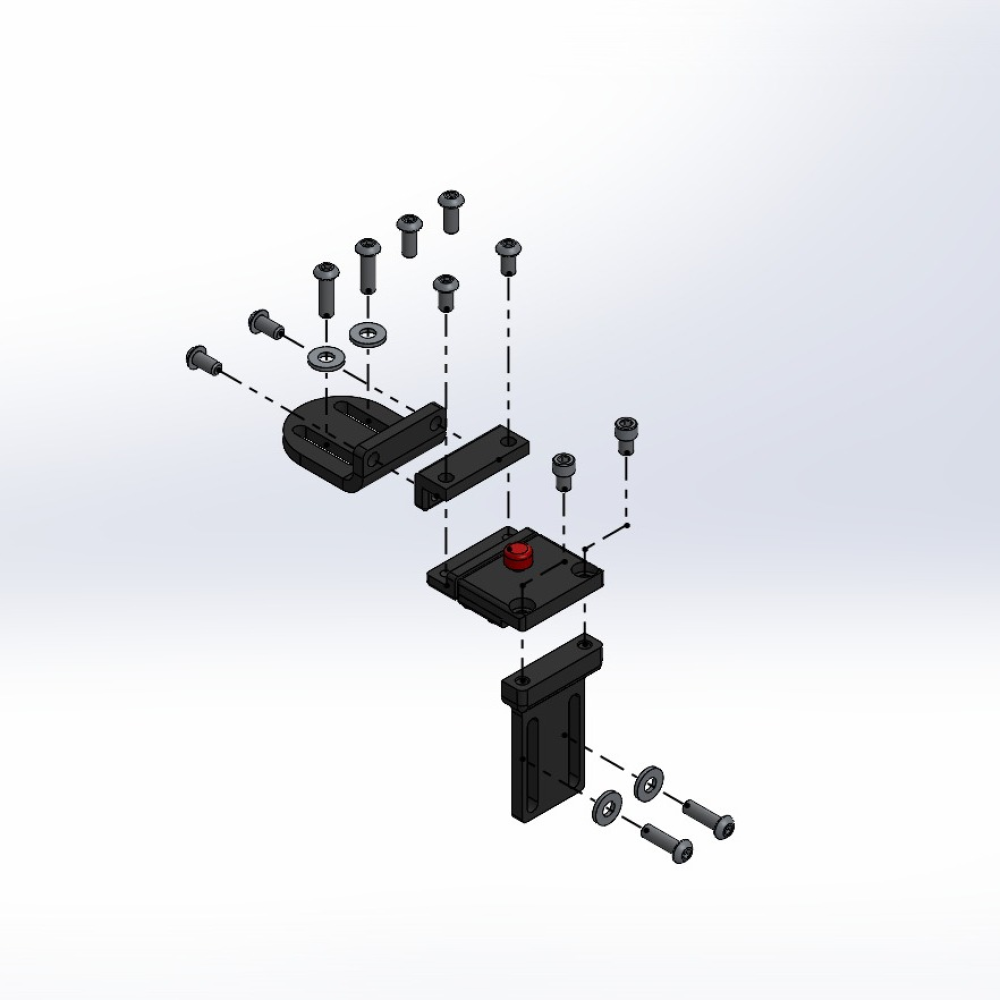

Push Button Modular Removable, Offset parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 2, 4 - 5, 8 - 12 123426 Push Button Modular Removable Assy, 1" Offset, 90°
$335.38
EA
1 - 2, 4, 7 - 12 123427 Push Button Modular Removable Assy, 1" Offset, 70°
$329.86
EA
1, 3 - 4, 6, 8 - 12 123428 Push Button Modular Removable Assy, 2" Offset, 90°
$335.38
EA
1, 3 - 4, 7 - 12 123429 Push Button Modular Removable Assy, 2" Offset, 70°
$329.86
EA
1.0 106217 Lateral, Modular Offset Mounting Plate, 2 1/2"- FOR BOTH 1" & 2" HORIZ. OFFSET
$23.46
EA
2.0 104345 Lateral, Modular Offset Adapter, 1"
$82.73
EA
3.0 104346 Lateral, Modular Offset Adapter, 2"
$82.73
EA
4.0 104434 Lateral, Push Button Quick Release Mount
$137.89
EA
5.0 104264 Lateral, Planar Mount- For 90° mounting Only
$55.16
EA
6.0 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
7.0 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
8.0 107157 1/4-20X3/8 18-8 SHCS BLKOX
$3.30
9.0 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw- FOR BOTH 1" & 2" HORIZ. OFFSET
$3.50
EA
10.0 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For metal base Lateral Pad mounting
$2.04
11.0 104038 1/4-20 X 7/8 Stainless Button Head Cap Screw- For wood base Lateral Pad mounting & mounting to seat/back
$1.21
12.0 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
13.0 104971 Track Nut, 1" Spacing
$23.46
EA
