Axiom Custom Seating

Name: Axiom Custom Seating: Push Button Modular Removable, Flush
Manufacturer: Ki Mobility

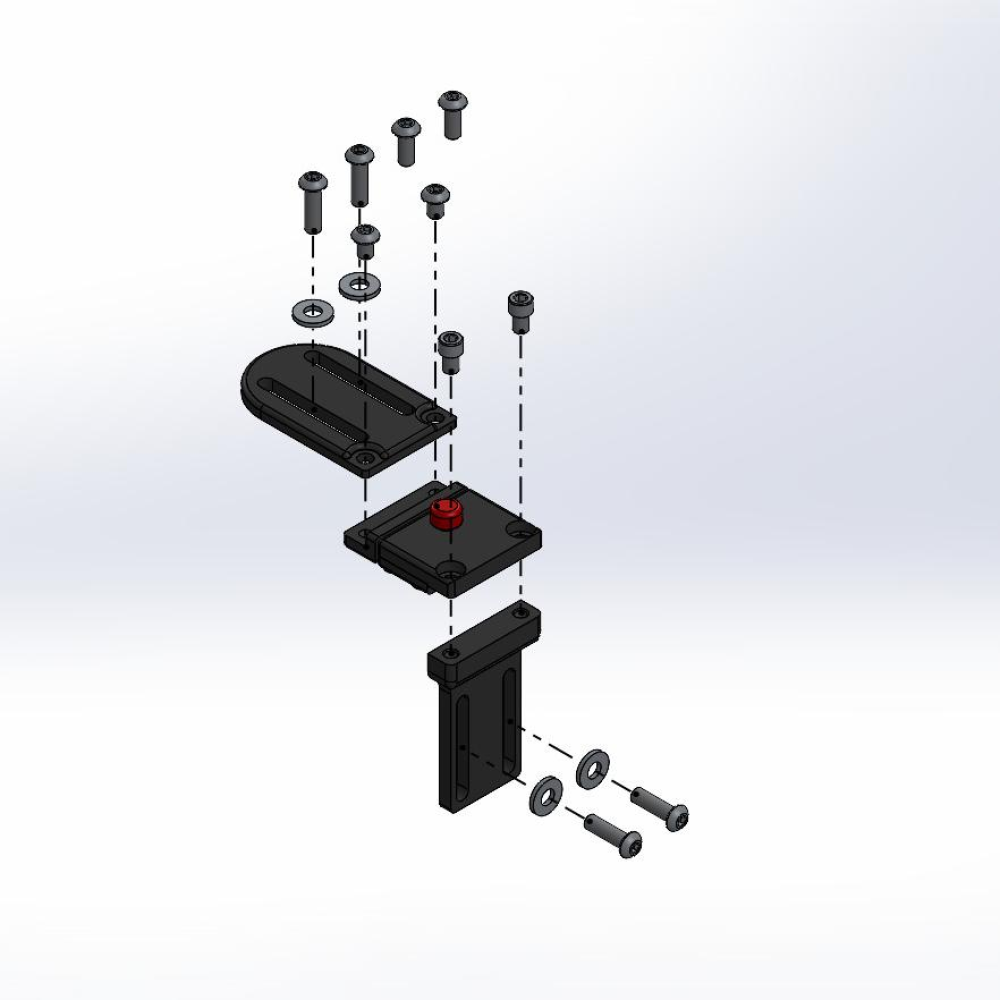

Push Button Modular Removable, Flush parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 5 - 6, 9 - 13 123410 Push Button Modular Removable Assy, Flush, 3" Pad Mount, 90°
$267.79
EA
1, 5, 8 - 13 123411 Push Button Modular Removable Assy, Flush, 3" Pad Mount, 70°
$262.27
EA
2, 5 - 6, 9 - 13 123412 Push Button Modular Removable Assy, Flush, 5" Pad Mount, 90°
$273.04
EA
2, 5, 8 - 13 123413 Push Button Modular Removable Assy, Flush, 5" Pad Mount, 70°
$267.53
EA
3, 5 - 6, 9 - 13 123414 Push Button Modular Removable Assy, Flush, 6" Pad Mount, 90°
$297.52
EA
3, 5, 8 - 13 123415 Push Button Modular Removable Assy, Flush, 6" Pad Mount, 70°
$292.01
EA
4 - 6, 9 - 13 123416 Push Button Modular Removable Assy, Flush, 7" Pad Mount, 90°
$298.54
EA
4 - 5, 8 - 13 123417 Push Button Modular Removable Assy, Flush, 7" Pad Mount, 70°
$293.03
EA
1 104249 Lateral, Modular Flush Pad Mount, 3"
$38.61
EA
2 104250 Lateral, Modular Flush Pad Mount, 5"
$43.86
EA
3 104251 Lateral, Modular Flush Pad Mount, 6"
$68.34
EA
4 104252 Lateral, Modular Flush Pad Mount, 7"
$69.36
EA
5 104434 Lateral, Push Button Quick Release Mount
$137.89
EA
6 104264 Lateral, Planar Mount- For 90° mounting Only
$55.16
EA
7 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
8 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
9 107157 1/4-20X3/8 18-8 SHCS BLKOX
$3.30
10 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw- ALL FLUSH & ADJ PAD MOUNTS ONLY
$3.50
EA
11 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For metal base Lateral Pad mounting
$2.04
12 104038 1/4-20 X 7/8 Stainless Button Head Cap Screw- For wood base Lateral Pad mounting & mounting to seat/back
$1.21
13 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
14 104971 Track Nut, 1" Spacing
$23.46
EA
