Name: Axiom Custom Seating: Swing Away Modular
Manufacturer: Ki Mobility

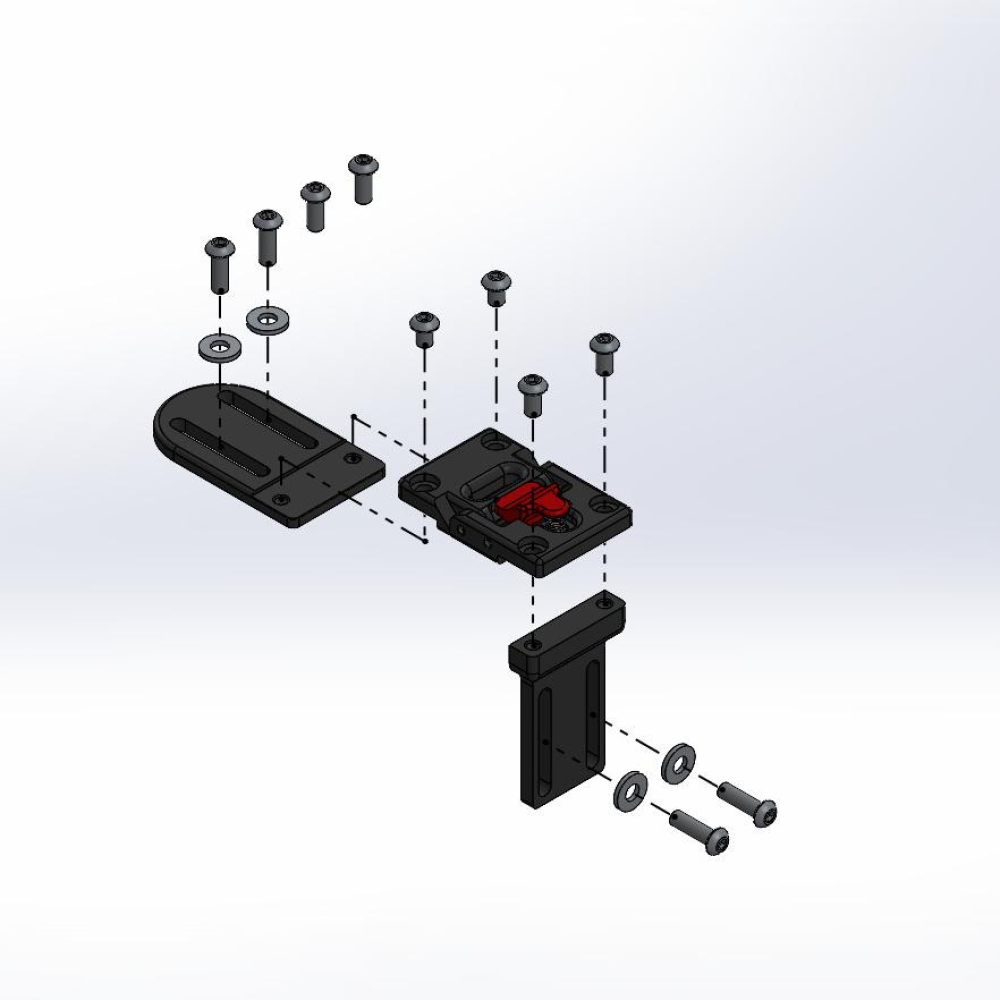

Swing Away Modular parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 7 - 10. 13 - 16 123349 Lateral, Swing Away Modular Assy, 3" Pad Mount, 90°
$322.80
EA
1, 7 - 9, 12 - 16 123350 Lateral, Swing Away Modular Assy, 3" Pad Mount, 70°
$317.28
EA
2, 6 - 10, 13 - 16 123351 Lateral, Swing Away Modular Assy, 3" Flush Pad Mount, 90°
$357.38
EA
2, 6 - 9, 12 - 16 123352 Lateral, Swing Away Modular Assy, 3" Flush Pad Mount, 70°
$351.86
EA
3, 6 - 10, 13 - 16 123353 Lateral, Swing Away Modular Assy, 5" Flush Pad Mount, 90°
$362.63
EA
3, 6 - 9, 12 - 16 123354 Lateral, Swing Away Modular Assy, 5" Flush Pad Mount, 70°
$357.11
EA
4, 6 - 10, 13 - 16 123355 Lateral, Swing Away Modular Assy, 6" Flush Pad Mount, 90°
$387.11
EA
4, 6 - 9, 12 - 16 123356 Lateral, Swing Away Modular Assy, 6" Flush Pad Mount, 70°
$381.59
EA
5, 6 - 10, 13 - 16 123357 Lateral, Swing Away Modular Assy, 7" Flush Pad Mount, 90°
$388.13
EA
5, 6 - 9, 12 - 16 123358 Lateral, Swing Away Modular Assy, 7" Flush Pad Mount, 70°
$382.61
EA
1 104253 Lateral, Swingaway Flush Threaded Pad Mount, 3"
$38.61
EA
2 104249 Lateral, Modular Flush Pad Mount, 3"- Requires Lateral, Swing Away Threaded Interface Adapter (104239)
$38.61
EA
3 104250 Lateral, Modular Flush Pad Mount, 5"- Requires Lateral, Swing Away Threaded Interface Adapter (104239)
$43.86
EA
4 104251 Lateral, Modular Flush Pad Mount, 6"- Requires Lateral, Swing Away Threaded Interface Adapter (104239)
$68.34
EA
5 104252 Lateral, Modular Flush Pad Mount, 7"- Requires Lateral, Swing Away Threaded Interface Adapter (104239)
$69.36
EA
6 104239 Lateral, Swingaway Threaded Interface Adapter- Required for Modular Flush Pad Mounts and 1" & 2" Offset Adapter
$27.58
EA
7 104463 Lateral, Swingaway Modular Quick Release Mount
$183.42
EA
8 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
9 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw- ALL FLUSH & ADJ PAD MOUNTS ONLY
$3.50
EA
10 104264 Lateral, Planar Mount
$55.16
EA
11 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"
$49.64
EA
12 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
13 104038 1/4-20 X 7/8 Stainless Button Head Cap Screw- For Planar Mount to Back/Seat
$1.21
14 104028 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting
$5.82
EA
15 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting
$2.04
16 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
17 104231 Lateral, Swingaway Depth Adapter, 1"- For additional depth/height needed behind Swing Away Hinge
$49.98
EA
18 104240 Lateral, Swingaway Depth Adapter, 2"- For additional depth/height needed behind Swing Away Hinge
$56.10
EA
19 104243 Lateral, Swingaway Depth Adapter, 3"- For additional depth/height needed behind Swing Away Hinge
$60.18
EA
20 104971 Track Nut, 1" Spacing
$23.46
EA
21 104560 Lateral, Modular Track Nut Spacer
$13.26
EA
