loadingLoading... Axiom Custom Seating

Axiom Custom Seating

Name: Axiom Custom Seating: Standard Modular, Offset, All Season
Manufacturer: Ki Mobility

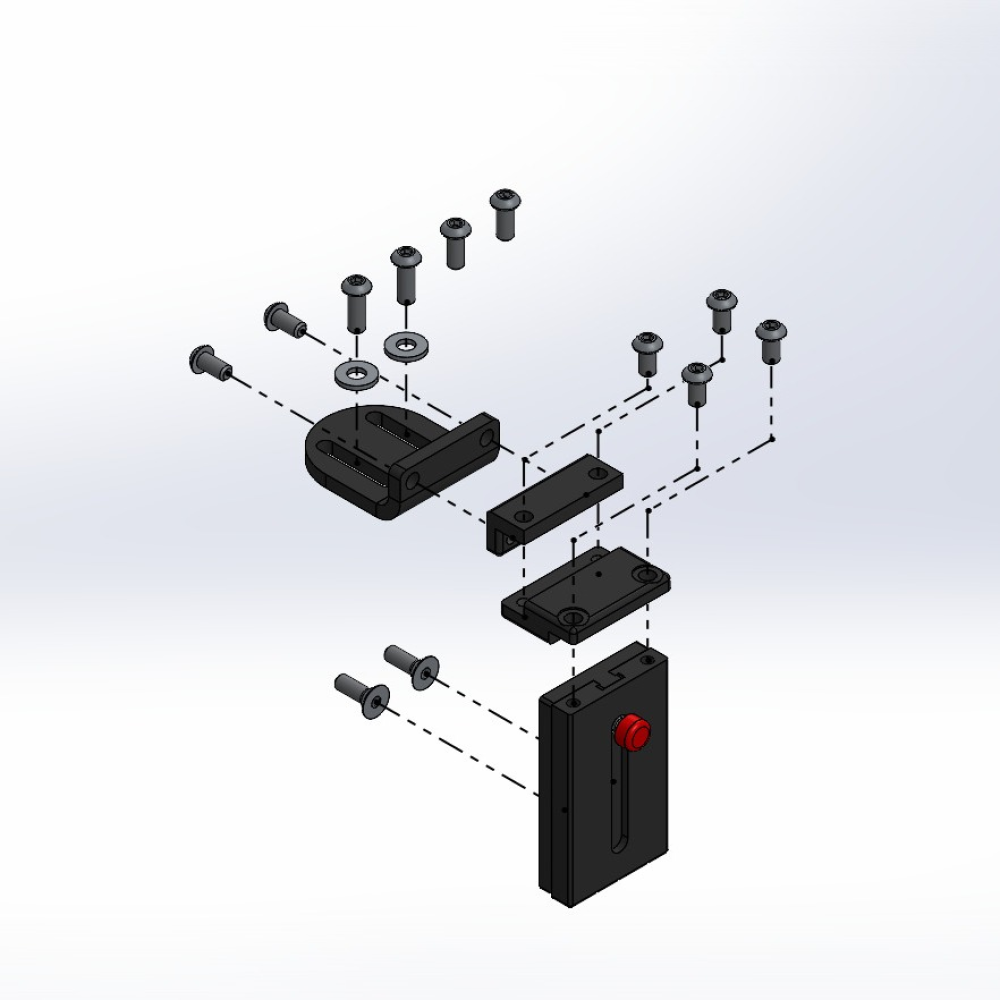

Standard Modular, Offset, All Season parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 2, 4 - 5, 8 - 9, 12 - 14 123337 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 1" Depth, All Season, 90°
$319.70
EA
1 - 2, 4 - 5, 11 - 14 123338 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 1" Depth, All Season, 70°
$322.19
EA
1, 6, 8 - 10, 13 - 15 123339 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 2" Depth, All Season, 90°
$325.82
EA
1, 6, 8, 12 - 15 123340 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 2" Depth, All Season, 70°
$328.31
EA
1, 7 - 10, 13 - 15 123341 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 3" Depth, All Season, 90°
$329.90
EA
1, 7 - 8, 12 - 15 123342 Lateral, Standard Modular Assy, 1" Offset Pad Mount, 3" Depth, All Season, 70°
$332.39
EA
2, 5, 8 - 10, 13 - 15 123343 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 1" Depth, All Season, 90°
$319.70
EA
2, 5, 8, 12 - 15 123344 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 1" Depth, All Season, 70°
$322.19
EA
2, 6, 8 - 10, 13 - 15 123345 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 2" Depth, All Season, 90°
$325.82
EA
2, 6, 8, 12 - 15 123346 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 2" Depth, All Season, 70°
$328.31
EA
2, 7 - 10, 13 - 15 123347 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 3" Depth, All Season, 90°
$329.90
EA
2, 7 - 8, 12 - 15 123348 Lateral, Standard Modular Assy, 2" Offset Pad Mount, 3" Depth, All Season, 70°
$332.39
EA
1 106217 Lateral, Modular Offset Mounting Plate, 2 1/2"- FOR BOTH 1" & 2" HORIZ. OFFSET
$23.46
EA
2 104345 Lateral, Modular Offset Adapter, 1"
$82.73
EA
3 104346 Lateral, Modular Offset Adapter, 2"
$82.73
EA
4 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw- FOR BOTH 1" & 2" HORIZ. OFFSET
$3.50
EA
5 104230 Lateral, Modular Depth Adapter, 1"
$49.98
EA
6 104237 Lateral, Modular Depth Adapter, 2"
$56.10
EA
7 104242 Lateral, Modular Depth Adapter, 3"
$60.18
EA
8 104355 Lateral, All Season Mount
$104.79
EA
9 104038 1/4-20 X 7/8 Stainless Button Head Cap Screw- For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat
$1.21
10 104356 Lateral, All Season Mount, 70°
$104.79
EA
11 104028 1/4-20 X 3/4 Stainless Button Head Cap Screw- For 70° All Season Mount to Adapter & pad mounting
$5.82
EA
12 104029 1/4-20 X 3/4" FLAT HEAD CAP SCREW- For All Season to Back
$3.06
13 104028 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting
$5.82
EA
14 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting
$2.04
15 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
16 104018 1/4-20 X 1/2 Stainless Flat Head Cap Screw- For All Season to Track
$3.37
17 104971 Track Nut, 1" Spacing
$23.46
EA
18 104560 Lateral, Modular Track Nut Spacer
$13.26
EA
