Axiom Custom Seating
Name: Axiom Custom Seating: Standard Modular, Offset
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

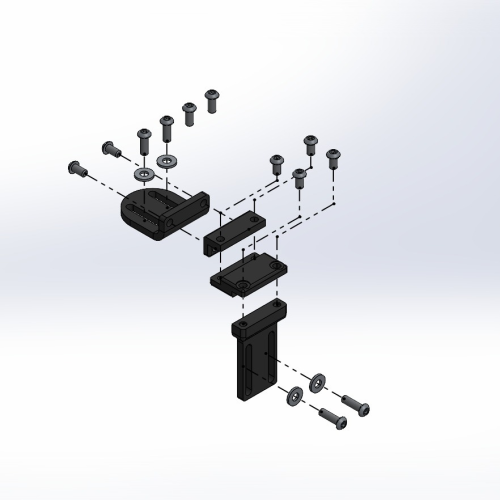

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 2, 4 - 5, 8 - 9, 12 - 14 | 123325 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 1" Depth, 90° |
$263.95
|
EA |
|
|
| 1 - 2, 4 - 5, 11 - 14 | 123326 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 1" Depth, 70° |
$256.00
|
EA |
|
|
| 1, 6, 8 - 10, 13 - 15 | 123327 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 2" Depth, 90° |
$270.07
|
EA |
|
|
| 1, 6, 8, 12 - 15 | 123328 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 2" Depth, 70° |
$262.12
|
EA |
|
|
| 1, 7 - 10, 13 - 15 | 123329 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 3" Depth, 90° |
$274.15
|
EA |
|
|
| 1, 7 - 8, 12 - 15 | 123330 | Lateral, Standard Modular Assy, 1" Offset Pad Mount, 3" Depth, 70° |
$266.20
|
EA |
|
|
| 2, 5, 8 - 10, 13 - 15 | 123331 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 1" Depth, 90° |
$263.95
|
EA |
|
|
| 2, 5, 8, 12 - 15 | 123332 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 1" Depth, 70° |
$256.00
|
EA |
|
|
| 2, 6, 8 - 10, 13 - 15 | 123333 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 2" Depth, 90° |
$270.07
|
EA |
|
|
| 2, 6, 8, 12 - 15 | 123334 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 2" Depth, 70° |
$262.12
|
EA |
|
|
| 2, 7 - 10, 13 - 15 | 123335 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 3" Depth, 90° |
$274.15
|
EA |
|
|
| 2, 7 - 8, 12 - 15 | 123336 | Lateral, Standard Modular Assy, 2" Offset Pad Mount, 3" Depth, 70° |
$266.20
|
EA |
|
|
| 1 | 106217 | Lateral, Modular Offset Mounting Plate, 2 1/2"- FOR BOTH 1" & 2" HORIZ. OFFSET | FOR BOTH 1" & 2" HORIZ. OFFSET |
$23.46
|
EA |
|
| 2 | 104345 | Lateral, Modular Offset Adapter, 1" |
$82.73
|
EA |
|
|
| 3 | 104346 | Lateral, Modular Offset Adapter, 2" |
$82.73
|
EA |
|
|
| 4 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw- FOR BOTH 1" & 2" HORIZ. OFFSET | FOR BOTH 1" & 2" HORIZ. OFFSET |
$3.50
|
EA |
|
| 5 | 104230 | Lateral, Modular Depth Adapter, 1" |
$49.98
|
EA |
|
|
| 6 | 104237 | Lateral, Modular Depth Adapter, 2" |
$56.10
|
EA |
|
|
| 7 | 104242 | Lateral, Modular Depth Adapter, 3" |
$60.18
|
EA |
|
|
| 8 | 104264 | Lateral, Planar Mount |
$55.16
|
EA |
|
|
| 9 | 104038 | 1/4-20 X 7/8 Stainless Button Head Cap Screw- For Planar Mount to Back/Seat | For Planar Mount to Back/Seat |
$1.21
|
|
|
| 10 | 104294 | Lateral, Modular Offset Mounting Plate, 3 1/2" |
$49.64
|
EA |
|
|
| 11 | 104294 | Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting | Must be bent for 70° mounting |
$49.64
|
EA |
|
| 12 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting | For Wood base pad mounting |
$5.82
|
EA |
|
| 13 | 104032 | 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting | For Metal Base Pad Mounting |
$2.04
|
|
|
| 14 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 15 | 104971 | Track Nut, 1" Spacing |
$23.46
|
EA |
|
|
| 16 | 104560 | Lateral, Modular Track Nut Spacer |
$13.26
|
EA |
|
