Name: Axiom Custom Seating: Standard Modular, Flush, All Season
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

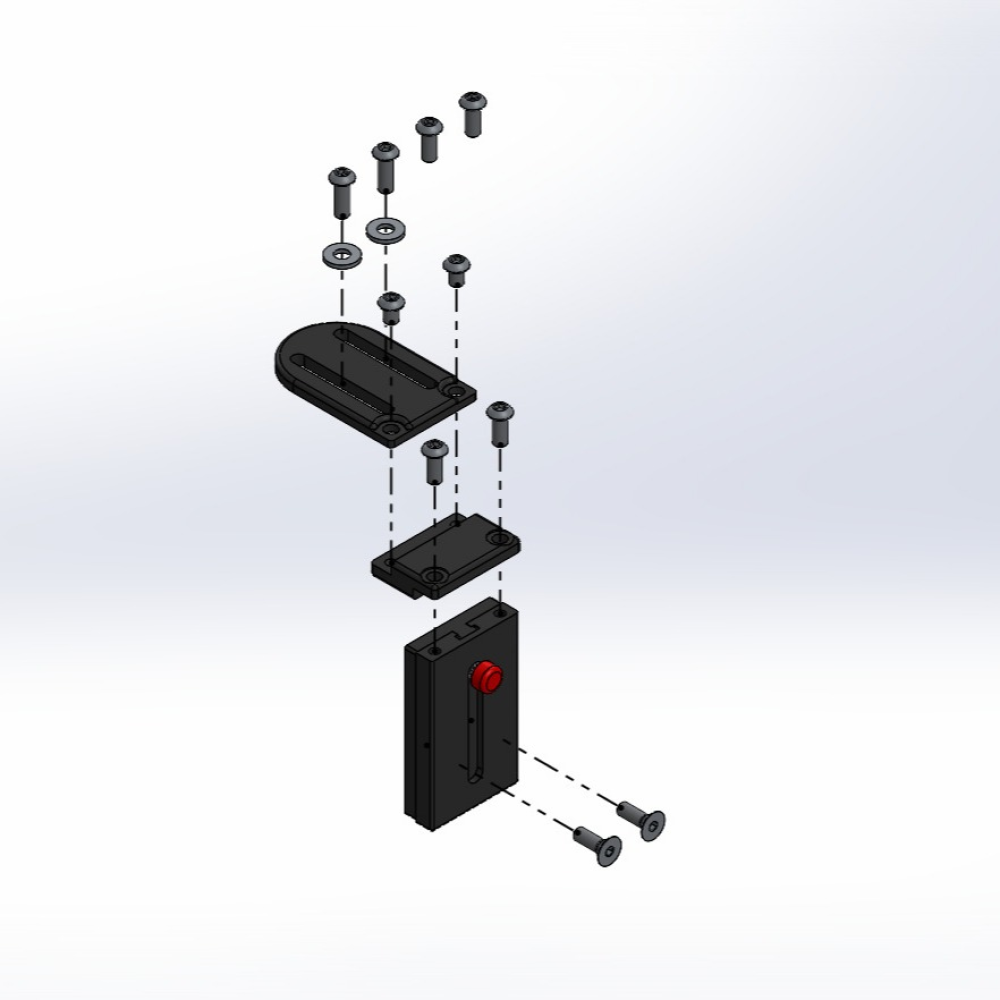

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1, 5, 8 - 10, 13 - 16 | 123301 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 1" Depth, All Season, 90° |
$242.20
|
EA |
|
|
| 1, 5, 8, 11 - 16 | 123302 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 1" Depth, All Season, 70° |
$251.42
|
EA |
|
|
| 1, 6, 8 - 10, 13 - 16 | 123303 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 2" Depth, All Season, 90° |
$248.32
|
EA |
|
|
| 1, 6, 8, 11 - 16 | 123304 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 2" Depth, All Season, 70° |
$257.54
|
EA |
|
|
| 1, 7 - 10, 13 - 16 | 123305 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 3" Depth, All Season, 90° |
$252.40
|
EA |
|
|
| 1, 7 - 8, 11 - 16 | 123306 | Lateral, Standard Modular Assy, 3" Flush Pad Mount, 3" Depth, All Season, 70° |
$261.62
|
EA |
|
|
| 2, 5, 8 - 10, 13 - 16 | 123307 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 1" Depth, All Season, 90° |
$247.45
|
EA |
|
|
| 2, 5, 8, 11 - 16 | 123308 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 1" Depth, All Season, 70° |
$256.67
|
EA |
|
|
| 2, 6, 8 - 10, 13 - 16 | 123309 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 2" Depth, All Season, 90° |
$253.57
|
EA |
|
|
| 2, 6, 8, 11 - 16 | 123310 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 2" Depth, All Season, 70° |
$262.79
|
EA |
|
|
| 2, 7 - 10, 13 - 16 | 123311 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 3" Depth, All Season, 90° |
$257.65
|
EA |
|
|
| 2, 7 - 8, 11 - 16 | 123312 | Lateral, Standard Modular Assy, 5" Flush Pad Mount, 3" Depth, All Season, 70° |
$266.87
|
EA |
|
|
| 3, 5, 8 - 10, 13 - 16 | 123313 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 1" Depth, All Season, 90° |
$271.93
|
EA |
|
|
| 3, 5, 8, 11 - 16 | 123314 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 1" Depth, All Season, 70° |
$281.15
|
EA |
|
|
| 3, 6, 8 - 10, 13 - 16 | 123315 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 2" Depth, All Season, 90° |
$278.05
|
EA |
|
|
| 3, 6, 8, 11 - 16 | 123316 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 2" Depth, All Season, 70° |
$287.27
|
EA |
|
|
| 3, 7 - 10, 13 - 16 | 123317 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 3" Depth, All Season, 90° |
$282.13
|
EA |
|
|
| 3, 7 - 8, 11 - 16 | 123318 | Lateral, Standard Modular Assy, 6" Flush Pad Mount, 3" Depth, All Season, 70° |
$291.35
|
EA |
|
|
| 4 - 5, 8 - 10, 13 - 16 | 123319 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 1" Depth, All Season, 90° |
$272.95
|
EA |
|
|
| 4 - 5, 8, 11 - 16 | 123320 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 1" Depth, All Season, 70° |
$282.17
|
EA |
|
|
| 4, 6, 8 - 10, 13 - 16 | 123321 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 2" Depth, All Season, 90° |
$279.07
|
EA |
|
|
| 4, 6, 8, 11 - 16 | 123322 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 2" Depth, All Season, 70° |
$288.29
|
EA |
|
|
| 4, 7 - 10, 13 - 16 | 123323 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 3" Depth, All Season, 90° |
$283.15
|
EA |
|
|
| 4, 7 - 8, 11 - 16 | 123324 | Lateral, Standard Modular Assy, 7" Flush Pad Mount, 3" Depth, All Season, 70° |
$292.37
|
EA |
|
|
| 1 | 104249 | Lateral, Modular Flush Pad Mount, 3" |
$38.61
|
EA |
|
|
| 2 | 104250 | Lateral, Modular Flush Pad Mount, 5" |
$43.86
|
EA |
|
|
| 3 | 104251 | Lateral, Modular Flush Pad Mount, 6" |
$68.34
|
EA |
|
|
| 4 | 104252 | Lateral, Modular Flush Pad Mount, 7" |
$69.36
|
EA |
|
|
| 5 | 104230 | Lateral, Modular Depth Adapter, 1" |
$49.98
|
EA |
|
|
| 6 | 104237 | Lateral, Modular Depth Adapter, 2" |
$56.10
|
EA |
|
|
| 7 | 104242 | Lateral, Modular Depth Adapter, 3" |
$60.18
|
EA |
|
|
| 8 | 104031 | 1/4-20 X 3/8 Stainless Button Head Cap Screw- ALL FLUSH & ADJ PAD MOUNTS ONLY | ALL FLUSH & ADJ PAD MOUNTS ONLY |
$3.50
|
EA |
|
| 9 | 104355 | Lateral, All Season Mount |
$104.79
|
EA |
|
|
| 10 | 104038 | 1/4-20 X 7/8 Stainless Button Head Cap Screw- For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat | For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat |
$1.21
|
|
|
| 11 | 104356 | Lateral, All Season Mount, 70° |
$104.79
|
EA |
|
|
| 12 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For 70° All Season Mount to Adapter & pad mounting | For 70° All Season Mount to Adapter & pad mounting |
$5.82
|
EA |
|
| 13 | 104029 | 1/4-20 X 3/4" FLAT HEAD CAP SCREW- For All Season to Back | For All Season to Back |
$3.06
|
|
|
| 14 | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- For Wood base pad mounting | For Wood base pad mounting |
$5.82
|
EA |
|
| 15 | 104032 | 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting | For Metal Base Pad Mounting |
$2.04
|
|
|
| 16 | 104007 | Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A |
$3.37
|
EA |
|
|
| 17 | 104018 | 1/4-20 X 1/2 Stainless Flat Head Cap Screw- For All Season to Track | For All Season to Track |
$3.37
|
|
|
| 18 | 104971 | Track Nut, 1" Spacing |
$23.46
|
EA |
|
|
| 19 | 104560 | Lateral, Modular Track Nut Spacer |
$13.26
|
EA |
|
