Name: Axiom Custom Seating: 20 Degree Adjustable Modular Mounting Hardware Assy
Manufacturer: Ki Mobility

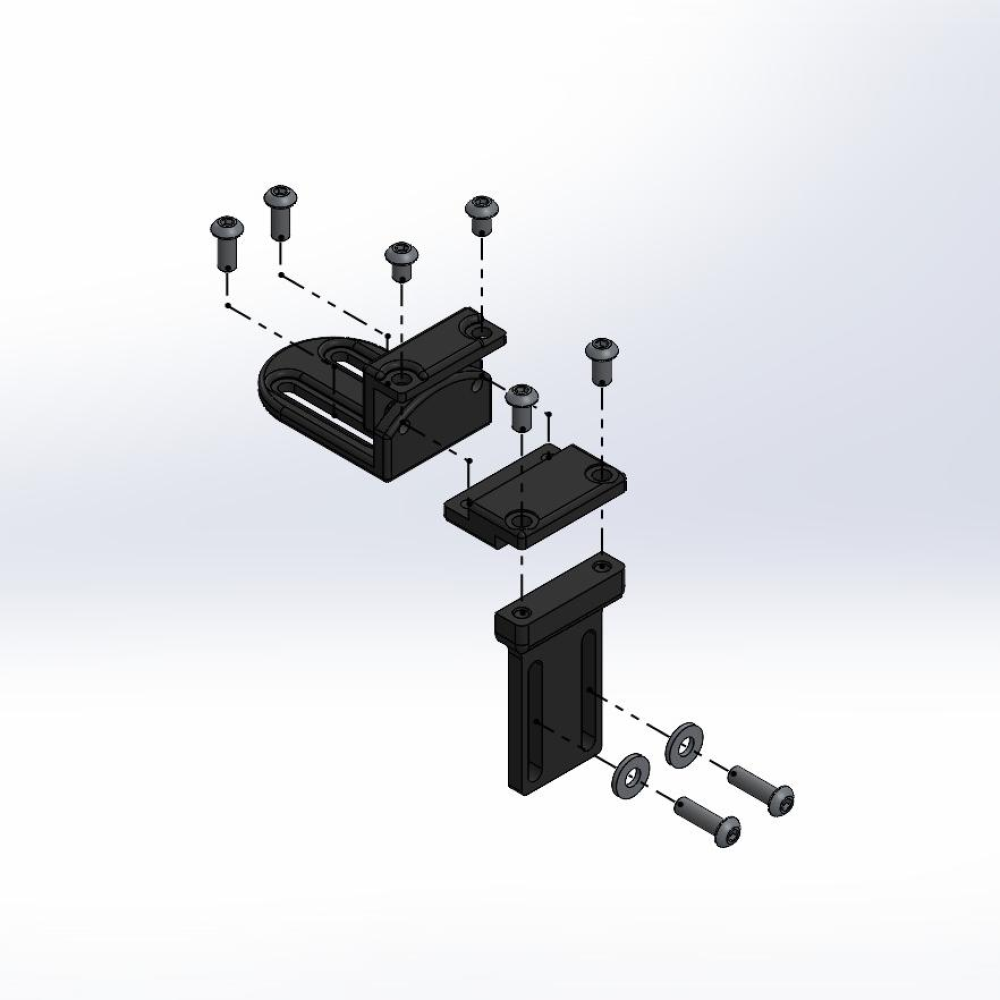

20 Degree Adjustable Modular Mounting Hardware Assy parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 3, 6 - 7, 10 - 12 123377 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 1" Depth, 90°
$211.61
EA
1 - 2, 4, 6 - 7, 10 - 12 123378 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 2" Depth 90°
$217.73
EA
1 - 2, 5 - 7, 10 - 12 123379 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 3" Depth 90°
$221.81
EA
1 - 3, 6, 9 - 12 123380 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 1" Depth, 70°
$206.09
EA
1 - 2, 4, 6, 9 - 12 123381 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 2" Depth 70°
$212.21
EA
1 - 2, 5 - 6, 9 - 12 123382 Lateral, Modular 20° Adjustable Mount Assy, 1" Offset, 3" Depth 70°
$216.29
EA
1 104349 Lateral, Modular 20° Adjustable Mount
$82.73
EA
2 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw
$3.50
EA
3 104230 Lateral, Modular Depth Adapter, 1"
$49.98
EA
4 104237 Lateral, Modular Depth Adapter, 2"
$56.10
EA
5 104242 Lateral, Modular Depth Adapter, 3"
$60.18
EA
6 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw- FOR BOTH 1" & 2" HORIZ. OFFSET
$3.50
EA
7 104264 Lateral, Planar Mount
$55.16
EA
8 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"
$49.64
EA
9 104294 Lateral, Modular Offset Mounting Plate, 3 1/2"- Must be bent for 70° mounting
$49.64
EA
10 104038 1/4-20 X 7/8 Stainless Button Head Cap Screw- For 90° All Season Mount to Adapter & for Planar Mount to Back/Seat
$1.21
11 104032 1/4-20 X 5/8 Stainless Button Head Cap Screw- For Metal Base Pad Mounting
$2.04
12 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
13 104971 Track Nut, 1" Spacing
$23.46
EA
14 104560 Lateral, Modular Track Nut Spacer
$13.26
EA
