Name: Axiom Custom Seating: Snap Lock Clamps
Manufacturer: Ki Mobility

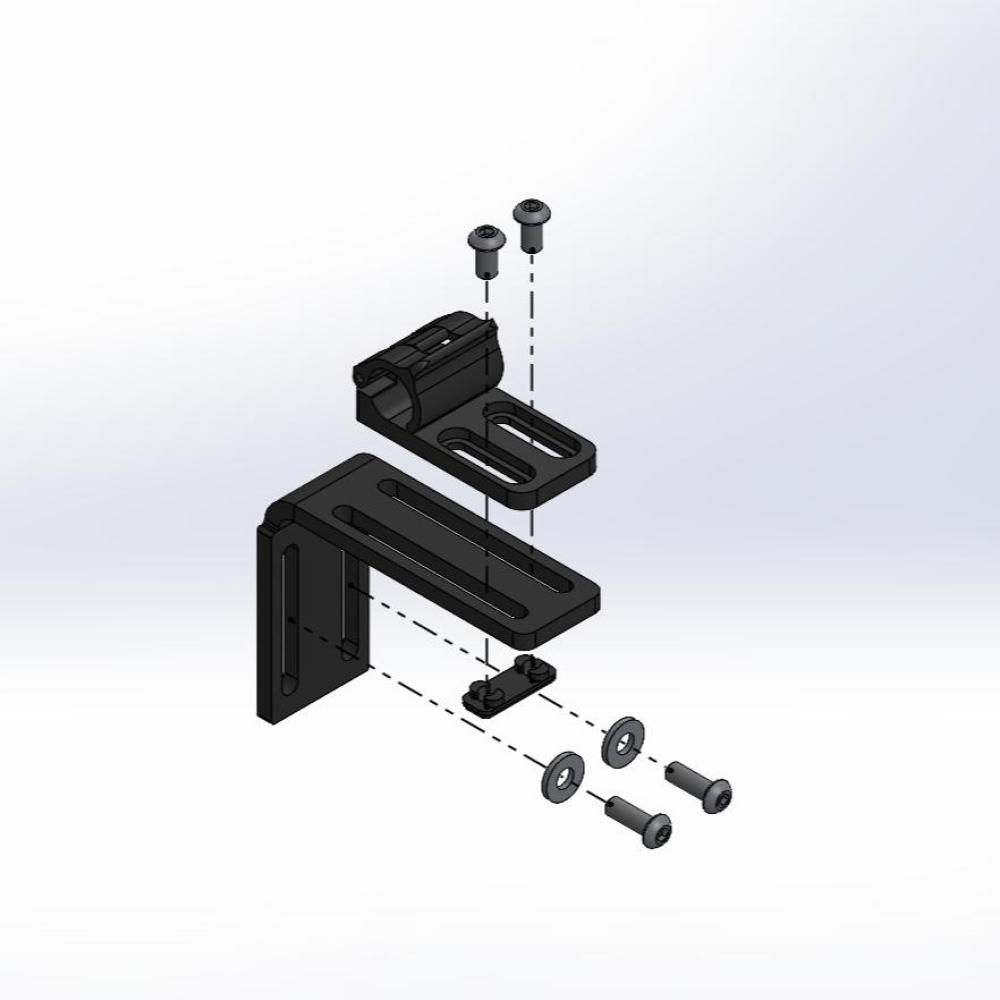

Snap Lock Clamps parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 7, 10 - 12, 14 123185 Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 3" L-Bracket, 90°
$206.94
EA
1, 8, 10 - 12, 14 123186 Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90°
$196.74
EA
1, 9 - 12, 14 123187 Snap Lock Hardware, 3/4" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 70°
$139.62
EA
2, 7, 10 - 12, 14 123188 Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 3" L-Bracket, 90°
$206.94
EA
2, 8, 10 - 12, 14 123189 Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 90°
$196.74
EA
2, 9 - 12, 14 123190 Snap Lock Hardware, 7/8" Clamp Assy, Low Profile, 1-1/2" L-Bracket, 70°
$139.62
EA
3 - 4, 10 - 13 123191 Snap Lock Hardware, 1" Clamp Assy, 2-3/4" L-Bracket, 90°
$206.94
EA
3, 5, 10 - 13 123192 Snap Lock Hardware, 1" Clamp Assy, 3" L-Bracket, 90°
$195.72
EA
3, 6, 10 - 13 123193 Snap Lock Hardware, 1" Clamp Assy, 3" L-Bracket, 70°
$201.84
EA
1 104641 Snap Lock Hardware, Clamp, Low Profile, 3/4"
$90.78
EA
2 104610 Snap Lock Hardware, Clamp, Low Profile, 7/8"
$90.78
EA
3 104693 Snap Lock Hardware, Clamp, 1"
$111.18
EA
4 104813 T/F Hardware, Slotted Adjustable Bracket, 2 3/4", 90°
$43.86
EA
5 104865 T/F Hardware, Slotted Adjustable Bracket, 3", 90°
$32.64
EA
6 104871 T/F Hardware, Slotted Adjustable Bracket, 3", 70°
$38.76
EA
7 104853 T/F Hardware, Slotted Adjustable Bracket, Low Profile, 3", 90°
$67.32
EA
8 104877 T/F Hardware, Slotted Adjustable Bracket, Low Profile, 1 1/2", 90°
$57.12
EA
9 110438 T/F Hardware, Slotted Adjustable, Bracket, Low Profile, 1 1/2", 70° N/A EA Please Call
10 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
11 104028 1/4-20 X 3/4 Stainless Button Head Cap Screw
$5.82
EA
12 104007 Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A
$3.37
EA
13 104872 Anti-Rotation Slot Nut, 1", Threaded
$26.52
EA
14 104876 Anti-Rotation Slot Nut, 3/4", Threaded
$23.46
EA
