Axiom Custom Seating

Name: Axiom Custom Seating: Non-removable Heavy Duty Hardware
Manufacturer: Ki Mobility

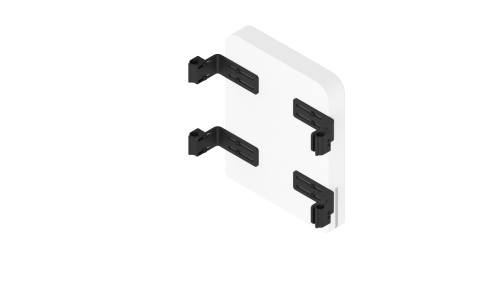

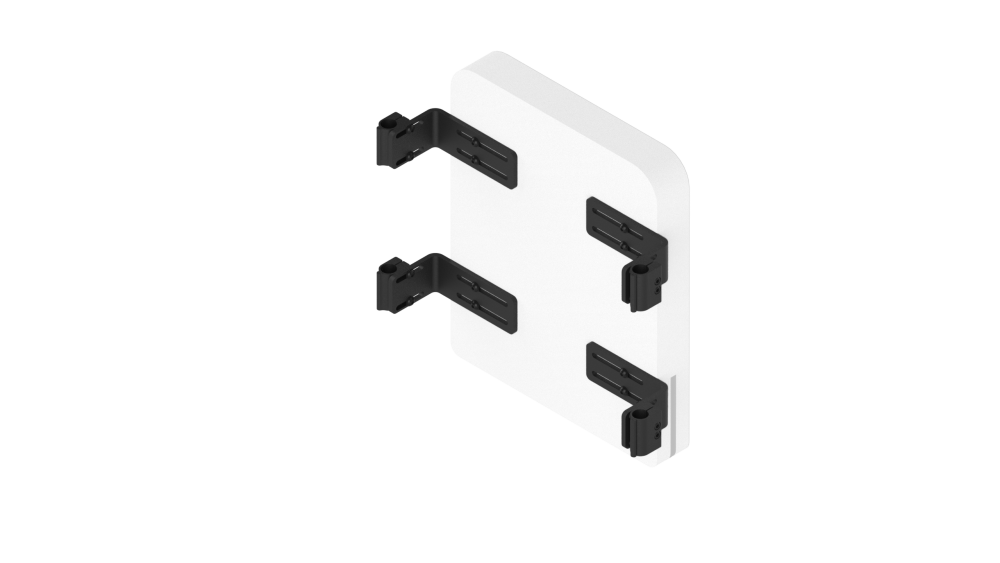

Non-removable Heavy Duty Hardware parts diagram

(Click on image to enlarge)

Attachments:

Non-removable Heavy Duty Hardware

Pos.	Part #	Description	Remarks	Price	UOM
1, 7, 9, 12 - 14	123194	Non-Removable Heavy Duty Hardware, 3/4" Clamp, 90 Degree		$139.92	EA
1, 8 - 9, 12 - 14	123195	Non-Removable Heavy Duty Hardware, 3/4" Clamp, 70 Degree		$115.44	EA
2, 7, 9, 12 - 14	123196	Non-Removable Heavy Duty Hardware, 7/8" Clamp, 90 Degree		$139.92	EA
2, 8 - 9, 12 - 14	123197	Non-Removable Heavy Duty Hardware, 7/8" Clamp, 70 Degree		$115.44	EA
3, 7, 10, 13 - 14	123198	Non-Removable Heavy Duty Hardware, 1" Clamp, 90 Degree		$147.00	EA
3, 8, 10, 13 - 14	123199	Non-Removable Heavy Duty Hardware, 1" Clamp, 70 Degree		$122.52	EA
4, 7, 11 - 14	123200	Non-Removable Heavy Duty Hardware, 1-1/8" Clamp, 90 Degree		$145.06	EA
4, 8, 11 - 14	123201	Non-Removable Heavy Duty Hardware, 1-1/8" Clamp, 70 Degree		$120.58	EA
5, 7, 11 - 14	123202	Non-Removable Heavy Duty Hardware, 1-1/4" Clamp, 90 Degree		$145.06	EA
5, 8, 11 - 14	123203	Non-Removable Heavy Duty Hardware, 1-1/4" Clamp, 70 Degree		$120.58	EA
6 - 7, 11, 13 - 14	123204	Non-Removable Heavy Duty Hardware, 1-3/8" Clamp, 90 Degree		$145.06	EA
6, 8, 11, 13 - 14	123205	Non-Removable Heavy Duty Hardware, 1-3/8" Clamp, 70 Degree		$120.58	EA
1	104262	Tube Clamp, Heavy Duty, 3/4" Diameter		$55.16	EA
2	104263	Tube Clamp, Heavy Duty, 7/8" Diameter		$55.16	EA
3	104261	Tube Clamp, Heavy Duty, 1" Diameter		$55.16	EA
4	104270	Tube Clamp, Heavy Duty, 1 1/8" Diameter		$55.16	EA
5	104269	Tube Clamp, Heavy Duty, 1 1/4" Diameter		$55.16	EA
6	104271	Tube Clamp, Heavy Duty, 1 3/8" Diameter		$55.16	EA
7	104654	Fixed L-Bracket, 3" Adjustable, 90 Degree		$51.00	EA
8	110429	Fixed L-Bracket, Depth Adj, 70°		$26.52	EA
9	104033	1/4-20 X 5/8 Stainless Socket Head Cap Screw- For 3/4" & 7/8" Clamp	For 3/4" & 7/8" Clamp	$2.28	EA
10	104030	1/4-20 X 3/4 Stainless Socket Head Cap Screw- For 1" Clamp	For 1" Clamp	$2.04	EA
11	104016	1/4-20 X 1 Stainless Socket Head Cap Screw- For 1" to 1 3/8" Clamp	For 1" to 1 3/8" Clamp	$1.07	EA
12	104032	1/4-20 X 5/8 Stainless Button Head Cap Screw- For 3/4" & 7/8" Clamp to L Bracket	For 3/4" & 7/8" Clamp to L Bracket	$2.04
13	104028	1/4-20 X 3/4 Stainless Button Head Cap Screw- For 1" to 1 3/8" Clamp to L Bracket. For L-Bracket to Back/Seat	For 1" to 1 3/8" Clamp to L Bracket. For L-Bracket to Back/Seat	$5.82	EA
14	104007	Washer, Flat, 1/4", 18-8, BLK OX, ASME B18.22.1, N, TYPE A		$3.37	EA
