Axiom Back

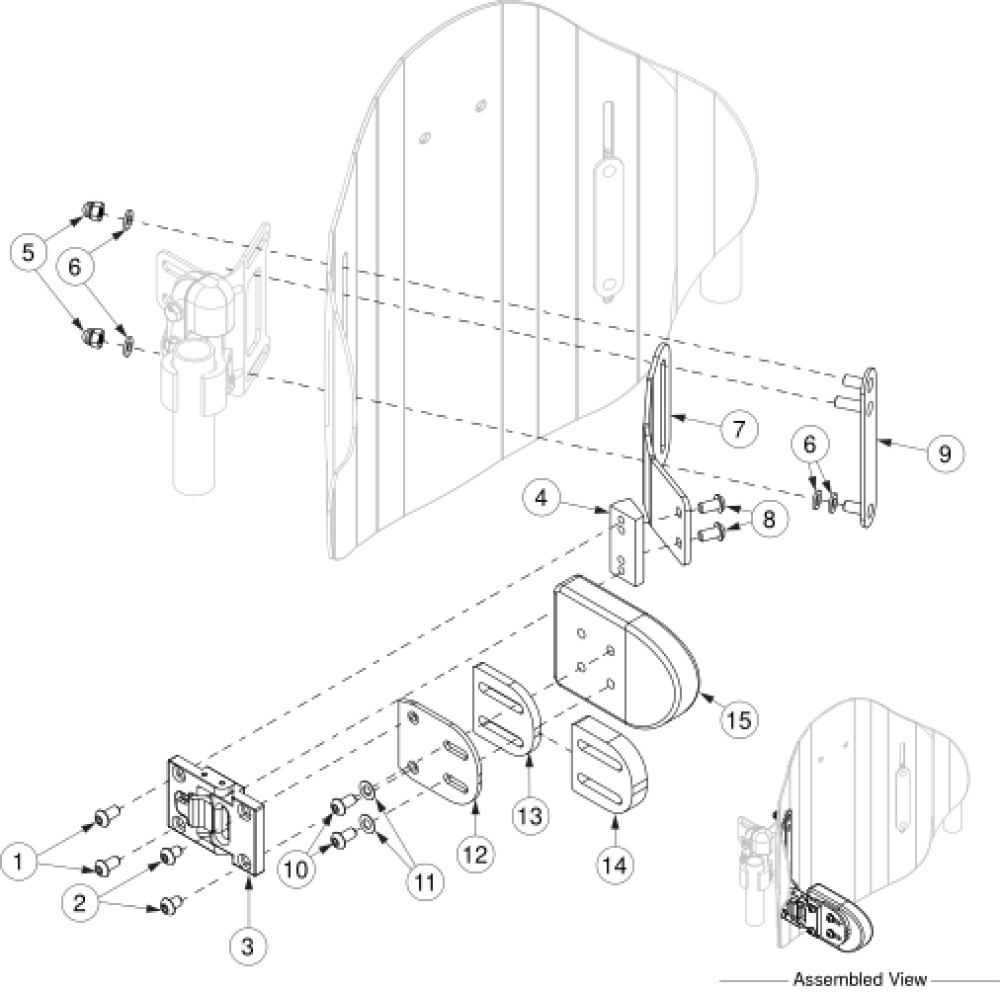

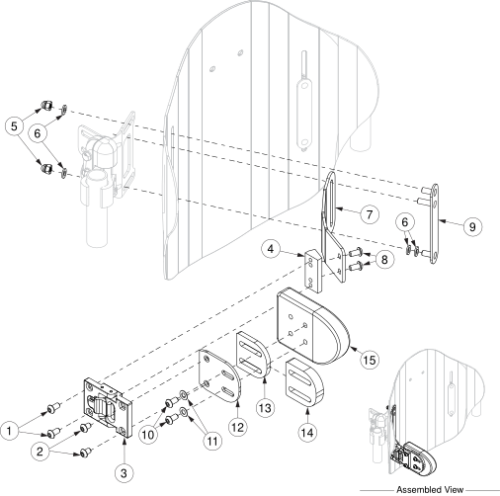

Name: Axiom Back: (discontinued) Axiom Swing Away Laterals For Axpl And Axlb
Manufacturer: Ki Mobility
Manufacturer: Ki Mobility
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 2 | 104031 | 1/4-20 X 3/8 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 3 | 104463 | Lateral, Swingaway Modular Quick Release Mount |
$183.42
|
EA |
|
|
| 4 | 107545 | Axiom Back Spacer Block 20 Deg |
$93.17
|
EA |
|
|
| 5 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 6 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 7a | 004886 | Axiom PL Back Lateral Mount, Swing Away, Right |
$40.76
|
EA |
|
|
| 7b | 004887 | Axiom PL Back Lateral Mount, Swing Away, Left |
$40.76
|
EA |
|
|
| 8 | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 9 | 004889 | Axiom Back Lateral Stud Plate |
$17.47
|
EA |
|
|
| 10a | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw- Used when no spacers are used. | Used when no spacers are used. |
$3.50
|
EA |
|
| 10b | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- Used when the 1/4" spacer is used alone. | Used when the 1/4" spacer is used alone. |
$5.82
|
EA |
|
| 10c | 104014 | Bhcs, 1/4"-20 X 1.00, 18-8, Blk Ox, Asme B18.3- Used when the 1/2" spacer is used alone. | Used when the 1/2" spacer is used alone. |
$5.71
|
EA |
|
| 10d | 104024 | 1/4-20 X 1-1/4 Stainless Button Head Cap Screw- Used when the 1/4" and 1/2" spacers are used together. | Used when the 1/4" and 1/2" spacers are used together. |
$8.16
|
EA |
|
| 11 | 102803 | Washer Flat .250 X .500 X .027 Hx Blz |
$1.81
|
EA |
|
|
| 12 | 004888 | Axiom Back Lateral Adapter, Swing Away |
$29.12
|
EA |
|
|
| 13 | 107555 | Axiom Back Lateral Spacer 1/4" |
$34.94
|
EA |
|
|
| 14 | 107556 | Axiom Back Lateral Spacer 1/2" |
$34.94
|
EA |
|
|
| 13 - 14, 15a | 108261 | 3x4 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 13 - 14, 15b | 108259 | 4x5 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 13 - 14, 15c | 108262 | 3x4 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 13 - 14, 15d | 108260 | 4x5 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 1 - 6, 7a, 7b, 8 - 9, 10a - 10d, 11 - 15a | LS3X4L | 3 x 4 Lateral Pads with Swing Away Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair) |
$711.06
|
EA |
|
|
| 1 - 6, 7a, 7b, 8 - 9, 10a - 10d, 11 - 15b | LS4X5L | 4 x 5 Lateral Pads with Swing Away Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair) |
$711.06
|
EA |
|
|
| 1 - 6, 7b, 8 - 9, 10a - 10d, 11 - 12 | 108257 | Posterior Lateral - Swing Away Lateral Left- Pad not included. | Pad not included. |
$276.58
|
EA |
|
| 1 - 6, 7a, 8 - 9, 10a - 10d, 11 - 12 | 108258 | Posterior Lateral - Swing Away Lateral Right- Pad not included. | Pad not included. |
$276.58
|
EA |
|
