Axiom Back

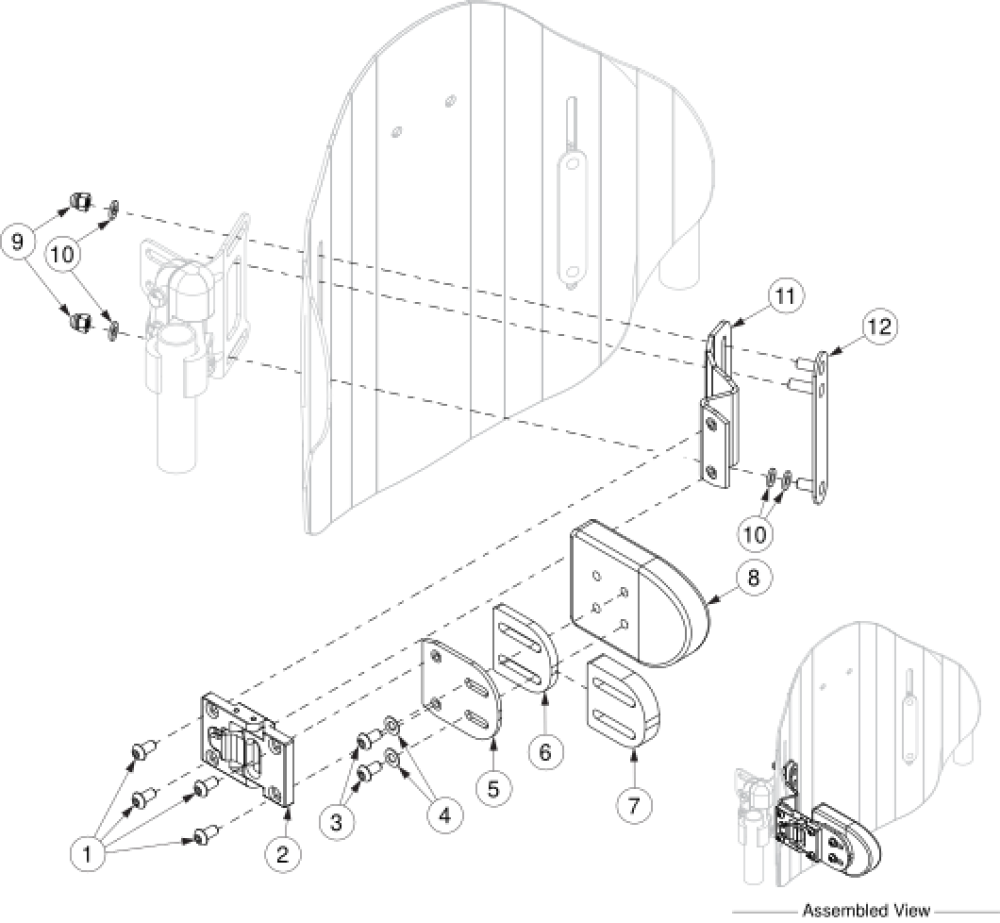

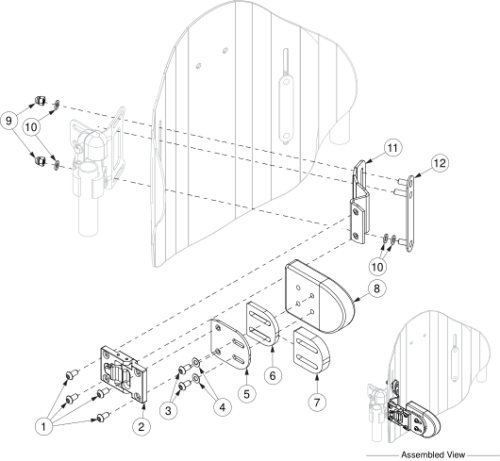

Name: Axiom Back: (discontinued) Axiom Swing Away Laterals For Axpb
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 104031 | 1/4-20 X 3/8 Stainless Button Head Cap Screw |
$3.50
|
EA |
|
|
| 2 | 104463 | Lateral, Swingaway Modular Quick Release Mount |
$183.42
|
EA |
|
|
| 3a | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw- Used when no spacers are used. | Used when no spacers are used. |
$3.50
|
EA |
|
| 3b | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- Used when the 1/4" spacer is used alone. | Used when the 1/4" spacer is used alone. |
$5.82
|
EA |
|
| 3c | 104014 | Bhcs, 1/4"-20 X 1.00, 18-8, Blk Ox, Asme B18.3- Used when the 1/2" spacer is used alone. | Used when the 1/2" spacer is used alone. |
$5.71
|
EA |
|
| 3d | 104024 | 1/4-20 X 1-1/4 Stainless Button Head Cap Screw- Used when the 1/4" and 1/2" spacers are used together. | Used when the 1/4" and 1/2" spacers are used together. |
$8.16
|
EA |
|
| 4 | 102803 | Washer Flat .250 X .500 X .027 Hx Blz |
$1.81
|
EA |
|
|
| 5 | 004888 | Axiom Back Lateral Adapter, Swing Away |
$29.12
|
EA |
|
|
| 6 | 107555 | Axiom Back Lateral Spacer 1/4" |
$34.94
|
EA |
|
|
| 7 | 107556 | Axiom Back Lateral Spacer 1/2" |
$34.94
|
EA |
|
|
| 6 - 7, 8a | 108261 | 3x4 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 6 - 7, 8b | 108259 | 4x5 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 6 - 7, 8c | 108262 | 3x4 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 6 - 7, 8d | 108260 | 4x5 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 9 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 10 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 11a | 004884 | Axiom PB Back Lateral Mount, Swing Away, Right |
$40.76
|
EA |
|
|
| 11b | 004885 | Axiom PB Back Lateral Mount, Swing Away, Left |
$40.76
|
EA |
|
|
| 12 | 004889 | Axiom Back Lateral Stud Plate |
$17.47
|
EA |
|
|
| 1 - 2, 3a - 3d, 4 - 7, 8a - 10, 11a, 11b, 12 | LS3X4P | 3 x 4 Lateral Pads with Swing Away Mounting Hardware for Axiom Posterior Back (Pair) |
$711.06
|
EA |
|
|
| 1 - 2, 3a - 3d, 4 - 7, 8b - 10, 11a, 11b, 12 | LS4X5P | 4 x 5 Lateral Pads with Swing Away Mounting Hardware for Axiom Posterior Back (Pair) |
$711.06
|
EA |
|
|
| 1 - 2, 3a - 3d, 4, 5, 9, 10, 11a, 12 | 108255 | Posterior - Swing Away Laterals Right- Pad not included. | Pad not included. |
$276.58
|
EA |
|
| 1 - 2, 3a - 3d, 4, 5, 9, 10, 11b, 12 | 108254 | Posterior - Swing Away Lateral Left- Pad not included. | Pad not included. |
$276.58
|
EA |
|
