Axiom Back
Name: Axiom Back: (discontinued) Axiom Fixed Laterals
Manufacturer: Ki Mobility

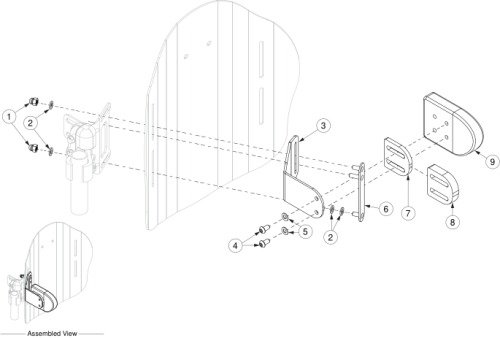

(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture

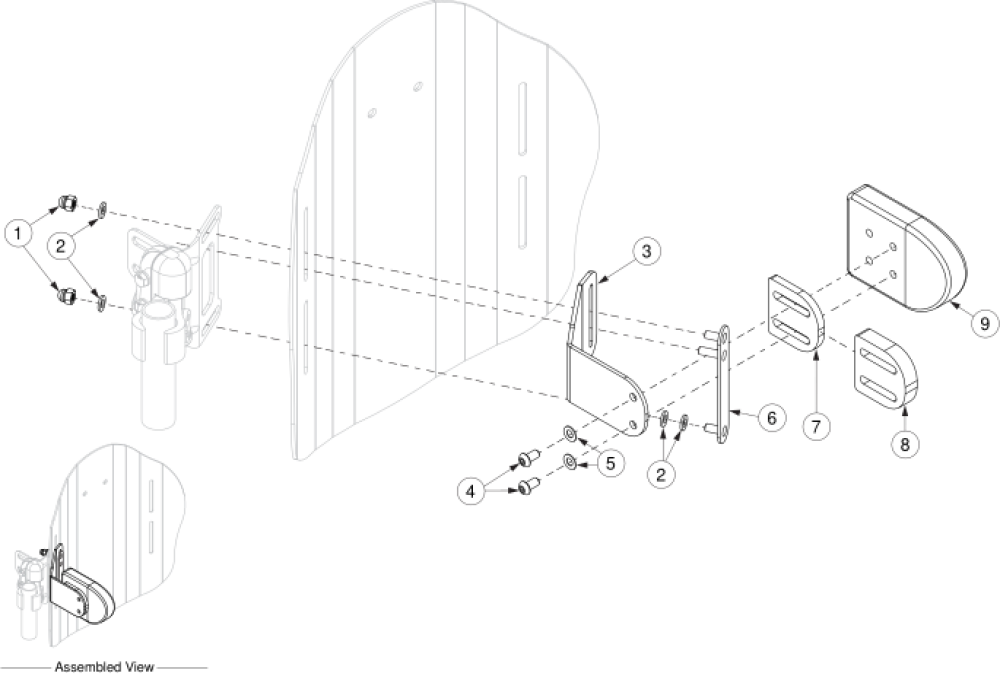

(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 2, 3c, 3d, 4a - 4d, 5 - 8, 9a | LF3X4L | 3 x 4 Lateral Pads with Fixed Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair) |
$333.67
|
EA |
|
|
| 1 - 2, 3a, 3b, 4a - 4d, 5 - 8, 9b | LF3X4P | 3 x 4 Lateral Pads with Fixed Mounting Hardware for Axiom Posterior Back (Pair) |
$333.67
|
EA |
|
|
| 1 - 2, 3c, 3d, 4a - 4d, 5 - 8, 9b | LF4X5L | 4 x 5 Lateral Pads with Fixed Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair) |
$333.67
|
EA |
|
|
| 1 - 2, 3a, 3b, 4a - 4d, 5 - 8, 9b | LF4X5P | 4 x 5 Lateral Pads with Fixed Mounting Hardware for Axiom Posterior Back (Pair) |
$333.67
|
EA |
|
|
| 1 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
|
| 2 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 3a | 004880 | Axiom PB Back Lateral Mount, Fixed, Right |
$29.12
|
EA |
|
|
| 3b | 004881 | Axiom PB Back Lateral Mount, Fixed, Left |
$29.12
|
EA |
|
|
| 3c | 004882 | Axiom PL Back Lateral Mount, Fixed, Right |
$40.76
|
EA |
|
|
| 3d | 004883 | Axiom PL Back Lateral Mount, Fixed, Left |
$40.76
|
EA |
|
|
| 4a | 104017 | 1/4-20 X 1/2 Stainless Button Head Cap Screw- Used when no spacers are used. | Used when no spacers are used. |
$3.50
|
EA |
|
| 4b | 104028 | 1/4-20 X 3/4 Stainless Button Head Cap Screw- Used when the 1/4" spacer is used alone. | Used when the 1/4" spacer is used alone. |
$5.82
|
EA |
|
| 4c | 104014 | Bhcs, 1/4"-20 X 1.00, 18-8, Blk Ox, Asme B18.3- Used when the 1/2" spacer is used alone. | Used when the 1/2" spacer is used alone. |
$5.71
|
EA |
|
| 4d | 104024 | 1/4-20 X 1-1/4 Stainless Button Head Cap Screw- Used when the 1/4" and 1/2" spacers are used together. | Used when the 1/4" and 1/2" spacers are used together. |
$8.16
|
EA |
|
| 5 | 102803 | Washer Flat .250 X .500 X .027 Hx Blz |
$1.81
|
EA |
|
|
| 6 | 004889 | Axiom Back Lateral Stud Plate |
$17.47
|
EA |
|
|
| 7 | 107555 | Axiom Back Lateral Spacer 1/4" |
$34.94
|
EA |
|
|
| 8 | 107556 | Axiom Back Lateral Spacer 1/2" |
$34.94
|
EA |
|
|
| 9a | 108261 | 3x4 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 9a | 108262 | 3x4 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 9b | 108259 | 4x5 Lateral Pads (Pair) |
$209.62
|
EA |
|
|
| 9b | 108260 | 4x5 Lateral Pad (Each) |
$104.81
|
EA |
|
|
| 1 - 2, 3a, 4a - 4d, 5 - 8 | 108249 | Posterior - Fixed Lateral Right |
$75.70
|
EA |
|
|
| 1 - 2, 3b, 4a - 4d, 5 - 8 | 108248 | Posterior - Fixed Lateral Left |
$75.70
|
EA |
|
|
| 1 - 2, 3c, 4a - 4d, 5 - 8 | 108252 | Posterior Lateral - Fixed Lateral Right |
$75.70
|
EA |
|
|
| 1 - 2, 3d, 4a - 4d, 5 - 8 | 108251 | Posterior Lateral - Fixed Lateral Left |
$75.70
|
EA |
|
