Axiom Back Replacement Parts by Ki Mobility

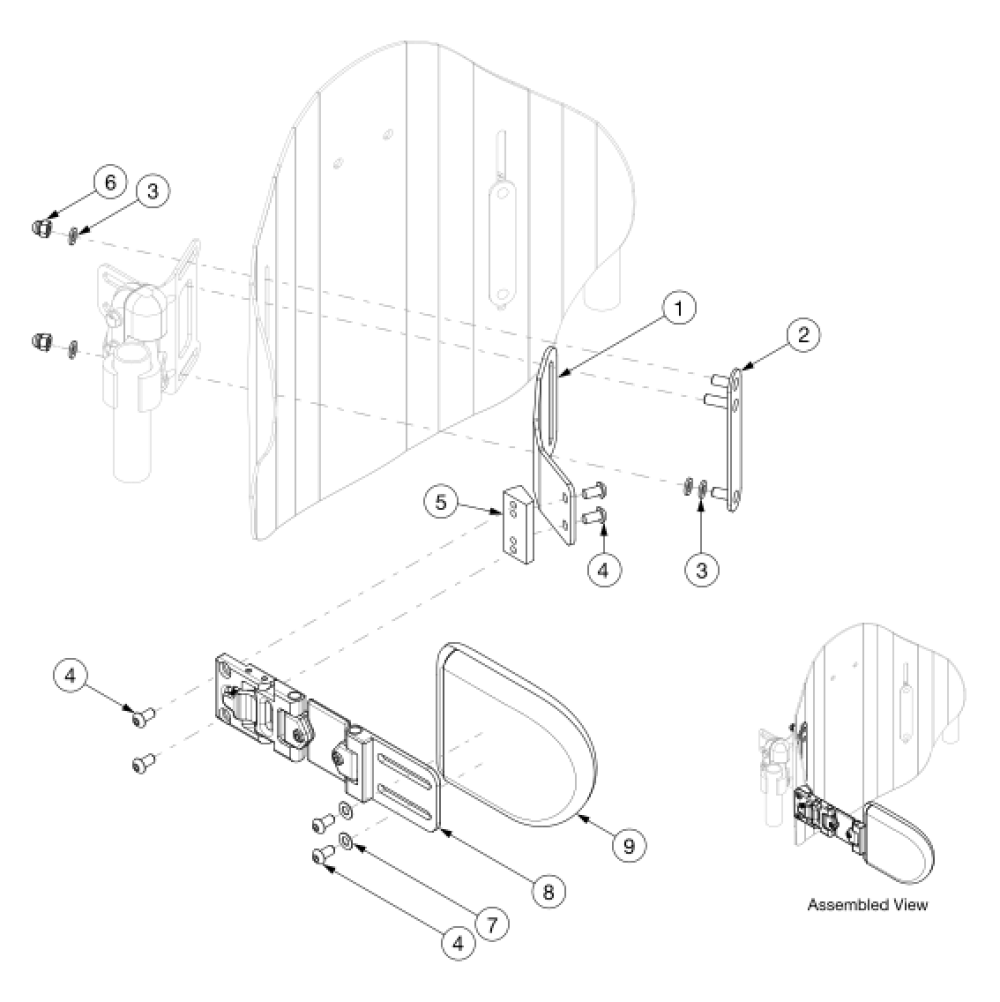

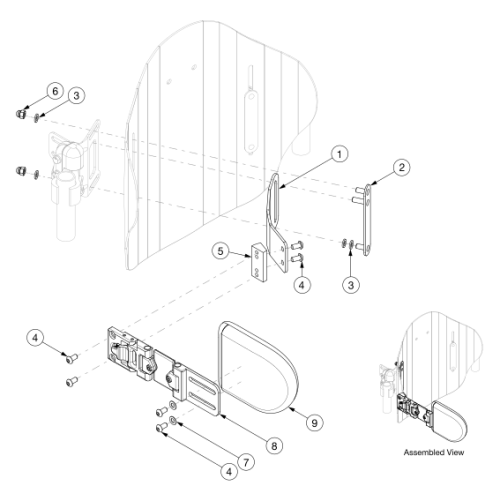

Name: Axiom Back: (discontinued) Axiom Adjustable Swing Away Laterals For Axpl And Axlb
Manufacturer: Ki Mobility

(Click on image to enlarge)

Attachments:

Pos.	Part #	Description	Remarks	Price	UOM
1a	004886	Axiom PL Back Lateral Mount, Swing Away, Right		$40.76	EA
1b	004887	Axiom PL Back Lateral Mount, Swing Away, Left		$40.76	EA
2	004889	Axiom Back Lateral Stud Plate		$17.47	EA
3	100746	M6 Flat Washer Blk Zn		$1.81	EA
4	104017	1/4-20 X 1/2 Stainless Button Head Cap Screw		$3.50	EA
5	107545	Axiom Back Spacer Block 20 Deg		$93.17	EA
6	100558	M6 Nyl Ins Domed Cap L/N Zc		$1.19	EA
7	102803	Washer Flat .250 X .500 X .027 Hx Blz		$1.81	EA
8	104488	Lateral, Adjustable Thin Link Swingaway Mount		$256.90	EA
9a	004684	Axiom Back Lateral Pad 3x4		$92.42	EA
9b	004685	Axiom Back Lateral Pad 4x5		$92.42	EA
1b, 2 - 8	114483	Posterior Lateral - Adjustable Swing Away Lateral Left- Pad not included	Pad not included	$331.65	EA
1a, 2 - 8	114484	Posterior Lateral - Adjustable Swing Away Lateral Right- Pad not included	Pad not included	$331.65	EA
1a, 1b, 2 - 8, 9a	LAS3X4L	3 x 4 Lateral Pads with Adjustable Swing Away Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair)		$842.18	EA
1a, 1b, 2 - 8, 9b	LAS4X5L	4 x 5 Lateral Pads with Adjustable Swing Away Mounting Hardware for Axiom Posterior Lateral and Axiom Lateral Backs (Pair)		$842.18	EA
