Axiom Back

Name: Axiom Back: Axiom Custom Back Swing Away Laterals For Axcpb
Manufacturer: Ki Mobility

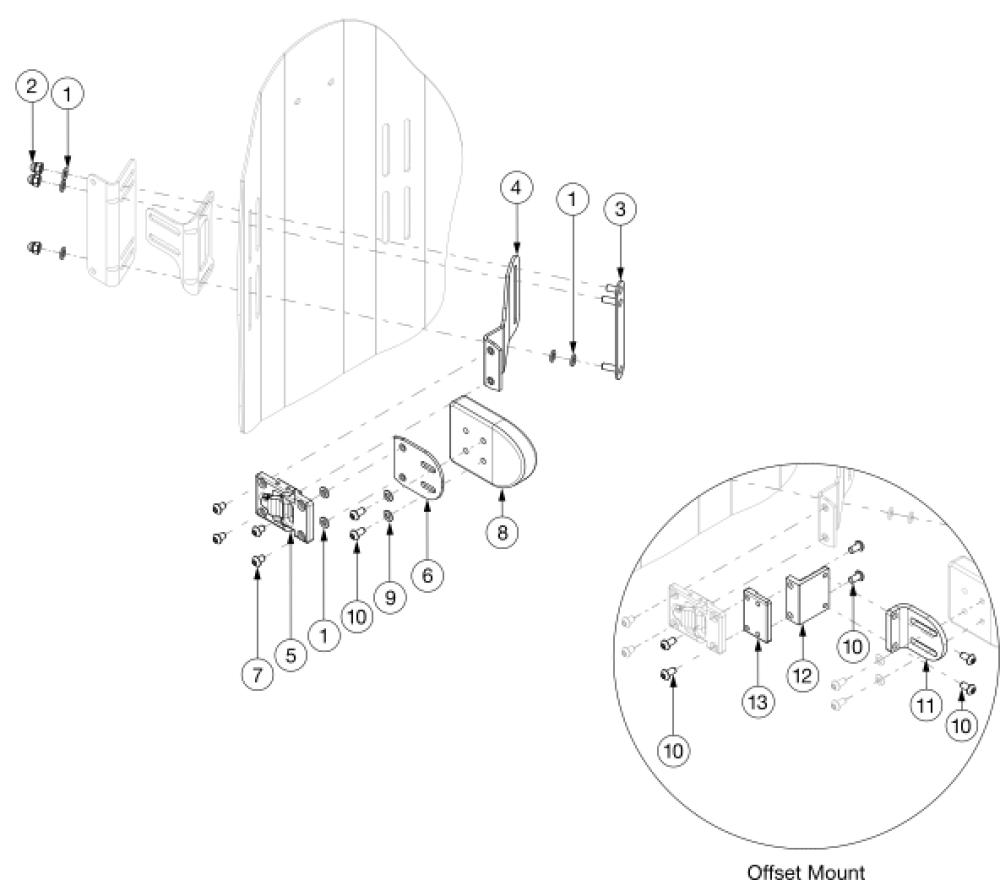

Axiom Custom Back Swing Away Laterals For Axcpb parts diagram
(Click on image to enlarge)

For a full lateral assembly, add number 3 based on mounting hardware
Pos. Part # Description Price UOM Buy
3a 004889 Axiom Back Lateral Stud Plate- Used for DEX and FXT mounting hardware
$17.47
EA
3b 115937 Axiom Back Lateral Stud Plate, BTX
$15.31
EA
1, 2, 4a, 4b, 5, 6a, 7, 8a, 9, 10 122355 3x4 Flat Pad Axiom Custom Back PB Swing Away Flush Pair Kit
$856.80
EA
1, 2, 4a, 5, 6a, 7, 8a, 9, 10 122356 3x4 Flat Pad Axiom Custom Back PB Swing Away Flush Left Kit
$430.44
EA
1, 2, 4b, 5, 6a, 7, 8a, 9, 10 122357 3x4 Flat Pad Axiom Custom Back PB Swing Away Flush Right Kit
$430.44
EA
1, 2, 4a, 4b, 5, 6a, 7, 8b, 9, 10 122358 4x5 Flat Pad Axiom Custom Back PB Swing Away Flush Pair Kit
$856.80
EA
1, 2, 4a, 5, 6a, 7, 8b, 9, 10 122359 4x5 Flat Pad Axiom Custom Back PB Swing Away Flush Left Kit
$430.44
EA
1, 2, 4b, 5, 6a, 7, 8b, 9, 10 122360 4x5 Flat Pad Axiom Custom Back PB Swing Away Flush Right Kit
$430.44
EA
1, 2, 4a, 4b, 5, 6a, 7, 8c, 9, 10 122361 3x4 Curved Pad Axiom Custom Back PB Swing Away Flush Pair Kit
$856.80
EA
1, 2, 4a, 5, 6a, 7, 8c, 9, 10 122362 3x4 Curved Pad Axiom Custom Back PB Swing Away Flush Left Kit
$430.44
EA
1, 2, 4b, 5, 6a, 7, 8c, 9, 10 122363 3x4 Curved Pad Axiom Custom Back PB Swing Away Flush Right Kit
$430.44
EA
1, 2, 4a, 4b, 5, 6a, 7, 8d, 9, 10 122364 4x5 Curved Pad Axiom Custom Back PB Swing Away Flush Pair Kit
$856.80
EA
1, 2, 4a, 5, 6a, 7, 8d, 9, 10 122365 4x5 Curved Pad Axiom Custom Back PB Swing Away Flush Left Kit
$430.44
EA
1, 2, 4b, 5, 6a, 7, 8d, 9, 10 122366 4x5 Curved Pad Axiom Custom Back PB Swing Away Flush Right Kit
$430.44
EA
1, 2, 4a, 4b, 5, 7, 8a, 9, 10, 11a, 12, 13 122442 3x4 Flat Pad Axiom Custom Back PB 1" Offset Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8a, 9, 10, 11a, 12, 13 122443 3x4 Flat Pad Axiom Custom Back PB 1" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8a, 9, 10, 11a, 12, 13 122444 3x4 Flat Pad Axiom Custom Back PB 1" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8b, 9, 10, 11a, 12, 13 122445 4x5 Flat Pad Axiom Custom Back PB 1" Offset Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8b, 9, 10, 11a, 12, 13 122446 4x5 Flat Pad Axiom Custom Back PB 1" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8b, 9, 10, 11a, 12, 13 122447 4x5 Flat Pad Axiom Custom Back PB 1" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8c, 9, 10, 11a, 12, 13 122448 3x4 Curved Pad Axiom Custom Back PB 1" Offset Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8c, 9, 10, 11a, 12, 13 122449 3x4 Curved Pad Axiom Custom Back PB 1" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8c, 9, 10, 11a, 12, 13 122450 3x4 Curved Pad Axiom Custom Back PB 1" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8d, 9, 10, 11a, 12, 13 122451 4x5 Curved Pad Axiom Custom Back PB 1" Offset Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8d, 9, 10, 11a, 12, 13 122452 4x5 Curved Pad Axiom Custom Back PB 1" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8d, 9, 10, 11a, 12, 13 122453 4x5 Curved Pad Axiom Custom Back PB 1" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8a, 9, 10, 11b, 12, 13 122457 3x4 Flat Pad Axiom Custom Back 2" Offset PB Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8a, 9, 10, 11b, 12, 13 122458 3x4 Flat Pad Axiom Custom Back PB 2" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8a, 9, 10, 11b, 12, 13 122459 3x4 Flat Pad Axiom Custom Back PB 2" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8b, 9, 10, 11b, 12, 13 122460 4x5 Flat Pad Axiom Custom Back 2" Offset PB Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8b, 9, 10, 11b, 12, 13 122461 4x5 Flat Pad Axiom Custom Back PB 2" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8b, 9, 10, 11b, 12, 13 122462 4x5 Flat Pad Axiom Custom Back PB 2" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8c, 9, 10, 11b, 12, 13 122463 3x4 Curved Pad Axiom Custom Back 2" Offset PB Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8c, 9, 10, 11b, 12, 13 122464 3x4 Curved Pad Axiom Custom Back PB 2" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8c, 9, 10, 11b, 12, 13 122465 3x4 Curved Pad Axiom Custom Back PB 2" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 7, 8d, 9, 10, 11b, 12, 13 122466 4x5 Curved Pad Axiom Custom Back 2" Offset PB Fixed Pair Kit
$723.49
EA
1, 2, 4a, 5, 7, 8d, 9, 10, 11b, 12, 13 122467 4x5 Curved Pad Axiom Custom Back PB 2" Offset Fixed Left Kit
$364.29
EA
1, 2, 4b, 5, 7, 8d, 9, 10, 11b, 12, 13 122468 4x5 Curved Pad Axiom Custom Back PB 2" Offset Fixed Right Kit
$364.29
EA
1, 2, 4a, 4b, 5, 6a, 7 122168 Axiom Custom Back PB Swing Away Flush Pair Kit (No Pad)
$606.90
EA
1, 2, 4a, 5, 6a, 7 122169 Axiom Custom Back PB Swing Away Flush Left Kit (No Pad)
$302.94
EA
1, 2, 4b, 5, 6a, 7 122170 Axiom Custom Back PB Swing Away Flush Right Kit (No Pad)
$302.94
EA
1, 2, 4a, 4b, 5, 7, 10, 11a, 12, 13 122439 Axiom Custom Back PB 1" Offset Fixed Pair Kit (No Pad)
$473.59
EA
1, 2, 4a, 5, 7, 10, 11a, 12, 13 122440 Axiom Custom Back PB 1" Offset Fixed Left Kit (No Pad)
$236.79
EA
1, 2, 4b, 5, 7, 10, 11a, 12, 13 122441 Axiom Custom Back PB 1" Offset Fixed Right Kit (No Pad)
$236.79
EA
1, 2, 4a, 4b, 5, 7, 10, 11b, 12, 13 122454 Axiom Custom Back 2" Offset PB Fixed Pair Kit (No Pad)
$473.59
EA
1, 2, 4a, 5, 7, 10, 11b, 12, 13 122455 Axiom Custom Back PB 2" Offset Fixed Left Kit (No Pad)
$236.79
EA
1, 2, 4b, 5, 7, 10, 11b, 12, 13 122456 Axiom Custom Back PB 2" Offset Fixed Right Kit (No Pad)
$236.79
EA
10, 11a, 12, 13 122151 Axiom Custom Back FIXED 1" Offset Hardware Kit Pair- Used to convert a current fixed laterals to offset laterals
$224.40
EA
10, 11a, 12, 13 122152 Axiom Custom Back FIXED 1" Offset Hardware Kit Single- Used to convert a current fixed lateral to an offset lateral
$112.20
EA
10, 11b, 12, 15 122153 Axiom Custom Back FIXED 2" Offset Hardware Kit Pair- Used to convert a current fixed laterals to offset laterals
$224.40
EA
10, 11b, 12, 15 122154 Axiom Custom Back FIXED 2" Offset Hardware Kit Single- Used to convert a current fixed lateral to an offset lateral
$112.20
EA
1 100746 M6 Flat Washer Blk Zn
$1.81
EA
2 100558 M6 Nyl Ins Domed Cap L/N Zc
$1.19
EA
4a 004885 Axiom PB Back Lateral Mount, Swing Away, Left
$40.76
EA
4b 004884 Axiom PB Back Lateral Mount, Swing Away, Right
$40.76
EA
5 104237 Lateral, Modular Depth Adapter, 2"
$56.10
EA
6a 104249 Lateral, Modular Flush Pad Mount, 3"
$38.61
EA
6b 104250 Lateral, Modular Flush Pad Mount, 5"
$43.86
EA
6c 104251 Lateral, Modular Flush Pad Mount, 6"
$68.34
EA
6d 104252 Lateral, Modular Flush Pad Mount, 7"
$69.36
EA
7 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw
$3.50
EA
8a 122140 Axiom Custom Back Lateral Pad 3X4 Flat Pair Kit
$249.90
EA
8a 122141 Axiom Custom Back Lateral Pad 3X4 Flat Single Kit
$127.50
EA
8b 122142 Axiom Custom Back Lateral Pad 4X5 Flat Pair Kit
$249.90
EA
8b 122143 Axiom Custom Back Lateral Pad 4X5 Flat Single Kit
$127.50
EA
8c 122144 Axiom Custom Back Lateral Pad 3X4 Curved Pair Kit
$249.90
EA
8c 122145 Axiom Custom Back Lateral Pad 3X4 Curved Single Kit
$127.50
EA
8d 122146 Axiom Custom Back Lateral Pad 4X5 Curved Pair Kit
$249.90
EA
8d 122147 Axiom Custom Back Lateral Pad 4X5 Curved Single Kit
$127.50
EA
9 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
10 102803 Washer Flat .250 X .500 X .027 Hx Blz
$1.81
EA
11a 104345 Lateral, Modular Offset Adapter, 1"
$82.73
EA
11b 104346 Lateral, Modular Offset Adapter, 2"
$82.73
EA
12 106217 Lateral, Modular Offset Mounting Plate, 2 1/2"
$23.46
EA
