Axiom Back

Name: Axiom Back: Axiom Custom Back Adjustable Swing Away Laterals For Axcpb
Manufacturer: Ki Mobility

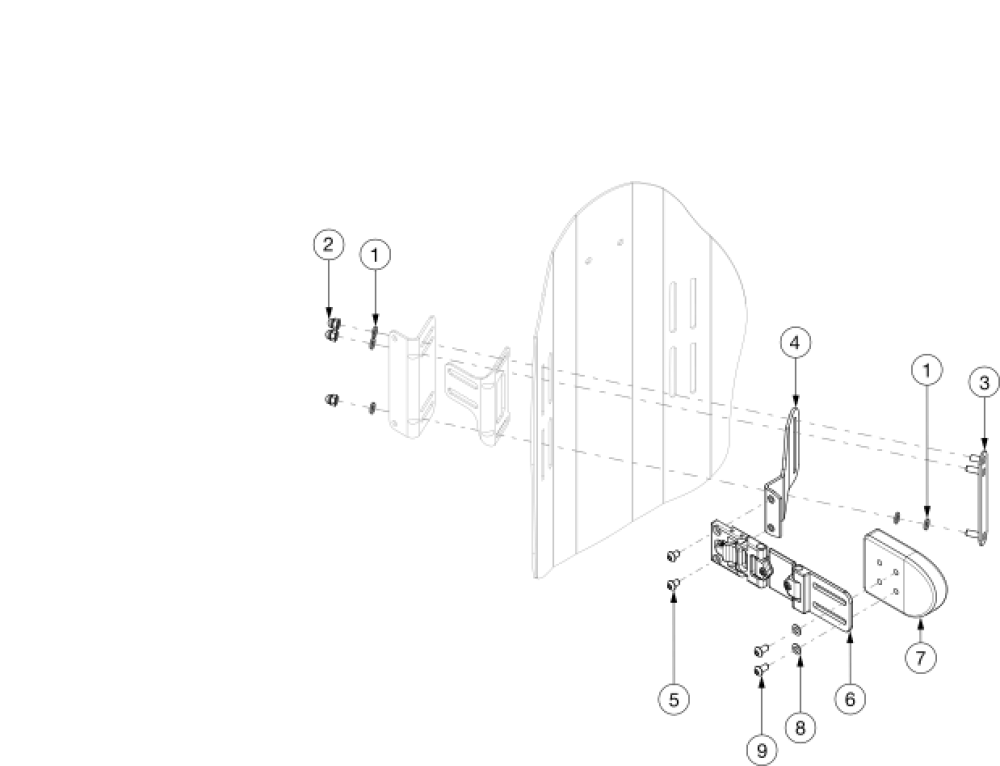

Axiom Custom Back Adjustable Swing Away Laterals For Axcpb parts diagram
(Click on image to enlarge)

For a full lateral assembly, add number 3 based on mounting hardware
Pos. Part # Description Price UOM Buy
3a 004889 Axiom Back Lateral Stud Plate- Used for DEX and FXT mounting hardware
$17.47
EA
3b 115937 Axiom Back Lateral Stud Plate, BTX
$15.31
EA
1, 2, 4a, 4b, 5, 6, 7a, 8, 9 122367 3x4 Flat Pad Axiom Custom Back PB Adjustable Swing Away Pair Kit
$928.20
EA
1, 2, 4a, 5, 6, 7a, 8, 9 122368 3x4 Flat Pad Axiom Custom Back PB Adjustable Swing Away Left Kit
$469.20
EA
1, 2, 4b, 5, 6, 7a, 8, 9 122369 3x4 Flat Pad Axiom Custom Back PB Adjustable Swing Away Right Kit
$469.20
EA
1, 2, 4a, 4b, 5, 6, 7b, 8, 9 122370 4x5 Flat Pad Axiom Custom Back PB Adjustable Swing Away Pair Kit
$928.20
EA
1, 2, 4a, 5, 6, 7b, 8, 9 122371 4x5 Flat Pad Axiom Custom Back PB Adjustable Swing Away Left Kit
$469.20
EA
1, 2, 4b, 5, 6, 7b, 8, 9 122372 4x5 Flat Pad Axiom Custom Back PB Adjustable Swing Away Right Kit
$469.20
EA
1, 2, 4a, 4b, 5, 6, 7c, 8, 9 122373 3x4 Curved Pad Axiom Custom Back PB Adjustable Swing Away Pair Kit
$928.20
EA
1, 2, 4a, 5, 6, 7c, 8, 9 122374 3x4 Curved Pad Axiom Custom Back PB Adjustable Swing Away Left Kit
$469.20
EA
1, 2, 4b, 5, 6, 7c, 8, 9 122375 3x4 Curved Pad Axiom Custom Back PB Adjustable Swing Away Right Kit
$469.20
EA
1, 2, 4a, 4b, 5, 6, 7d, 8, 9 122376 4x5 Curved Pad Axiom Custom Back PB Adjustable Swing Away Pair Kit
$928.20
EA
1, 2, 4a, 5, 6, 7d, 8, 9 122377 4x5 Curved Pad Axiom Custom Back PB Adjustable Swing Away Left Kit
$469.20
EA
1, 2, 4b, 5, 6, 7d, 8, 9 122378 4x5 Curved Pad Axiom Custom Back PB Adjustable Swing Away Right Kit
$469.20
EA
1, 2, 4a, 4b, 5, 6 122171 Axiom Custom Back PB Adjustable Swing Away Pair Kit (No Pad)
$678.30
EA
1, 2, 4a, 5, 6 122172 Axiom Custom Back PB Adjustable Swing Away Left Kit (No Pad)
$341.70
EA
1, 2, 4b, 5, 6 122173 Axiom Custom Back PB Adjustable Swing Away Right Kit (No Pad)
$341.70
EA
1 100746 M6 Flat Washer Blk Zn
$1.81
EA
2 100558 M6 Nyl Ins Domed Cap L/N Zc
$1.19
EA
4a 004886 Axiom PL Back Lateral Mount, Swing Away, Right
$40.76
EA
4b 004887 Axiom PL Back Lateral Mount, Swing Away, Left
$40.76
EA
5 104031 1/4-20 X 3/8 Stainless Button Head Cap Screw
$3.50
EA
6 104488 Lateral, Adjustable Thin Link Swingaway Mount
$256.90
EA
7a 122140 Axiom Custom Back Lateral Pad 3X4 Flat Pair Kit
$249.90
EA
7a 122141 Axiom Custom Back Lateral Pad 3X4 Flat Single Kit
$127.50
EA
7b 122142 Axiom Custom Back Lateral Pad 4X5 Flat Pair Kit
$249.90
EA
7b 122143 Axiom Custom Back Lateral Pad 4X5 Flat Single Kit
$127.50
EA
7c 122144 Axiom Custom Back Lateral Pad 3X4 Curved Pair Kit
$249.90
EA
7c 122145 Axiom Custom Back Lateral Pad 3X4 Curved Single Kit
$127.50
EA
7d 122146 Axiom Custom Back Lateral Pad 4X5 Curved Pair Kit
$249.90
EA
7d 122147 Axiom Custom Back Lateral Pad 4X5 Curved Single Kit
$127.50
EA
8 102803 Washer Flat .250 X .500 X .027 Hx Blz
$1.81
EA
9 104017 1/4-20 X 1/2 Stainless Button Head Cap Screw
$3.50
EA
