Axiom Back

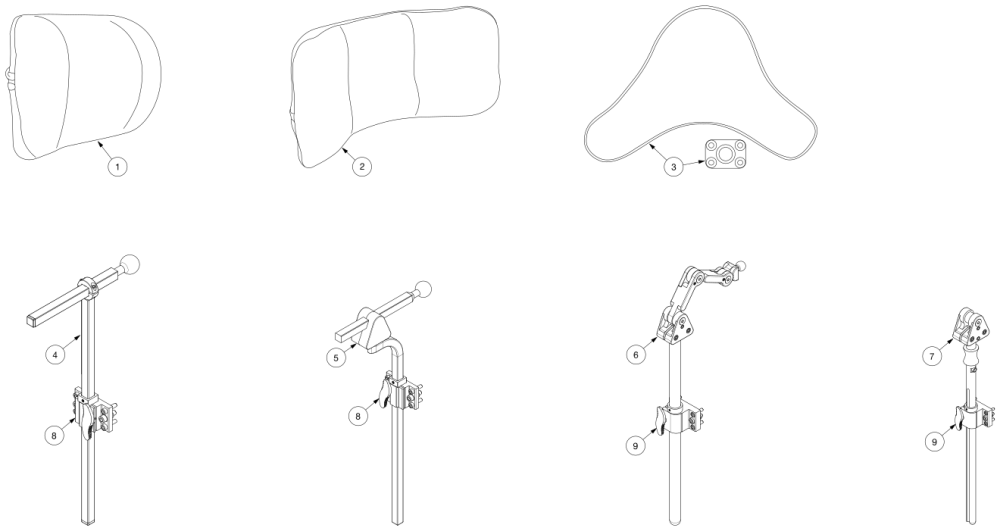

Name: Axiom Back: (discontinued) Axiom Headrest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 4a | HDR001 | Comfort Plus Headrest 8" with Standard Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 1b, 4a | HDR002 | Comfort Plus Headrest 10" with Standard Straight Back Mount Hardware with Ball (E0955, E1028) | N/A | EA | Please Call | |
| 1c, 4a | HDR003 | Comfort Plus Headrest 14" with Standard Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 2a, 4a | HDR007 | Tri-Comfort Plus Headrest 14" and Ring Only with Standart Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028)- If you are replacing a headrest that was received prior to January 2023, you will need to order 119840 and 109751. If you are replacing a headrest that was received after January 2023, this kit will fulfill your needs. | If you are replacing a headrest that was received prior to January 2023, you will need to order 119840 and 109751. If you are replacing a headrest that was received after January 2023, this kit will fulfill your needs. | N/A | EA | Please Call |
| 2b, 4a | HDR008 | Tri-Comfort Plus Headrest 19" and Ring Only with Standart Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028)- If you are replacing a headrest that was received prior to January 2023, there no longer is a replacement. The only alternative is to submit a request through ACS for a custom headrest. If you are replacing a headrest that was received after January 2023, this kit will fulfill your needs. | If you are replacing a headrest that was received prior to January 2023, there no longer is a replacement. The only alternative is to submit a request through ACS for a custom headrest. If you are replacing a headrest that was received after January 2023, this kit will fulfill your needs. | N/A | EA | Please Call |
| 3a, 4b | HDR004 | Small All Positioning Headrest Pad and Ring Only with Standart Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3b, 4b | HDR005 | Medium All Positioning Headrest Pad and Ring Only with Standart Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3c, 4b | HDR006 | Large All Positioning Headrest Pad and Ring Only with Standard Straight Back Mount Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 1a, 5a | HDR009 | Comfort Plus Headrest 8" with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 1c, 5a | HDR010 | Comfort Plus Headrest 10" with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 1e, 5a | HDR011 | Comfort Plus Headrest 14" with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 2a, 5a | HDR015 | Tri-Comfort Plus Headrest 14” with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 2b, 5a | HDR016 | Tri-Comfort Plus Headrest 19” with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 3a, 5b | HDR012 | Small All Positioning Headrest Pad and Ring Only with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3b, 5b | HDR013 | Medium All Positioning Headrest Pad and Ring Only with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3c, 5b | HDR014 | Large All Positioning Headrest Pad and Ring Only with Multi Axis Removable Hardware with Horizontal Bar with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 1b, 6a | HDR017 | Comfort Plus Headrest 8" with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 1d, 6a | HDR018 | Comfort Plus Headrest 10" with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 1f, 6a | HDR019 | Comfort Plus Headrest 14" with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 2a, 6a | HDR023 | Tri-Comfort Plus Headrest 14” with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 2b, 6a | HDR024 | Tri-Comfort Plus Headrest 19” with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028) | N/A | EA | Please Call | |
| 3a, 6b | HDR020 | Small All Positioning Headrest Pad and Ring Only with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3b, 6b | HDR021 | Medium All Positioning Headrest Pad and Ring Only with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 3c, 6b | HDR022 | Large All Positioning Headrest Pad and Ring Only with Headrest Hardware with Ball with Attaching Hardware (E0955, E1028)- Includes 17mm ball hardware | Includes 17mm ball hardware | N/A | EA | Please Call |
| 1a | 119837 | Comfort Soft Headrest 8" (Black Neoprene) with Headrest Hardware Pad Interface Mount, 1" Ball- Replaced Comfort Plus Headrests 103063 and 104193 | Replaced Comfort Plus Headrests 103063 and 104193 |
$205.29
|
EA |
|
| 1b | 119838 | Comfort Soft Headrest 10" (Black Neoprene) with Headrest Hardware Pad Interface Mount, 1" Ball- Replaced Comfort Plus Headrests 102698 and 104191 | Replaced Comfort Plus Headrests 102698 and 104191 |
$205.29
|
EA |
|
| 1c | 119839 | Comfort Soft Headrest 14" (Black Neoprene) with Headrest Hardware Pad Interface Mount, 1" Ball- Replaced Comfort Plus Headrest 104189 | Replaced Comfort Plus Headrest 104189 |
$205.29
|
EA |
|
| 2a | 104907 | Medium Tri Comfort Headrest Pad (TCP205) (E0955)- If you are replacing a headrest that was received prior to January 2023 or a 1" Ball Mount is present / needed, you will need to order 119840. | If you are replacing a headrest that was received prior to January 2023 or a 1" Ball Mount is present / needed, you will need to order 119840. | N/A | EA | Please Call |
| 2a | 119840 | Tri-Soft Headrest 14" (Black Neoprene) with Headrest Hardware Pad Interface Mount, 1" Ball |
$218.10
|
EA |
|
|
| 2b | 104906 | Large Tri Comfort Headrest Pad (TCP105) (E0955)- If you are replacing a headrest that was received prior to January 2023, there no longer is a replacement. The only alternative is to submit a request through ACS for a custom headrest. If you are replacing a headrest that was received after January 2023, this headrest will fulfill your needs. | If you are replacing a headrest that was received prior to January 2023, there no longer is a replacement. The only alternative is to submit a request through ACS for a custom headrest. If you are replacing a headrest that was received after January 2023, this headrest will fulfill your needs. | N/A | EA | Please Call |
| 3a | 104103 | Small All Positioning Headrest Pad Only Includes Ring (AP250) (E0955) | N/A | EA | Please Call | |
| 3b | 104104 | Medium All Positioning Headrest Pad Only Includes Ring (AP350) (E0955) | N/A | EA | Please Call | |
| 3c | 104105 | Large All Positioning Headrest Pad Only Includes Ring (AP450) (E0955) | N/A | EA | Please Call | |
| 4a | 109751 | Standard Straight Mounting Hardware w/ 1” Mounting Ball (HMO400) (E1028)- Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | N/A | EA | Please Call |
| 4b | 109752 | Standard Straight Mounting Hardware w/ 17mm Mounting Ball (HMO400-17) (E1028)- Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | N/A | EA | Please Call |
| 5a | 109765 | Multi Axis Removable Hardware w/ 1” Mounting Ball (HMO475) (E1028)- Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | N/A | EA | Please Call |
| 5b | 109766 | Multi Axis Removable Hardware w/ 17mm Mounting Ball (HMO475-17) (E1028)- Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | N/A | EA | Please Call |
| 6a | 109769 | Link Style Hardware w/ 1” Mounting Ball (TWB480-1) (E1028)- Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | N/A | EA | Please Call |
| 6b | 109770 | Link Style Hardware w/ 17mm Mounting Ball (TWB480-17MM) (E1028)- Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | Compatible with All Positioning headrest pads (104103, 104104 & 104105) and Tri Comfort headrest pads AFTER January 2023 | N/A | EA | Please Call |
| 6c | 109932 | Link Style Hardware w/ 1” Mounting Ball and Split Ring (TWB480) (E1028)- Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | Compatible with Comfort Plus headrest pads (Comfort Soft Replacement Pads) and Tri Comfort headrest pads (Tri-Soft Replacement Pads) | N/A | EA | Please Call |
| 7 | HDR100 | Headrest Flip Down Mount (E1028)- Compatible with 109769, 109770 & 109932 headrest mounting hardware | Compatible with 109769, 109770 & 109932 headrest mounting hardware | N/A | EA | Please Call |
| 8 | 104501 | Seat Back Mount/Headrest Hardware for 1/2" Square Tubing (K0108)- Compatible with 109765, 109766, 109751 & 109752 headrest mounting hardware | Compatible with 109765, 109766, 109751 & 109752 headrest mounting hardware |
$61.15
|
EA |
|
| 9 | 104502 | Headrest Hardware, Back Mount, for Link Style Hardware (K0108)- Compatible with 109769, 109770 & 109932 headrest mounting hardware | Compatible with 109769, 109770 & 109932 headrest mounting hardware |
$66.39
|
EA |
|
| UMP | Universal Mounting Plate (PAIR) (K0108)- Used with third party headrests to attach to an Axiom Back | Used with third party headrests to attach to an Axiom Back |
$60.03
|
EA |
|
|
| 106092 | Headrest Hardware Pad Interface Mount, 1" Ball- Used with Axiom Headrest Pads and 1" Ball Mount Hardware | Used with Axiom Headrest Pads and 1" Ball Mount Hardware |
$43.47
|
EA |
|
|
| 109305 | Headrest Hardware, Split Ring, 1" Ball- Used with Axiom Headrest Pads and 1" Ball Mount Hardware | Used with Axiom Headrest Pads and 1" Ball Mount Hardware |
$43.47
|
EA |
|
