Axiom Back Replacement Parts by Ki Mobility

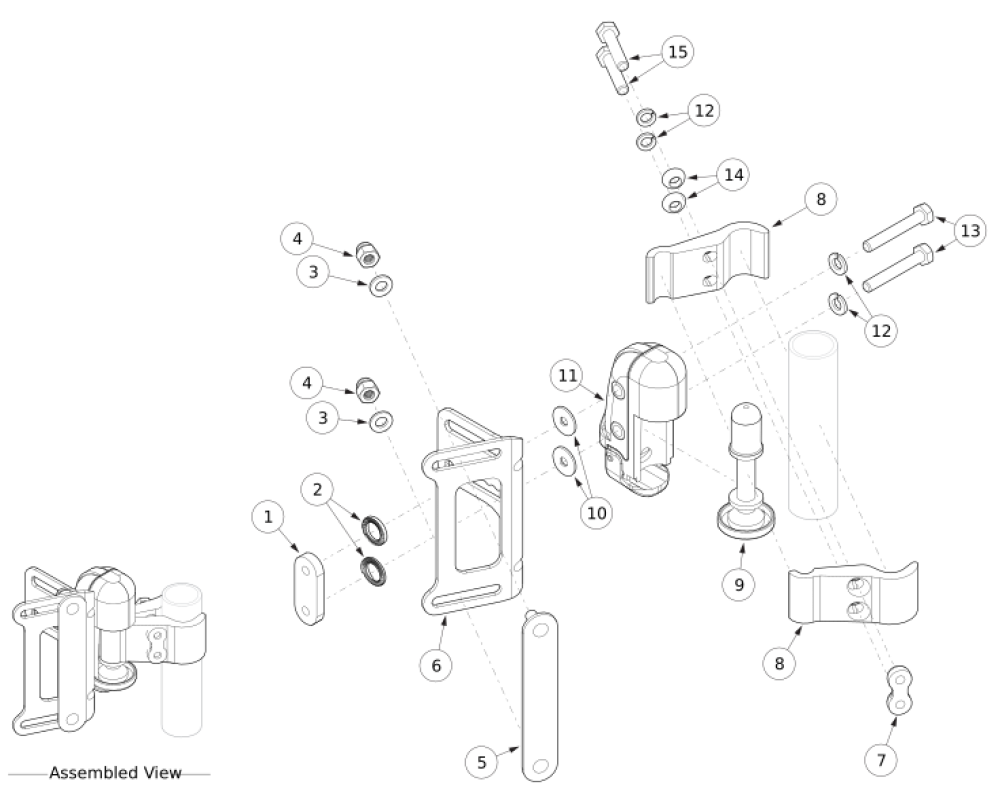

Name: Axiom Back: (discontinued) Axiom Dex Hardware
Manufacturer: Ki Mobility

(Click on image to enlarge)

New DEX Hardware launched 5/30/23

Attachments:

Pos.	Part #	Description	Remarks	Price	UOM	Buy
1 - 15a, 15b	108263	DEX Hardware (Pair) (Original DEX Hardware)		$365.69	EA
1 - 5, 6a, 6b, 10 - 13	108266	DEX Hardware Mount Housing Assembly (Pair) (Original DEX Hardware)		$168.78	EA
1 - 6a, 10 - 13	108268	DEX Hardware Mount Housing Assembly (Right) (Original DEX Hardware)		$84.39	EA
1 - 5, 6b, 10 - 13	108267	DEX Hardware Mount Housing Assembly (Left)		N/A	EA	Please Call
7 - 9, 12, 14, 15a, 15b	108264	DEX Hardware Mount Post Assembly (Pair)		$203.81	EA
7 - 9, 12, 14, 15a, 15b	108265	DEX Hardware Mount Post Assembly (Each)		$102.49	EA
1	004686	Axiom Back Nut Plate 1" Spacing		$11.25
2	107325	Spring, Disc, Serr, .413IDx.63ODx.059T		$6.41
3	100746	M6 Flat Washer Blk Zn		$1.81	EA
4	100558	M6 Nyl Ins Domed Cap L/N Zc		$1.19	EA
5	004688	Axiom Back Mount Stud Plate		$23.29
6a	005475	Axiom Back Mount Bracket Right		$17.47	EA
6b	005474	Axiom Back Mount Bracket Left		$17.47	EA
7	005476	Nut, Dual, Sr.25, M6, .60Sp		$40.76	EA
8	005472	Axiom Back Mount Clamp		$34.94	EA
9	005469	Axiom Back Mount Post		$34.94	EA
10	101853	M6 Washer Blk Zn		$0.61	EA
11	005477	Axiom Back Mount Housing Sub Assembly (Original DEX Hardware)- Replaced kit 109280	Replaced kit 109280	$50.64
12	101835	M6 Lock Washer Blk Zn		$0.61	EA
13	101825	M6 x 40 HHCS Blk Zn		$1.19	EA
14	003810	Washer, Spher, 10Mm		$11.65
15a	100860	M6 X 35 Hhcs P/Thd Zc		$1.81	EA
15b	101824	M6 X 30 Hhcs Blk Zn		$2.41	EA
